EL856HSP K24 Attachment
Note:
Custom Cut to Length Chain Also Available
SKU: 4947-EN-EL856HSP-K24
Item is in stockOnly 0 left in stockItem is out of stock
Item is unavailable
Login to Request a Quote
EL856HSP K24 Attachment Features
EL856HSP K24 Attachment Specifications
EL856HSP K24 attachment is manufactured from high-strength steel alloys and is a full-length bucket elevator chain attachment for bucket elevating applications. It is typically supplied on the EL856HSP chain on every other pitch, but we can supply these attachments assembled within the chain in any configuration required for the application. For additional information or to get a quote on the EL856HSP K24 attachment chain for bucket elevator applications contact our customer support team and we will be happy to assist you.

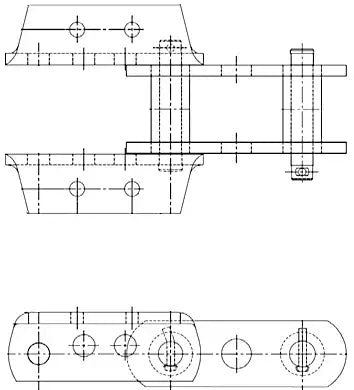

EL856HSP K24 Attachment
- Chain Size: EL856HSP
- Attachment Type: K24
- Attachment Hole Transverse Pitch (A): 7.25"
- Center of Pin To Attachment Hole (B): 1.75"
- Pitch Line to Top of Attachment (C): 1.88"
- Attachment Hole (D): 0.69"
- Attachment Hole Pitch (E): 2.50"
- Overall Attachment Width (F): 9.38"
- Length of Attachment Plate (H): 6.91"
- Plate Thickness (T): 0.50"
- Weight: 27.5 LBS/ Ft
- Chain Size: EL856HSP
- Attachment Type: K24
- Attachment Hole Transverse Pitch (A): 7.25"
- Center of Pin To Attachment Hole (B): 1.75"
- Pitch Line to Top of Attachment (C): 1.88"
- Attachment Hole (D): 0.69"
- Attachment Hole Pitch (E): 2.50"
- Overall Attachment Width (F): 9.38"
- Length of Attachment Plate (H): 6.91"
- Plate Thickness (T): 0.50"
- Weight: 27.5 LBS/ Ft
