WS5157H Bucket Elevator Chain | Elevator Chain
Note:
Custom Cut to Length Chain Also Available
SKU: 4947-EN-WS5157H-CHAIN
Item is in stockOnly 0 left in stockItem is out of stock
Item is unavailable
Login to Request a Quote
WS5157H Bucket Elevator Chain | Elevator Chain Features
WS5157H Bucket Elevator Chain | Elevator Chain Specifications
WS5157H chain is a high-strength welded steel conveyor chain utilized in a variety of bucket elevator and conveyor applications around the world. Our WS5157H chain is made from premium-grade alloy steels that have undergone specific heat-treats to produce a chain with the maximum working life, the wear surfaces of the chain have been hardened to give it a maximum wear resistance. For additional information or to get a quote on the WS5157H chain contact our customer support team and we will be happy to assist you!

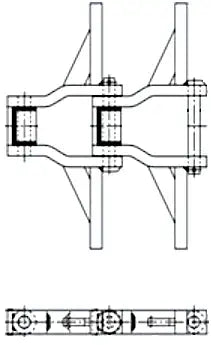

WS5157H Chain Dimensions
- Chain Size: WS5157H
- Pitch (A): 6.050"
- Inside Width (B): 3.000"
- Barrel Diameter (C): 1.750"
- Plate Height (D): 2.500"
- Plate Thickness (E/F): 0.625"
- Pin Diameter (G): 1.125"
- Pin Length (H): 6.875"
- Tensile Strength: 180,000 LBS
- Max. Recommended Working Load: 18,200 LBS
- Chain Size: WS5157H
- Pitch (A): 6.050"
- Inside Width (B): 3.000"
- Barrel Diameter (C): 1.750"
- Plate Height (D): 2.500"
- Plate Thickness (E/F): 0.625"
- Pin Diameter (G): 1.125"
- Pin Length (H): 6.875"
- Tensile Strength: 180,000 LBS
- Max. Recommended Working Load: 18,200 LBS
