EL857HSP K44 Attachment

EL857HSP K44 attachment is manufactured from high-strength steel alloys and is a full-length bucket elevator chain attachment for bucket elevating applications. It is typically supplied on the EL857HSP chain on every other pitch, but we can supply these attachments assembled within the chain in any configuration required for the application. For additional information or to get a quote on the EL857HSP K44 attachment chain for bucket elevator applications contact our customer support team and we will be happy to assist you.

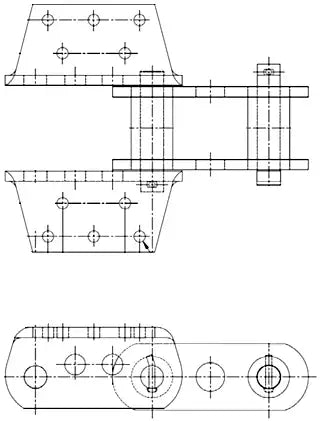

EL857HSP K44 Attachment

• Chain Size: EL857HSP
• Attachment Type: K44
• Attachment Hole Transverse Pitch (A): 7.00"
• Center of Pin To Attachment Hole (B): 1.25"
• Pitch Line to Top of Attachment (C): 2.50"
• Attachment Hole (D): 0.56"
• Attachment Hole Pitch (E): 3.50"
• Overall Attachment Width (F): 14.00"
• Attachment Hole Transverse Pitch (G): 12.00"
• Length of Attachment Plate (H): 5.50"
• Center of Pin to Attachment Hole (J): 1.25"
• Attachment Hole Pitch (K): 3.50"
• Plate Thickness (T): 0.50"
• Weight: 38 LBS/ Ft
