EL857HSP Bucket Elevator Chain | EL857HSP Elevator Chain

EL857HSP bucket elevator chains are designed with specific features that set the bar in the elevating industry when it comes to the chain its self. The consistent increase in demand has leed to an increase in bucket elevator productivity, which inevitably lead to the need for a chain more capable and higher performing than its peers. The EL857HSP elevator chain can meet these needs and demands while also interchanging with common bucket elevator chains produced by other manufactures. HSP series chains are manufactured from a consistent alloy steel construction for maximum strength and wear resistance, also having special through-hardened pins and induction hardened pins for the maximum pin life and strength capacity. The components of the chain are assembled in a way that produces controlled interference fitment for increasing overall life and endurance, additionally, HSP chains have 20-35% higher tensile strengths than their crossovers. EL857HSP chain is equipped with full-length bucket attachments on both sizes for the best holding and carrying capacity. For additional information or to get a quote on bucket elevator chains and components contact our customer service team and we will be happy to assist you.

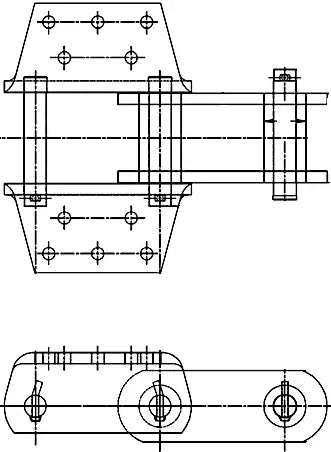

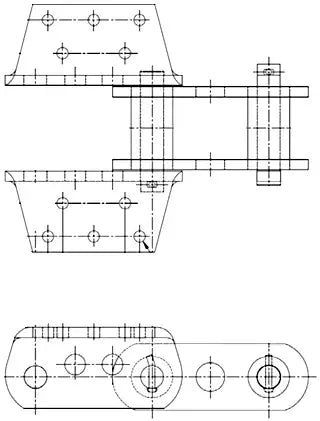

EL857HSP Elevator Chain Dimensions

• Chain Size: EL857HSP
• Style: B
• Pitch (P): 6"
• Base Chain Maximum Width (A): 6.44"
• Width Between Inner Plates (K): 3"
• Plate Thickness (T): 0.50"
• Plate Height (F): 3.25"
• Sidebar Heat-Treat: Through Hardened
• Pin Diameter (G): 1.00"
• Pin Heat-Treat: Through Hardened and Induction Hardened
• Bushing LTB (D): 4.00"
• Bushing Diameter (I): 1.75"
• Bushing Heat-Treat: Case Hardened
