6684R Bucket Elevator Chain | Elevator Chain Features
6684R Bucket Elevator Chain | Elevator Chain Specifications
6684R bucket elevator chain is designed with full-length K-type attachments and is apart of the 6000-series bucket elevator chains. It is manufactured from high-strength steel alloys and is available with sealed joints as well as with components that are specially coated for certain applications. 6684R bucket elevator chains are found in elevators all around the world and have been one of the bucket elevating chain industries standard for a chain for a number of years. For additional information or to get get a quote on the 6684R chain contact our customer service team and we will be happy to assist you!

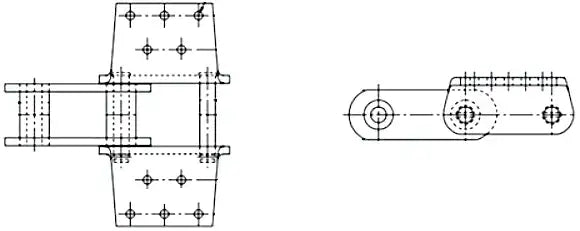

6684R Chain Dimensions
- Chain Size: 6684R
- Pitch (A): 7.000"
- Inside Width (B): 3.750"
- Roller Diameter (C): 2.500"
- Sidebar Width (D): 4.000"
- Sidebar Thickness (E/F): 0.625"
- Pin Diameter (G): 1.375"
- Tensile Strength: 270,000 LBS
- Max. Recommended Working Load: 24,000 LBS
- Chain Size: 6684R
- Pitch (A): 7.000"
- Inside Width (B): 3.750"
- Roller Diameter (C): 2.500"
- Sidebar Width (D): 4.000"
- Sidebar Thickness (E/F): 0.625"
- Pin Diameter (G): 1.375"
- Tensile Strength: 270,000 LBS
- Max. Recommended Working Load: 24,000 LBS
