477 A22 Attachment

Specialty Chain > Pintle Chain > 400 Class Pintle Chain > 477 Pintle Chain

477 A22 Attachment

Note: Custom Cut to Length Chain Also Available
SKU: 477-A22-ATTACHMENT
Item is in stockOnly 0 left in stockItem is out of stock Item is unavailable

Login to Request a Quote

<p>Don’t see what you need?</p>

Don’t see what you need?

Call us

Buy it With:

 [{"variant_id":"51714593784175" , "metafield_value":""}]
477 A22 Attachment Features
477 A22 Attachment Specifications
This 477 A22 attachment is manufactured specifically for 477 pintle chain. We can supply A22 attachment connecting links or 477 pintle chain with A22 attachments assembled in any configuration needed. This 477 A22 attachment is manufactured using high quality precision components to increase strength, performance, and working life. To get a quote on 477 A22 attachments or complete assembled chain please contact us and we will be happy to assist you.

Dimensions:

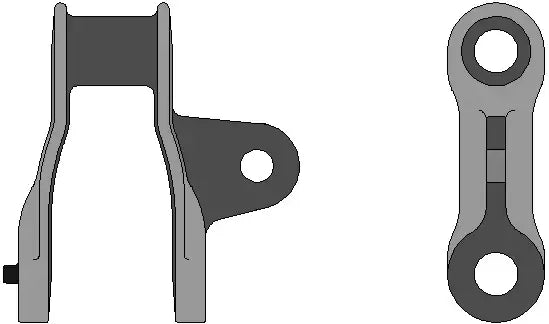

477 A22 Attachment
  • Attachment Number: 477 A22
  • Pitch: 2.308"
  • Bold Diameter (D): 0.31"
  • Hole Diameter (D): 0.34"
  • Dimension (G): 1.94"
  • Dimension (K): 1.12"
  • Dimension (N): 1.50"
  • Dimension (R): 0.88"
  • Dimension (T): 0.25"
  • Weight Per Foot: 2.5 LBS

Phone: (407) 347-3519
Email: sales@usarollerchain.com
  • Attachment Number: 477 A22
  • Pitch: 2.308"
  • Bold Diameter (D): 0.31"
  • Hole Diameter (D): 0.34"
  • Dimension (G): 1.94"
  • Dimension (K): 1.12"
  • Dimension (N): 1.50"
  • Dimension (R): 0.88"
  • Dimension (T): 0.25"
  • Weight Per Foot: 2.5 LBS
