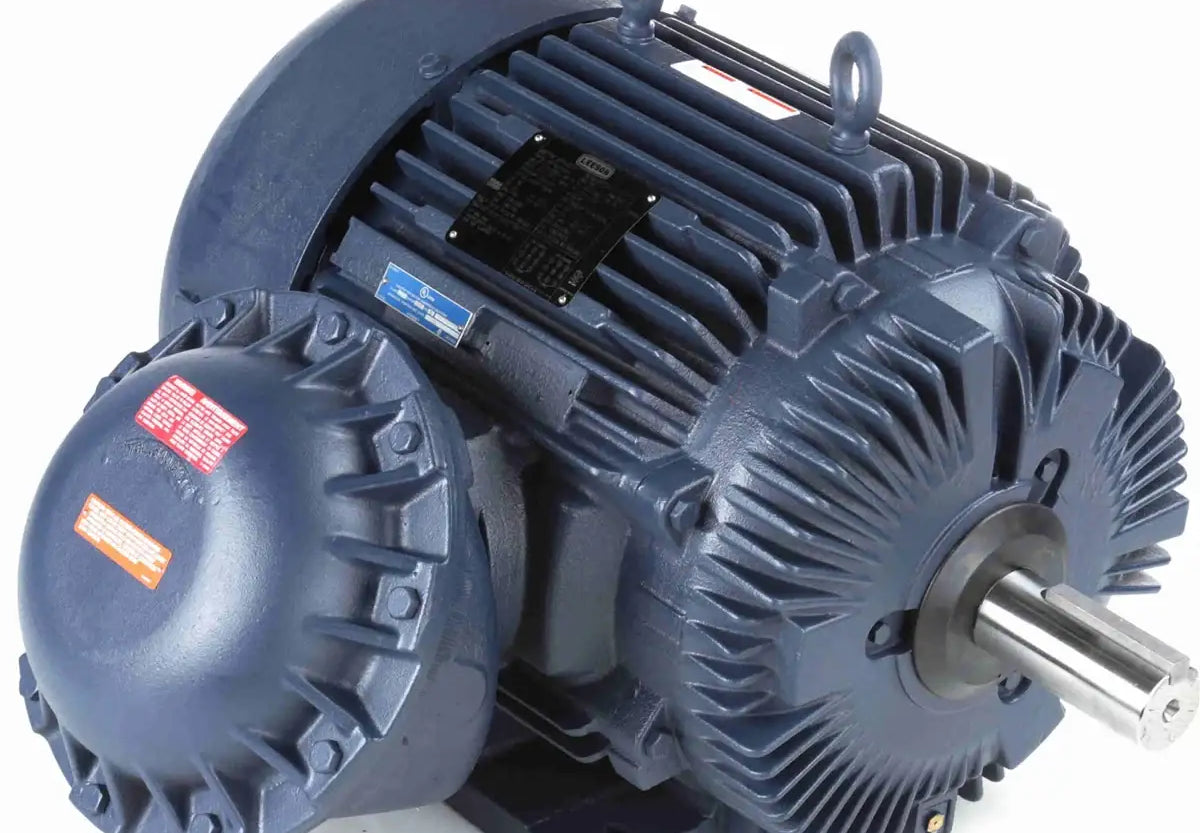

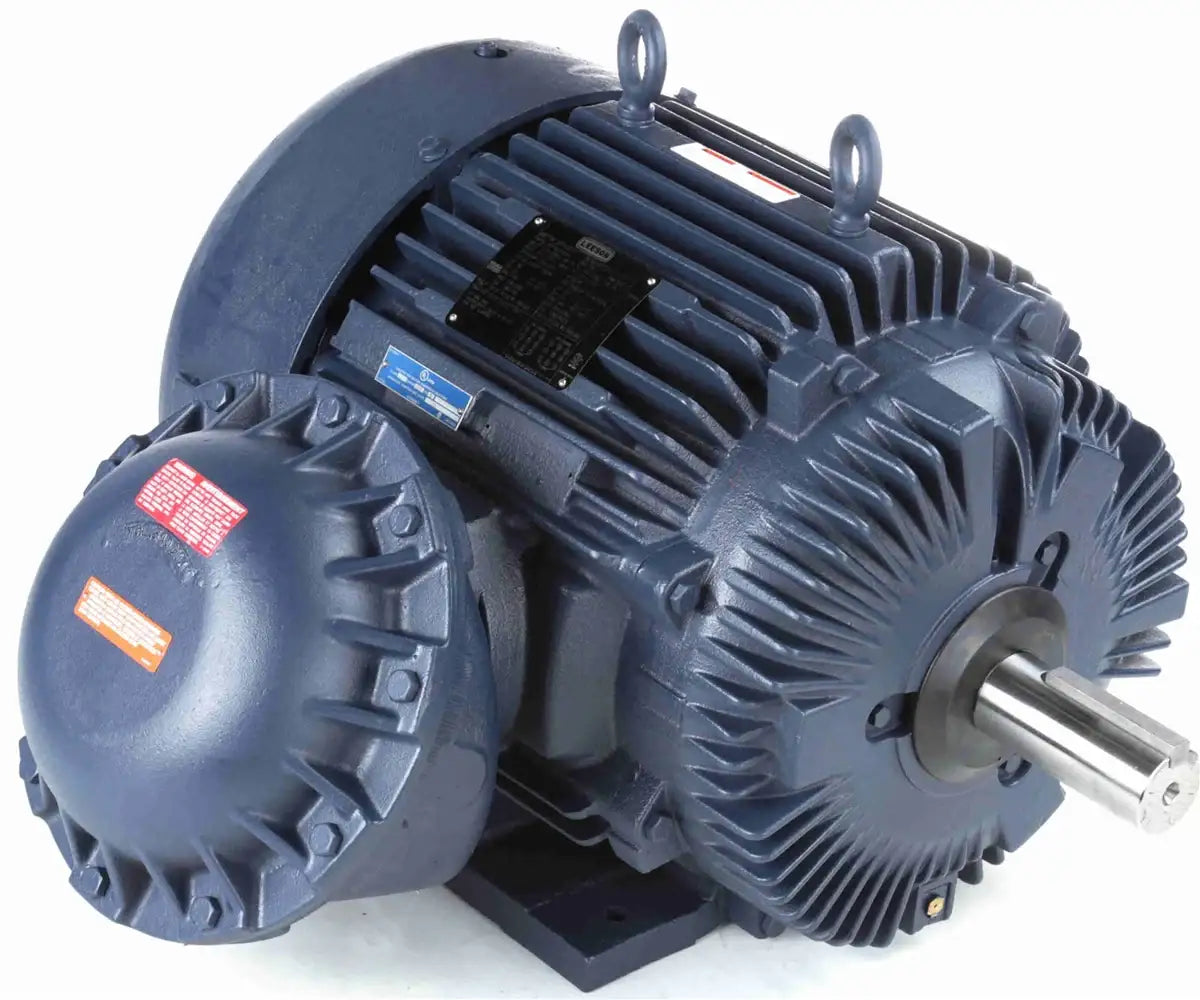

Leeson 300 HP Explosion Proof Motor 449T

Leeson 449TTGS14046 300 HP explosion proof electric motor is a three phase, 1800 RPM 449T frame size all cast iron rigid base motor. This hazardous application motor is rated for Division I and Division II, class I, groups C and D, as well as Class II Groups F and G. Being manufactured in accordance to National Electrical Manufacturers Association (NEMA) standard means that this electric motor will drop-in replace most of the common brands out there, and this motor even includes an explosion proof conduit box. More specifically, Leeson motors use a premium double-shielded ball bearing, has an industry leading warrantee, and meets all UL as well as CSA Safety Requirements. The 449TTGS14046 (catalog # G850818.00) explosion proof motor has a T-Stat for overload protection for additional safety and ease of mind. When making a selection of an explosion proof motor it is important to select a motor that is approved for use in the specific class or group that defines the hazardous environment the motor will run in, refer to "Explosion Proof Motor Classification" on our main explosion proof motor main page for more information. For additional information or to get a quote on a Leeson Three-Phase 300 HP Explosion Proof Electric Motor, 1800 RPM 449T frame size all cast iron rigid base motor please contact us and we will be happy to assist you.

Leeson 449TTGS14046 Explosion Proof Motor Specifications

• Download - 449TTGS14046 Motor Connection
• Download - 449TTGS14046 Motor Outline/ Drawing
• Download - 449TTGS14046 Motor Certification
• Download - 449TTGS14046 Motor Performance
• Download - 449TTGS14046 Motor Operation Manual
• Download - 449TTGS14046 Motor Complete Data Pack

449TTGS14046 General Information

HP	SYN RPM 60Hz	NEMA Frame	Catalog #	Model #	Weight (LBS)	Voltage	Overload Protection	F. L. AMPS @ 230V	% F.L. EFF.	Service Factor	Dimension (C)
