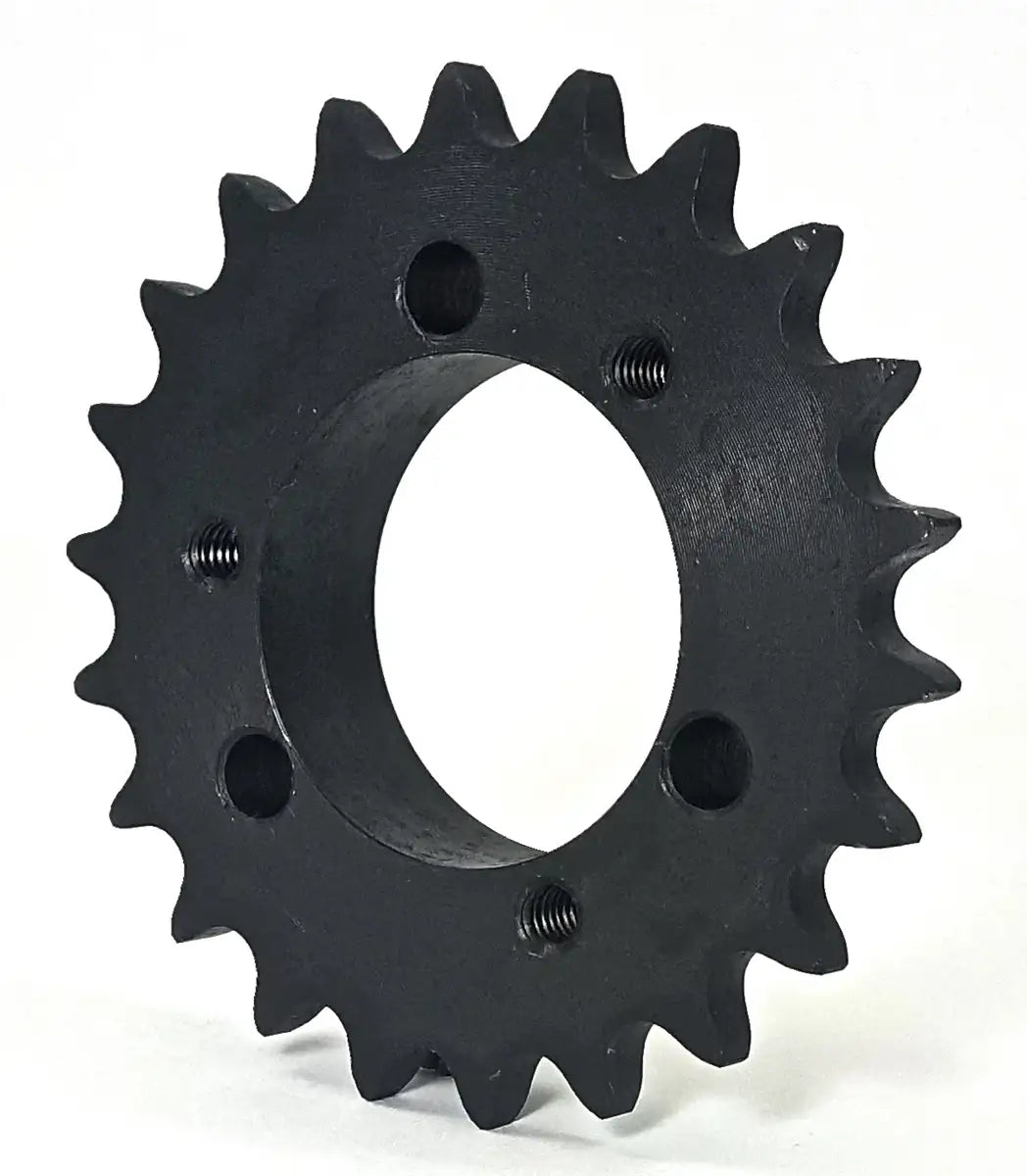

41SH20 Sprocket (QD Type)
Note:
Custom Cut to Length Chain Also Available
$27.99
SKU: 41SH20-SPROCKET
Item is in stockOnly 0 left in stockItem is out of stock
Item is unavailable
Login to Request a Quote
41SH20 Sprocket (QD Type) Features
41SH20 Sprocket (QD Type) Specifications
This 41SH20 sprocket is a durable, high quality, and precision sprocket that is manufactured to accept a SH bushing. Something that is notable about this sprocket is that it fully meets all ANSI Standards, which insures proper contact between the #41 roller chain and sprocket which prevents premature wear or breakage and this means that it will directly interchange with most other manufactures sprockets. This sprocket is also black oxide coated thus increasing resistance to the environment and will prevent early corrosion. 41SH20 sprockets are bored to accept a SH size QD bushing which, we also stock with a wide range of bore sizes. We also offer sprockets with finished bore configurations, and if you are needing a custom sprocket we have the capabilities on providing them within a fast lead time and at really great prices. For more information or large inquiry request please contact us and we will be happy to assist you.
Phone: (407) 347-3519
Email:sales@usarollerchain.com
41SH20 Sprocket Dimensions
- Sprocket Size: 41SH20
- Tooth Count: 20
- Bushing Size: SH
- Outside Diameter: 3.460"
- Pitch Diameter: 3.196"
- Hub Type: B
- Dimension (L1): 1-7/16"
- Dimension (L2): 1-7/16"
- Dimension (C): 2-11/16"
- Dimension (Y): 1-1/32"
- Dimension (G): 37/64"
- Dimension (X): 13/16"
- Dimension (T): 0.227"
- Sprocket Weight: 0.78 LBS
- Weight With Hub: 1.78 LBS
