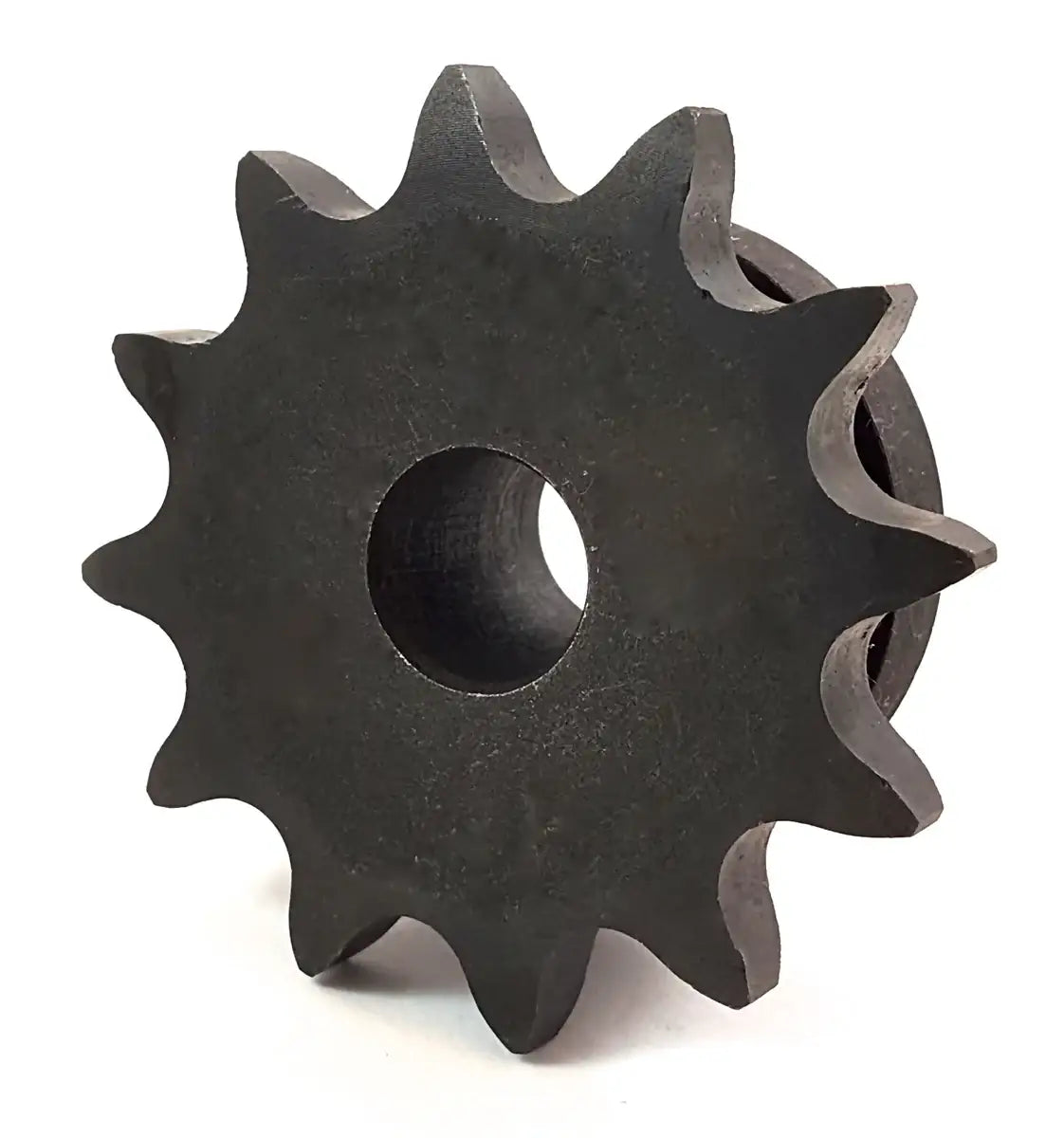

41B10 Sprocket With Stock Bore
Note:
Custom Cut to Length Chain Also Available
$12.99
SKU: 41B10-SPROCKET
Item is in stockOnly 0 left in stockItem is out of stock
Item is unavailable
Login to Request a Quote
41B10 Sprocket With Stock Bore Features
41B10 Sprocket With Stock Bore Specifications
This 41B10 sprocket is a durable, high quality, and precision sprocket with hardened teeth. Sprockets that have hardened teeth last longer and are much more durable than those that don't. Something else that is notable about this sprocket is that it fully meets all ANSI Standards, which insures proper contact between the #41 roller chain and sprocket thus preventing premature wear or breakage. This sprocket is also black oxide coated which increases resistance to the environment and will prevent early rust build up. 41B10 sprockets with a stock bore comes with the standard 1/2" ID hole with no keyway or set screws and can be easily machine bored to custom sizes. We also offer sprockets with finished bore configurations right off the shelf from stock, and if you are needing a custom bore sprocket we the capabilities on providing those to within a fast lead time and at really great prices.
Phone: (407) 347-3519
Email: sales@usarollerchain.com
41B10 Sprocket Dimensions
- Sprocket Size: 41B10
- Tooth Count: 10
- Outside Diameter: 1.840"
- Hub Type: B
- Bore Size: 1/2"
- Recommended Maximum: 3/4"
- Hub Diameter: 1-1/4"
- Length Thru Bore: 7/8"
- Weight: 0.27 LBS
Phone: (407) 347-3519
Email: sales@usarollerchain.com
- Sprocket Size: 41B10
- Tooth Count: 10
- Outside Diameter: 1.840"
- Hub Type: B
- Bore Size: 1/2"
- Recommended Maximum: 3/4"
- Hub Diameter: 1-1/4"
- Length Thru Bore: 7/8"
- Weight: 0.27 LBS
