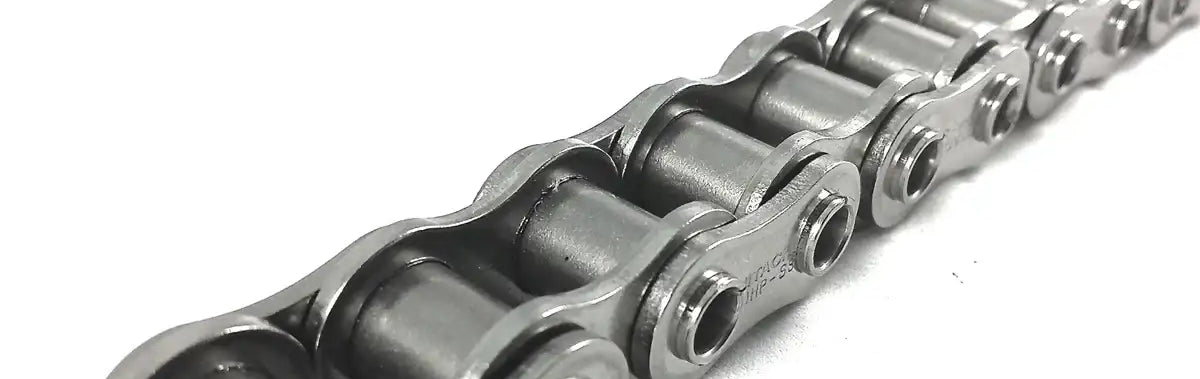

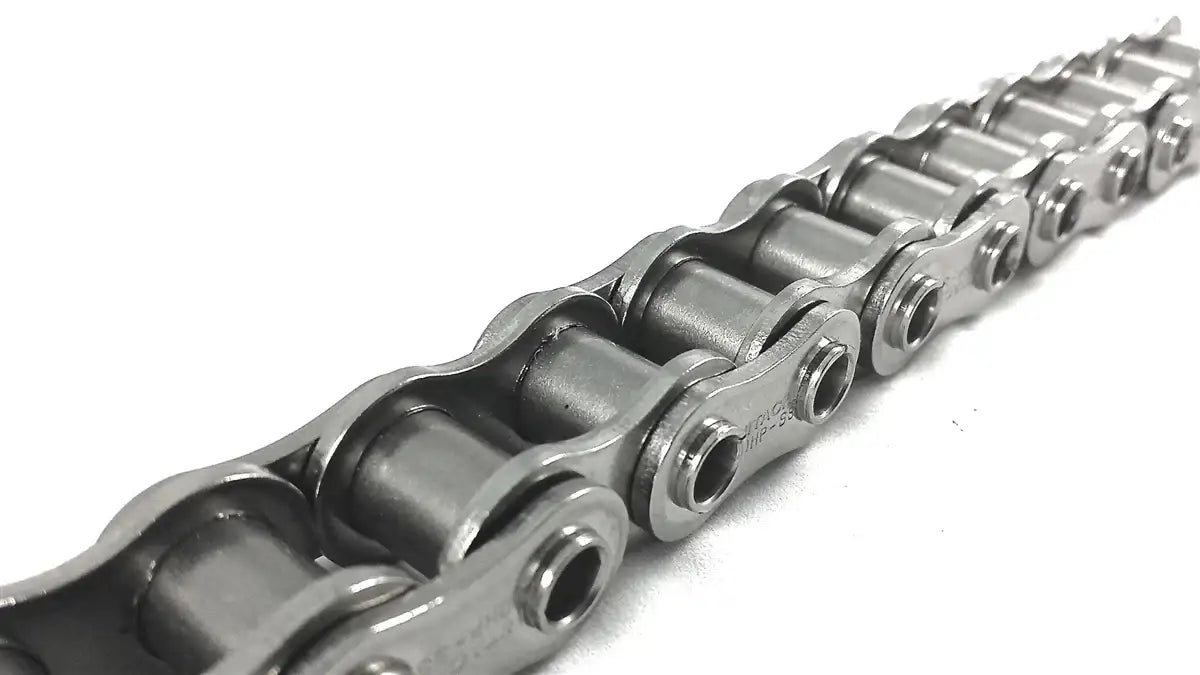

Premium 40 Stainless Steel Hollow Pin Chain - 10ft Box
Login to Request a Quote
40 stainless steel hollow pin chain is a highly versatile corrosion and abrasion-resistant 1/2" pitch ANSI chain made from 304-grade stainless steel. Our premium 40HPSS stainless chain is an excellent choice for food-grade packaging, conveying, scientific, and other applications. 40 stainless steel hollow pin roller chain is one of the most versatile power transmission chains on the market; this is due to the hollow pin design allowing for items to be affixed to the chain or through it with the 304SS material construction will enable it to operate where standard carbon steel chains couldn't. What truly separates our 40 stainless hollow pin chain from others is the superior precision tolerances of each component, factory pre-loading, and quality of 304SS used. The combination created a 40SSHP chain with an extended operating life, performance, and overall functionality. For more information or a quote on our 40 stainless steel hollow pin chain, contact our customer support team, and we will gladly assist you!
40SS Hollow Pin Chain Dimensions
- Chain Size: 40SSHP
- Pitch (P): 0.500"
- Roller diameter (R): 0.312"
- Width Between Inner Plates (O): 0.312"
- Hollow Pin OD (L): 0.222"
- Hollow Pin ID (I): 0.157"
- Overall Chain Width (V): 0.65"
- Overall Connecting Link width (X): 0.69"
- Plate Height (H): 0.47"
- Plate Thickness (T): 0.060"
- Weight: 0.4 LBS/ FT
- Chain Size: 40SSHP
- Pitch (P): 0.500"
- Roller diameter (R): 0.312"
- Width Between Inner Plates (O): 0.312"
- Hollow Pin OD (L): 0.222"
- Hollow Pin ID (I): 0.157"
- Overall Chain Width (V): 0.65"
- Overall Connecting Link width (X): 0.69"
- Plate Height (H): 0.47"
- Plate Thickness (T): 0.060"
- Weight: 0.4 LBS/ FT
