Power Transmission > Sprockets > Roller Chain Sprockets > Single Strand Roller Chain Sprockets > #40 Roller Chain Sprockets > #40 BTB Type Sprockets

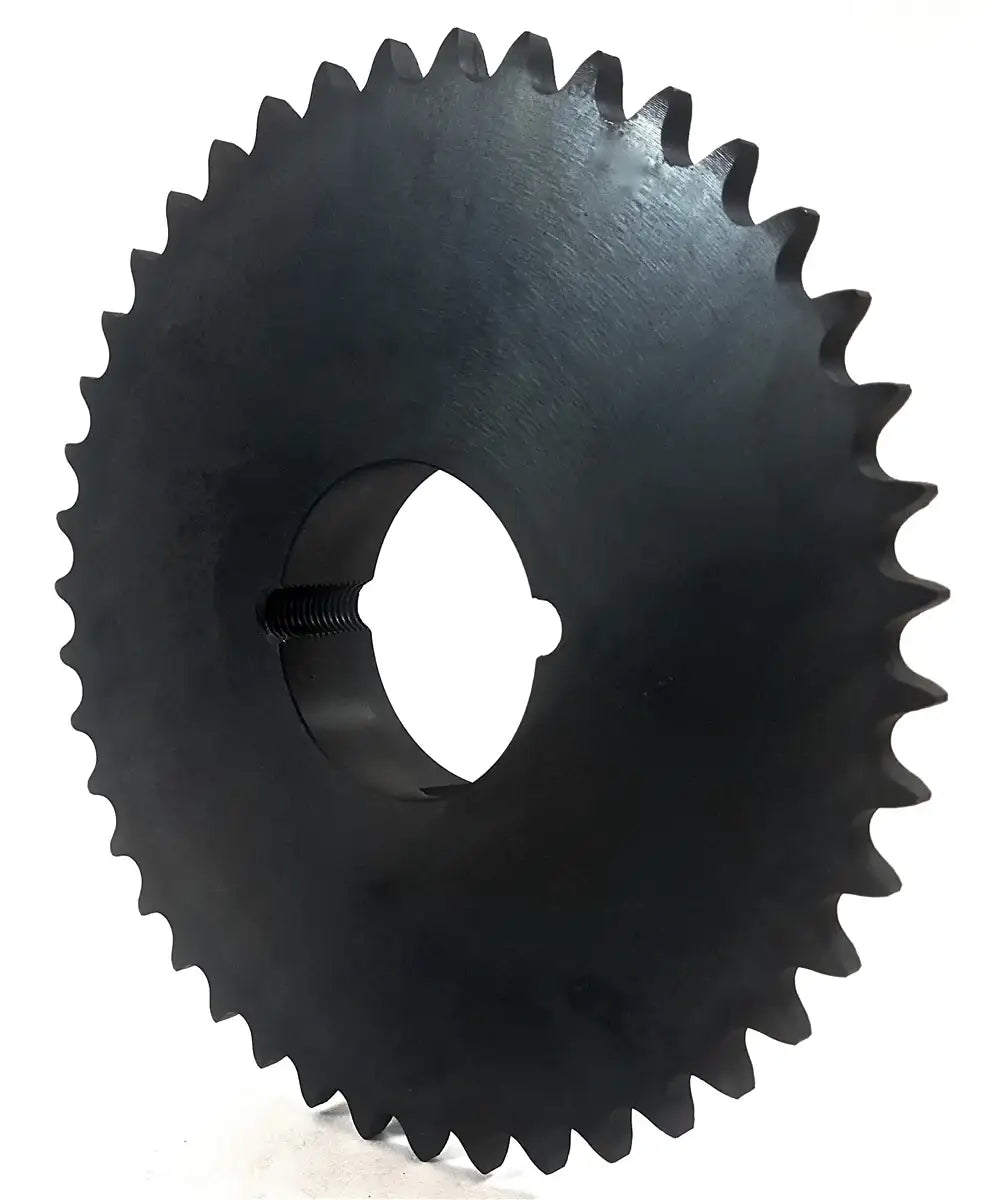

40BTB45 Sprocket (Taper Bushed)
Note:
Custom Cut to Length Chain Also Available
$97.99
SKU: 40BTB45-SPROCKET
Item is in stockOnly 0 left in stockItem is out of stock
Item is unavailable
Login to Request a Quote
40BTB45 Sprocket (Taper Bushed) Features
40BTB45 Sprocket (Taper Bushed) Specifications
This 40BTB45 sprocket is a durable, high quality, and precision sprocket that is manufactured to accept a 1610 bushing. Something that is notable about this sprocket is that it fully meets all ANSI Standards, which insures proper contact between the #40 roller chain and sprocket which prevents premature wear or breakage and this means that it will directly interchange with most other manufactures sprockets. This sprocket is also black oxide coated which increases resistance to the environment thus preventing early rust build up. 40BTB45 sprockets are made to accept a 1610 size taper bushing which we also stock with a wide range of bore sizes. We also offer sprockets with finished bore configurations, and if you are needing a custom bore sprocket we the capabilities on providing those to within a fast lead time and at really great prices. For more information or large inquiry request please contact us and we will be happy to assist you.
Dimensions:
Phone: (407) 347-3519
Email: sales@usarollerchain.com
Dimensions:
- Sprocket Size: 40BTB45
- Tooth Count: 45
- Bushing Size: 1610
- Outside Diameter: 7.451"
- Pitch Diameter: 7.168"
- Dimension (L): 1"
- Dimension (C): 3"
- Hub Type: B
- Sprocket Weight: 3.5 LBS
- Bushing Weight: 0.9 LBS
Email:
- Sprocket Size: 40BTB45
- Tooth Count: 45
- Bushing Size: 1610
- Outside Diameter: 7.451"
- Pitch Diameter: 7.168"
- Dimension (L): 1"
- Dimension (C): 3"
- Hub Type: B
- Sprocket Weight: 3.5 LBS
- Bushing Weight: 0.9 LBS
