Power Transmission > Sprockets > Idler Sprockets > Ball Bearing Idler Sprockets
40BB18H High-Performance Idler 5/8", USA Roller Chain
Note:
Custom Cut to Length Chain Also Available
SKU: 40BB18H-58-IDLER-SPROCKET
Item is in stockOnly 0 left in stockItem is out of stock
Item is unavailable
Login to Request a Quote
40BB18H High-Performance Idler 5/8", USA Roller Chain Features
40BB18H High-Performance Idler 5/8", USA Roller Chain Specifications

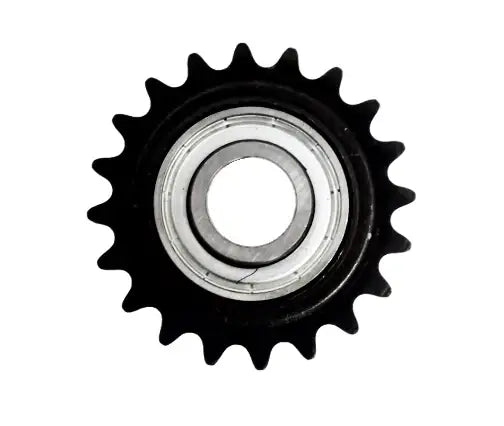

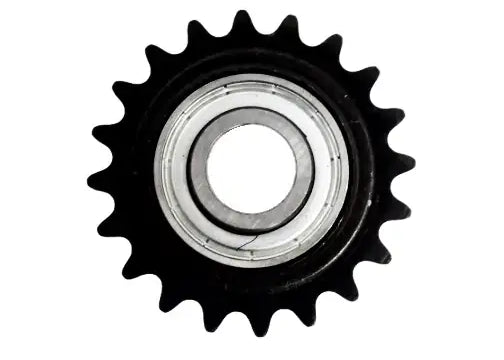

40BB18H idler sprocket is categorized as a ball bearing idler sprocket due to the ball bearing inserted. This 40BB18H idler sprocket features 18 hardened teeth, a high quality ball bearing with a 5/8" Bore, and fully meets all ANSI Standards. Additionally this 40BB18H idler sprocket was engineered to be extremely durable and high performance, along with being manufactured out of a high quality steel and components to create an idler sprocket with great performance and a long working life. To get a quote on 40BB18H idler sprockets or for more information please contact us and we will be happy to assist you.
40BB18H X 5/8" Idler Sprocket Dimensions
- Sprocket #: 40BB18H
- Number Of Teeth: 18
- Bearing Type: Ball Bearing
- Chain Size: #40
- Outside Diameter: 3.14"
- Bore Size: 5/8"
- Length Thru Bore: 0.72"
- Dimension (T): 0.284"
- Weight: 0.53 LBS
- Sprocket #: 40BB18H
- Number Of Teeth: 18
- Bearing Type: Ball Bearing
- Chain Size: #40
- Outside Diameter: 3.14"
- Bore Size: 5/8"
- Length Thru Bore: 0.72"
- Dimension (T): 0.284"
- Weight: 0.53 LBS
