Leeson 100 HP Explosion Proof Motor 405TS

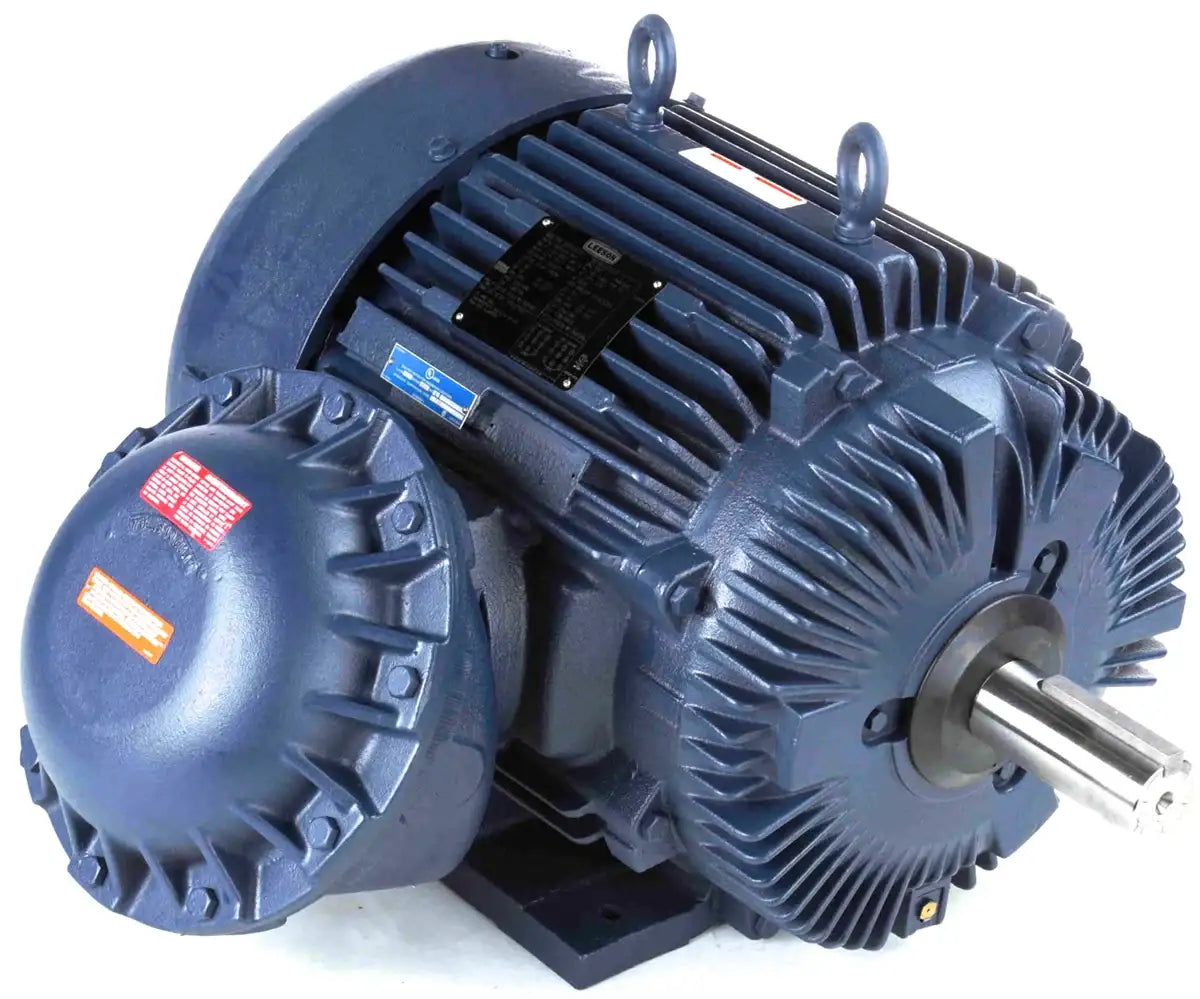

Leeson premium efficiency 405TSTGS16002 100 HP explosion proof electric motor is a three phase, 3600 RPM 405TS frame size all cast iron rigid base motor. This hazardous application motor is rated for Division I and Division II, class I, groups C and D, as well as Class II Groups F and G. Being manufactured in accordance to National Electrical Manufacturers Association (NEMA) standard means that this electric motor will drop-in replace most of the common brands out there, and this motor even includes an explosion proof conduit box. More specifically, Leeson motors use a premium double-shielded ball bearing, has an industry leading warrantee, and meets all UL as well as CSA Safety Requirements. The 405TSTGS16002 (catalog # 825108.00) explosion proof motor has a T-Stat for overload protection for additional safety and ease of mind. When making a selection of an explosion proof motor it is important to select a motor that is approved for use in the specific class or group that defines the hazardous environment the motor will run in, refer to "Explosion Proof Motor Classification" on our main explosion proof motor main page for more information. For additional information or to get a quote on a Leeson Three-Phase 100 HP Explosion Proof Electric Motor, 3600 RPM 405TS frame size all cast iron rigid base motor please contact us and we will be happy to assist you.
- Download - 405TSTGS16002 Motor Connection
- Download - 405TSTGS16002 Motor Outline/ Drawing
- Download - 405TSTGS16002 Motor Certification
- Download - 405TSTGS16002 Motor Performance
- Download - 405TSTGS16002 Motor Operation Manual
- Download - 405TSTGS16002 Motor Complete Data Pack
405TSTGS16002 General Information
|
UPC
|
Weight
|
Package Length
|
Package Width
|
Package Height
|
|---|---|---|---|---|
405TSTGS16002 Nameplate Information
|
Output HP
|
Frequency
|
Current
|
Service Factor
|
Efficiency
|
|---|---|---|---|---|
| Duty | Design Code | Frame | Thermal Protection | Drive End Bearing Size |
| UL | CE | Hazardous Location | Output KW | Voltage |
| Speed | Phase | Power Factor | Insulation Class | KVA Code |
| Enclosure | Ambient Temperature | Opp Drive End Bearing Size | CSA | IP Code |
Hazardous Location: EXP PROOF CL I GR C&D CL II GR F&G T3C
405TSTGS16002 Technical Information
| Electrical Type | Poles | Resistance Main | Motor Opperation |
|---|---|---|---|
| Opp Drive End Bearing | Shaft Type | Frame Length | Shaft Extension |
| Starting Method | Rotation | Mounting | Drive End Bearing |
| Frame Material | Overall Length | Shaft Diameter | Assembly/ Box Mounting |
405TSTGS16002 Speed Characteristics
| Curve-Point | Current (Amps) | Current (%) | Torque (ft-lbs) | (%) | Speed (RPM) | Rated Output (KW) | Power Factor (%) | Rated Output (HP) |
|---|---|---|---|---|---|---|---|---|
405TSTGS16002 Load Characteristics
| % of Rated Load | 0% | 25% | 50% | 75% | 100% | 125% | 150% | 175% | 200% |
|---|---|---|---|---|---|---|---|---|---|
| Current (Amps) | |||||||||
| Rated Output (KW) | |||||||||
| Efficiency (%) | |||||||||
| Power Factor (%) | |||||||||
| Speed (RPM) | |||||||||
| Temp. Rise @ FL | |||||||||
| Torque (ft-lbs) |
