Power Transmission > Sprocket & Pulley Bushings > Taper Lock Bushings > 4040 Taper Lock Bushings

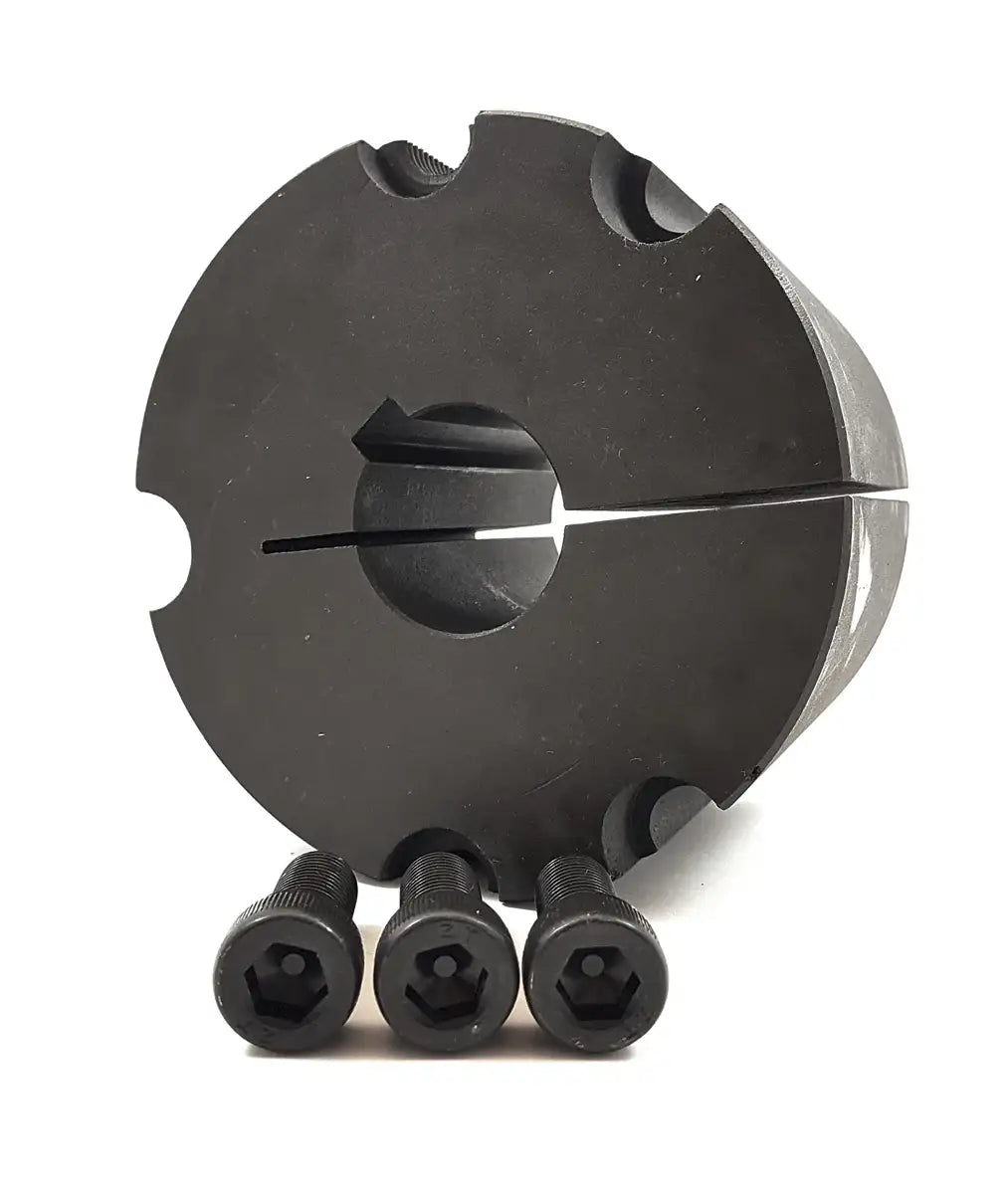

4040 Taper Lock Bushing X 100mm Bore
Note:
Custom Cut to Length Chain Also Available
$160.99
SKU: 4040-100MM-TAPER-BUSHING
Item is in stockOnly 0 left in stockItem is out of stock
Item is unavailable
Login to Request a Quote
4040 Taper Lock Bushing X 100mm Bore Features
4040 Taper Lock Bushing X 100mm Bore Specifications
This 4040 taper lock bushing is a high quality, durable, and dependable product that has been precisely manufactured to out-last and out-perform the competition. 4040 taper lock bushings are used in a wide range of applications including; belt pulleys, sprockets, drum pulleys, drive pulleys, tail pulleys, sheaves, and gears, which are items that we also offer! Additionally this bushing features a 100 millimeter bore with a standard keyway, for more information on 4040 taper lock bushings please contact us and we will be happy to assist you.
Dimensions:
Phone: (407) 347-3519
Email:sales@usarollerchain.com
See What All We Offer "Here"!
- Bushing Number: 4040
- Bore: 100mm
- Dimension (A): 5-3/4"
- Dimension (B): 4"
- Dimension (D): 5.54"
- Number Of Set Screws: 3
- Threads: 5/8"
- Length: 1-3/4"
- Dimension (G): 40°
- Wrench Torque: 1,700 LBS
- Weight: 14 LBS
Phone: (407) 347-3519
Email:
See What All We Offer "Here"!
- Bushing Number: 4040
- Bore: 100mm
- Dimension (A): 5-3/4"
- Dimension (B): 4"
- Dimension (D): 5.54"
- Number Of Set Screws: 3
- Threads: 5/8"
- Length: 1-3/4"
- Dimension (G): 40°
- Wrench Torque: 1,700 LBS
- Weight: 14 LBS
