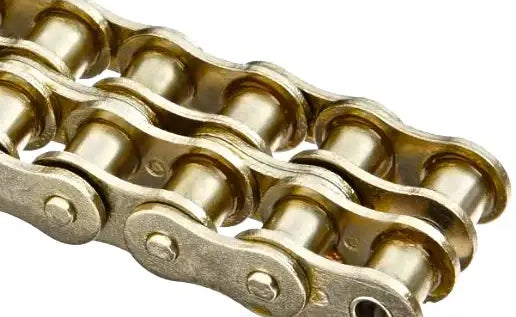

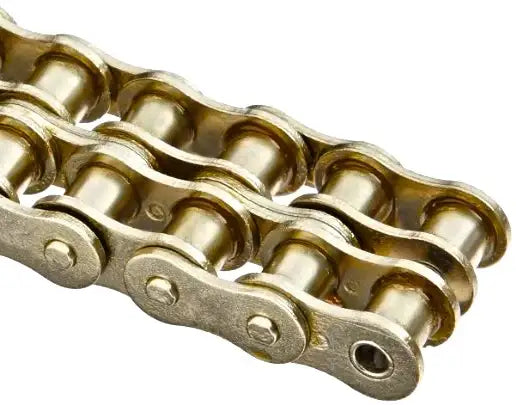

#40-2 Nickel Plated Roller Chain

#40-2 Nickel Plated Roller Chain

Note: Custom Cut to Length Chain Also Available
Product Code: 40-2-NICKEL-ROLLER-CHAIN
Shipping calculated at checkout.
Other Customers Viewed
40 Roller Chain Breaker | Made In USA 40 Chain Breaker - CB1
40 Roller Chain Breaker | Made In USA 40 Chain Breaker - CB1
$99.99
Login
Premium #40 Roller Chain Puller - CP1
Premium #40 Roller Chain Puller - CP1
$154.99
Login
#40-2 Nickel Plated Roller Chain Connecting Link (Master Link)
#40-2 Nickel Plated Roller Chain Connecting Link (Master Link)
Login

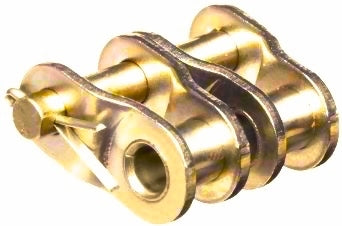

#40-2 Nickel Plated Offset Link
#40-2 Nickel Plated Offset Link
Login
View full details
Description
Specification
This #40-2 nickel plated roller chain offers high strength, durability, great performance, and conforms to all ANSI standards. The nickel plating on this chain has been done to each component before being assembled and then inspected to ensure a full coverage and a smooth surface to for the longest working life possible and to prevent chemical attack along with stress cracking. Nickel plated roller chain is very useful in humid and slightly corrosive applications where a normal roller chain will not hold up. #40-2 nickel plated roller chain will run on standard #40-2 sprockets and has the same dimensions as #40-2 roller chain. Additionally we offer a full line of #40-2 attachments, sprockets, and accessories!

Dimensions:

  • Chain Size: 40-2NP
  • Pitch (P): 0.500"
  • Roller Width (W): 0.313"
  • Roller Diameter (R): 0.313"
  • Plate Height (H): 0.463"
  • Plate Thickness (T): 0.060"
  • Pin Diameter (D): 0.156"
  • Chain Overall Width (F): 1.204"
  • Connecting Link Overall Width: 1.247"
  • Weight Per Foot: 0.85 LBS

Phone: (407) 347-3519
Email: sales@usarollerchain.com

Feature

  • High Quality Roller Chain
  • Nickel Plated
  • Corrosion Resistant
  • Fully Meets All ANSI Standards
  • Solid Rollers
  • Extremely Durable
Featured image
  • Chain Size: 40-2NP
  • Pitch (P): 0.500"
  • Roller Width (W): 0.313"
  • Roller Diameter (R): 0.313"
  • Plate Height (H): 0.463"
  • Plate Thickness (T): 0.060"
  • Pin Diameter (D): 0.156"
  • Chain Overall Width (F): 1.204"
  • Connecting Link Overall Width: 1.247"
  • Weight Per Foot: 0.85 LBS
