Metric 4SPZ224 Pulley 4-SPZ-224 Sheave

Name: Metric 4SPZ224 Pulley 4-SPZ-224 Sheave
Brand: USA ROLLER CHAIN
SKU: 4-SPZ-224-PULLEY
Availability: InStock

SKU: 4-SPZ-224-PULLEY

In stockOnly 0 left in stockBackordered Out of stock Item is unavailable Contact Us For Pricing & Availability

Request a Quote

Call to order

Don’t see what you need? In a rush?

Call us!

Metric 4SPZ224 Pulley 4-SPZ-224 Sheave Description/Features

Metric 4SPZ224 Pulley 4-SPZ-224 Sheave Specifications

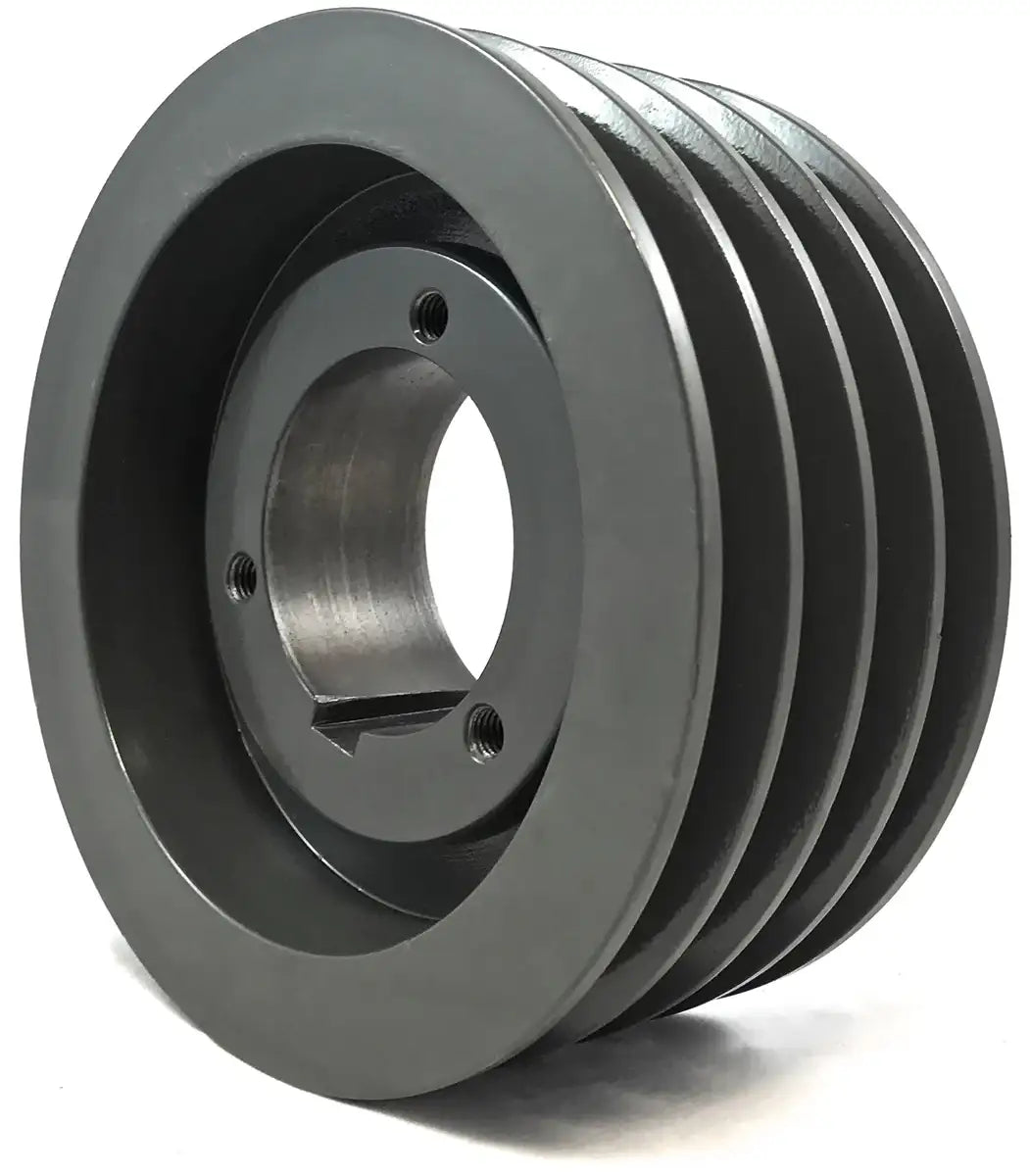

Our Metric 4SPZ224 Pulley is a four-groove metric v-belt sheave that is 228 millimeters (mm) in diameter and is designed for optimal performance, durability while being constructed from a high-strength DIN 1691 cast iron material for maximum working life. Additionally, this four groove 4-SPZ-224 Sheave is made for a 2517 taper lock bushing, meaning it has a wide range of bore sizes versus a fixed bore style. Utilizing a balance quality grade of ISO 1940 our sheave is sure to perform to your expectations efficiently and with minimal vibration versus other sheaves, which decreased vibration improves the life of the bearings and other components the machine. 4SPZ224 Pulleys are designed for 4-banded SPZ, SPZX, and XPZ metric belts. We also stock a complete line of shafting, electric motors, gear reducers, roller chain, and sprockets. For more information or to get a quote on our 4-SPZ-224 Sheave or other products please contact us and our customer service team will be happy to assist you.
