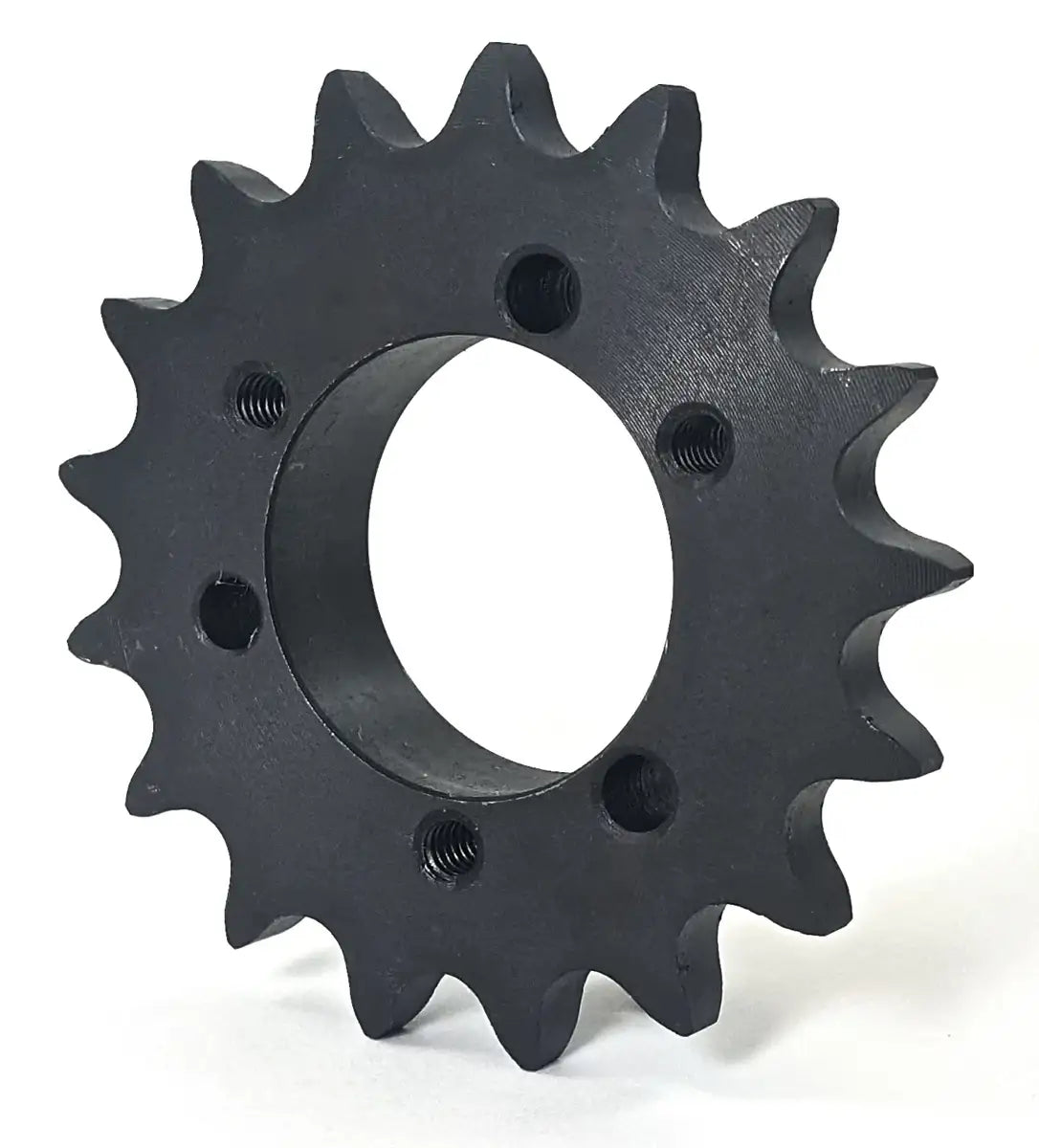

35JA24 Sprocket (QD Type)

Name: 35JA24 Sprocket (QD Type)
Brand: USA ROLLER CHAIN
SKU: 35JA24-SPROCKET
Price: 20.65 USD
Availability: InStock

$20.65

SKU: 35JA24-SPROCKET

Item is in stock Only 0 left in stockItem is out of stock Item is unavailable

Request a Quote

Don’t see what you need?

Call us

Buy it With:

35JA24 Sprocket (QD Type) Features

35JA24 Sprocket (QD Type) Specifications

This 35JA24 sprocket is a durable, high quality, and precision sprocket with hardened teeth that is manufactured to accept a JA bushing. Sprockets that have hardened teeth last longer and are much more durable than those that don't. Something else that is notable about this sprocket is that it fully meets all ANSI Standards, which insures proper contact between the #35 roller chain and sprocket which prevents premature wear or breakage. This sprocket is also black oxide coated which increases resistance to the environment and will prevent early rust build up. 35JA24 sprockets are bored to accept a JA size QD bushing which we also stock with a wide range of bore sizes. We also offer sprockets with finished bore configurations, and if you are needing a custom bore sprocket we the capabilities on providing those to within a fast lead time and at really great prices.For more information or large inquiry request please contact us and we will be happy to assist you.
35JA24 Sprocket Dimensions:

Sprocket Size: 35JA24
Bushing Type: JA
Outside Diameter: 3.070"
Dimension (L1): 1-1/8"
Dimension (L2): 1-1/8"
Dimension (C): 2-1/16"
Dimension (Y): 53/64"
Dimension (G): 29/64"
Dimension (X): 5/8"
Dimension (T): 0.168"
Sprocket Weight: 0.40 LBS
Weight With Bushing: 1.30 LBS
