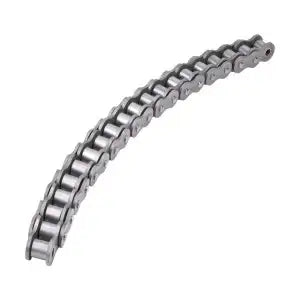

Premium 35 Side Bow Roller Chain 10ft Box
Note:
Se habla espanol
SKU: 35SB-CHAIIN-10FT
In stockOnly 0 left in stockBackordered
Out of stock
Item is unavailable
Contact Us For Pricing & Availability
Carbon Steel Chains
| Features | Premium/Premier | General Duty Plus | Economy Plus |
|---|---|---|---|
| Solid Bushings | Split Bushings in most cases | Split Bushings | |
| Solid Rollers | |||
| Through-Hardened Pins | Case-Hardened Pins | Heat-Treated Pins | |
| Case-Hardened Rollers | Heat-Treated in Some Chains | ||
| Case-Hardened Bushings | Heat-Treated in Some Chains | ||
| Wide Contour Plates | Standard Contour Plates | Standard Contour Plates | |
| Superior Pin to Plate Contact | |||
| High-Hold Riveting | Standard Dual-Stake Rivets | Standard Dual-Stake Rivets | |
| Factory Pre-Loading | Not Standard on Economy Chains | ||
| Specific Heat-Treatment on Every Component | Some Components Might be Heat-Treated | ||
| Premium Alloy & Carbon Materials | High-Quality Carbon Materials | Standard-Quality Carbon Materials | |
| Shot-Peened Components | Non Shot-Peened Components | Non Shot-Peened Components | |
| High-Precision Components | Standard Precision Components | Low Precision Components | |
| Conforms to ANSI B29.1 or ISO/DIN Standards |
Buy it With:
Premium 35 Side Bow Roller Chain 10ft Box Description/Features
Premium 35 Side Bow Roller Chain 10ft Box Specifications
35 side bow roller chain is a unique 3/8" pitch ANSI chain designed to operate around radial curves. Our premium #35 side bow chain is manufactured using precision high-grade carbon steel components that have been heat-treated and shot-peened. The result is a 35 side flexing chain with superior performance, working life, and strength. Additionally, 35 side bow roller chains can operate on standard 35 sprockets and are available in lengths of 10ft, 50, 100ft, or custom lengths. We also supply curved 35 chain guide tracks and sprockets! For additional information or to get a quote on our superior 35 side bow roller chain, contact our customer service team, and we will gladly assist you!
35 Side Bow Chain Dimensions
- Part #: 35SB
- Pitch (P): 0.375"
- Roller Width (W): 0.188"
- Roller Diameter (D): 0.200"
- Plate Height (H): 0.356"
- Plate Thickness (T): 0.050"
- Pin Diameter (E): 0.141"
- Weight: 0.23 LBS/ FT
- Part #: 35SB
- Pitch (P): 0.375"
- Roller Width (W): 0.188"
- Roller Diameter (D): 0.200"
- Plate Height (H): 0.356"
- Plate Thickness (T): 0.050"
- Pin Diameter (E): 0.141"
- Weight: 0.23 LBS/ FT
