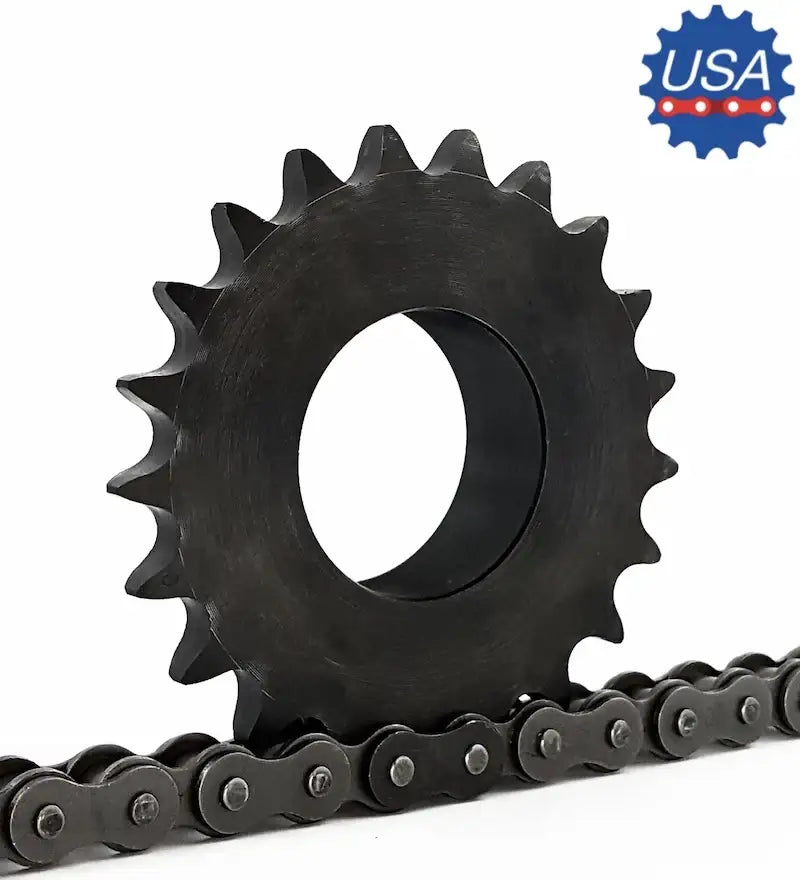

35H24 Sprocket (Taper Bushed)
This 35H24 sprocket is a durable, high quality, and precision sprocket with hardened teeth that is manufactured to accept a H bushing. Sprockets that have hardened teeth last longer and are much more durable than those that don't. Something else that is notable about this sprocket is that it fully meets all ANSI Standards, which insures proper contact between the #35 roller chain and sprocket which prevents premature wear or breakage. This sprocket is also black oxide coated which increases resistance to the environment and will prevent early rust build up. 35H24 sprockets are bored to accept a H size split taper bushing which we also stock with a wide range of bore sizes. We also offer sprockets with finished bore configurations, and if you are needing a custom bore sprocket we the capabilities on providing those to within a fast lead time and at really great prices.For more information or large inquiry request please contact us and we will be happy to assist you.
35H24 Sprocket Dimensions:
- Sprocket Size: 35H24
- Bushing Type: H
- Outside Diameter: 3.070"
- Pitch Diameter: 2.873"
- Dimension (OL): 1-1/2"
- Dimension (L): 1-1/4"
- Dimension (C): 1/16"
- Dimension (H): 2-1/2"
- Dimension (P): 1-5/32"
- Dimension (T): 0.168"
- Weight With Bushing: 0.8 LBS
- Weight Of Sprocket Only: 1.6 LBS
- Sprocket Size: 35H24
- Bushing Type: H
- Outside Diameter: 3.070"
- Pitch Diameter: 2.873"
- Dimension (OL): 1-1/2"
- Dimension (L): 1-1/4"
- Dimension (C): 1/16"
- Dimension (H): 2-1/2"
- Dimension (P): 1-5/32"
- Dimension (T): 0.168"
- Weight With Bushing: 0.8 LBS
- Weight Of Sprocket Only: 1.6 LBS
