Power Transmission > Sprockets > Roller Chain Sprockets > Single Strand Roller Chain Sprockets > 35 Chain Sprockets > #35 B-Hub Sprockets > 35B15 Sprockets

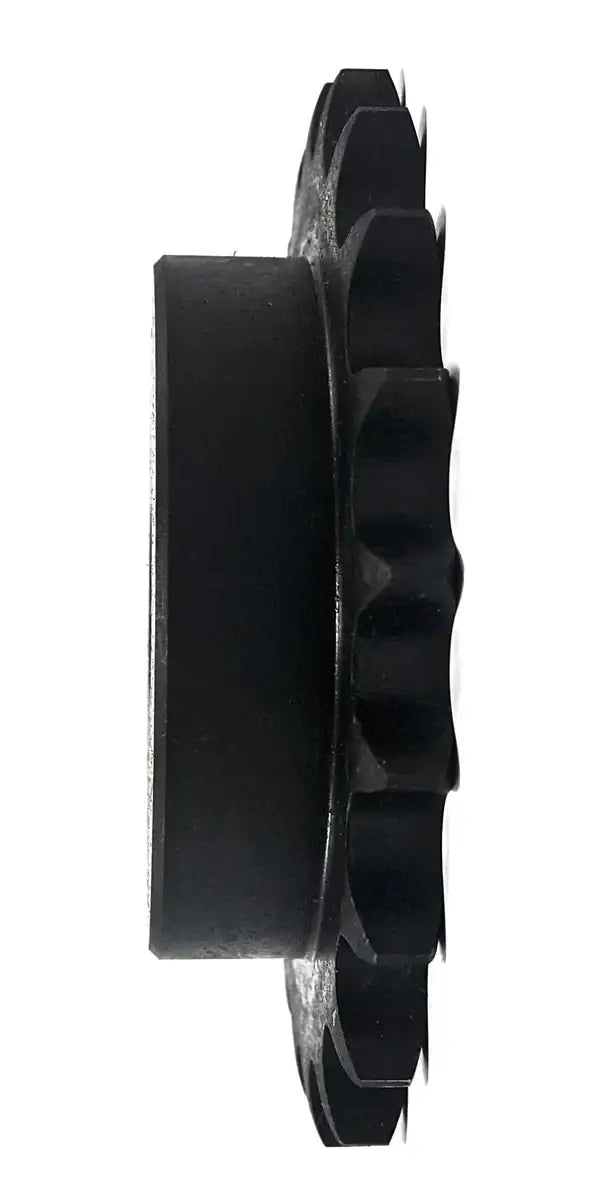

15-Tooth Sprocket for #35 Chain with Stock Bore, 35B15
Note:
Custom Cut to Length Chain Also Available
$9.99
SKU: 35B15-SPROCKET
Item is in stockOnly 0 left in stockItem is out of stock
Item is unavailable
Login to Request a Quote
15-Tooth Sprocket for #35 Chain with Stock Bore, 35B15 Features
15-Tooth Sprocket for #35 Chain with Stock Bore, 35B15 Specifications
This 35B15 sprocket is a durable, high quality, and precision sprocket with hardened teeth. Sprockets that have hardened teeth last longer and are much more durable than those that don't. Something else that is notable about this sprocket is that it fully meets all ANSI Standards, which insures proper contact between the #35 roller chain and sprocket which prevents premature wear or breakage. This sprocket is also black oxide coated which increases resistance to the environment and will prevent early rust build up. 35B15 sprockets with a stock bore comes with the standard 1/2" ID hole with no keyway or set screws and can be easily machine bored to custom sizes. We also offer sprockets with finished bore configurations right off the shelf from stock, and if you are needing a custom bore sprocket we the capabilities on providing those to within a fast lead time and at really great prices.
35B15 Sprocket Dimensions
- Sprocket Size: 35B15
- Tooth Count: 15
- Hub Style: B
- Outside Diameter (O.D): 1.990"
- Stock Bore: 1/2"
- Recommended Maximum Bore: 7/8"
- Hub Diameter: 1-11/32"
- Length Thru Bore: 3/4"
- Sprocket Weight: 0.29 LBS
- Common Interchanges: 35B15H, H35B15, 35B15-SB
- Sprocket Size: 35B15
- Tooth Count: 15
- Hub Style: B
- Outside Diameter (O.D): 1.990"
- Stock Bore: 1/2"
- Recommended Maximum Bore: 7/8"
- Hub Diameter: 1-11/32"
- Length Thru Bore: 3/4"
- Sprocket Weight: 0.29 LBS
- Common Interchanges: 35B15H, H35B15, 35B15-SB
