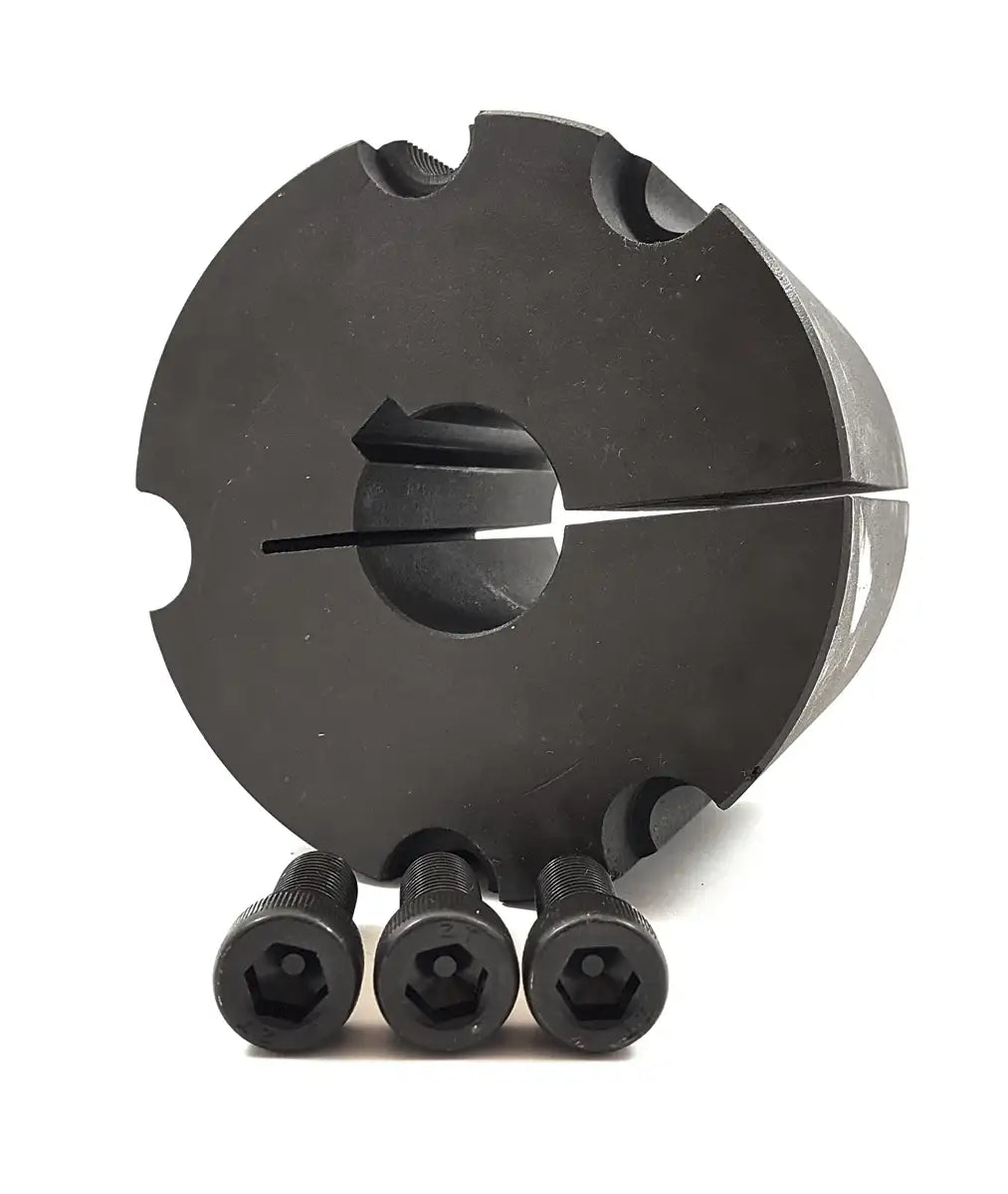

3535 Taper Lock Bushing X 80mm Bore

Power Transmission > Sprocket & Pulley Bushings > Taper Lock Bushings > 3535 Taper Lock Bushings

3535 Taper Lock Bushing X 80mm Bore

Note: Custom Cut to Length Chain Also Available
$109.99
SKU: 3535-80MM-TAPER-BUSHING
Item is in stockOnly 0 left in stockItem is out of stock Item is unavailable
Quantity

Login to Request a Quote

<p>Don’t see what you need?</p>

Don’t see what you need?

Call us
[{"variant_id":"51714503770479" , "metafield_value":""}]
3535 Taper Lock Bushing X 80mm Bore Features
3535 Taper Lock Bushing X 80mm Bore Specifications
This 3535 taper lock bushing is a high quality, durable, and dependable product that has been precisely manufactured to out-last and out-perform the competition. 3535 taper lock bushings are used in a wide range of applications including; belt pulleys, sprockets, drum pulleys, drive pulleys, tail pulleys, sheaves, and gears, which are items that we also offer! Additionally this bushing features a 80 millimeter bore with a standard keyway, for more information on 3535 taper lock bushings please contact us and we will be happy to assist you.

Dimensions:
3535 Taper Lock Bushing X 80mm Bore
  • Bushing Number: 3535
  • Bore: 80mm
  • Dimension (A): 5"
  • Dimension (B): 3-1/2"
  • Dimension (D): 4.83"
  • Number Of Set Screws: 3
  • Threads: 1/2"
  • Length: 1-1/2"
  • Dimension (G): 39°
  • Wrench Torque: 1,000 LBS
  • Weight: 12 LBS


Phone: (407) 347-3519
Email: sales@usarollerchain.com

See What All We Offer "Here"!
  • Bushing Number: 3535
  • Bore: 80mm
  • Dimension (A): 5"
  • Dimension (B): 3-1/2"
  • Dimension (D): 4.83"
  • Number Of Set Screws: 3
  • Threads: 1/2"
  • Length: 1-1/2"
  • Dimension (G): 39°
  • Wrench Torque: 1,000 LBS
  • Weight: 12 LBS
