Roller Chain > More Roller Chains > Poly Steel Roller Chain > 35 Poly Steel Chain
35 Poly Steel Chain | 35 Poly Steel Roller Chain - 10ft Box
Note:
Custom Cut to Length Chain Also Available
$264.99
SKU: 35-POLY-CHAIN
Item is in stockOnly 0 left in stockItem is out of stock
Item is unavailable
Login to Request a Quote
35 Poly Steel Chain | 35 Poly Steel Roller Chain - 10ft Box Features
35 Poly Steel Chain | 35 Poly Steel Roller Chain - 10ft Box Specifications

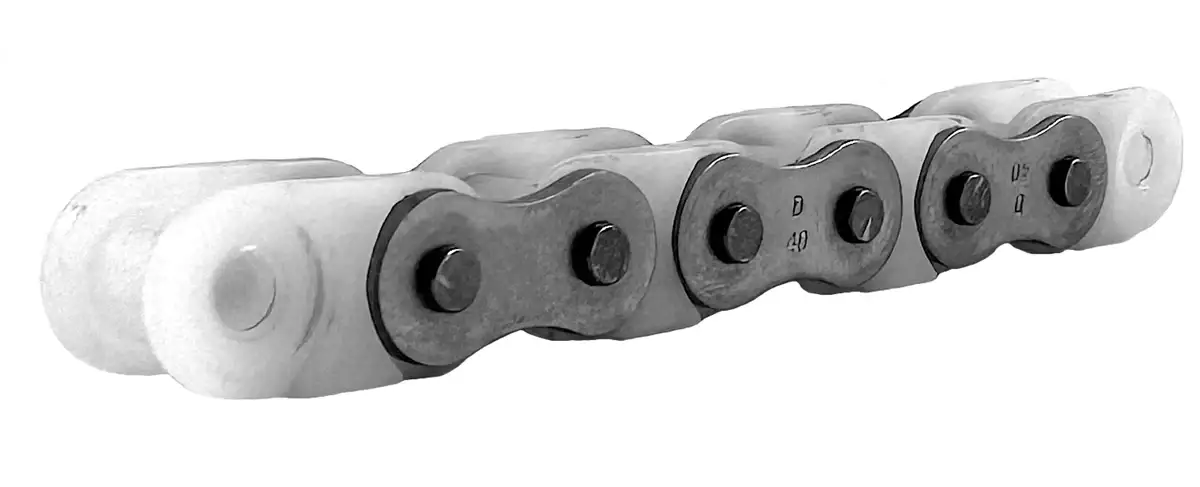

35 poly steel roller chain is a 0.375" pitch ANSI roller chain made with polymer (plastic) roller links and stainless steel pin links! This combination creates a low-noise, lube-free, and clean roller chain capable of operating within abrasive and corrosive environments ranging in temperature from -200F to +180F. Our 35 poly steel chain directly interchanges with other brands and is recommended to operate on stainless steel or plastic sprockets. Each component is precision machined for improved wear life and performance, and due to the combination of metallic and non-metallic materials, this chain can consistently operate with 40 pounds of working load applied to it (higher than a complete plastic chain). 35 poly steel chain is found in applications like scientific equipment, medical equipment, food processing, space equipment, and more! We typically supply 35 poly steel roller chains in 10ft lengths, including one connecting link for connecting the chain. For alternative lengths or more information on our premium 35 poly steel chain, contact our customer support team, and we will be happy to assist you!

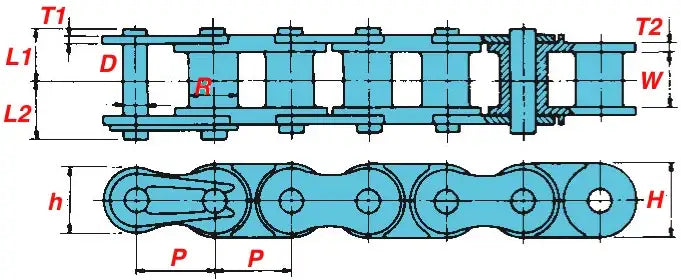

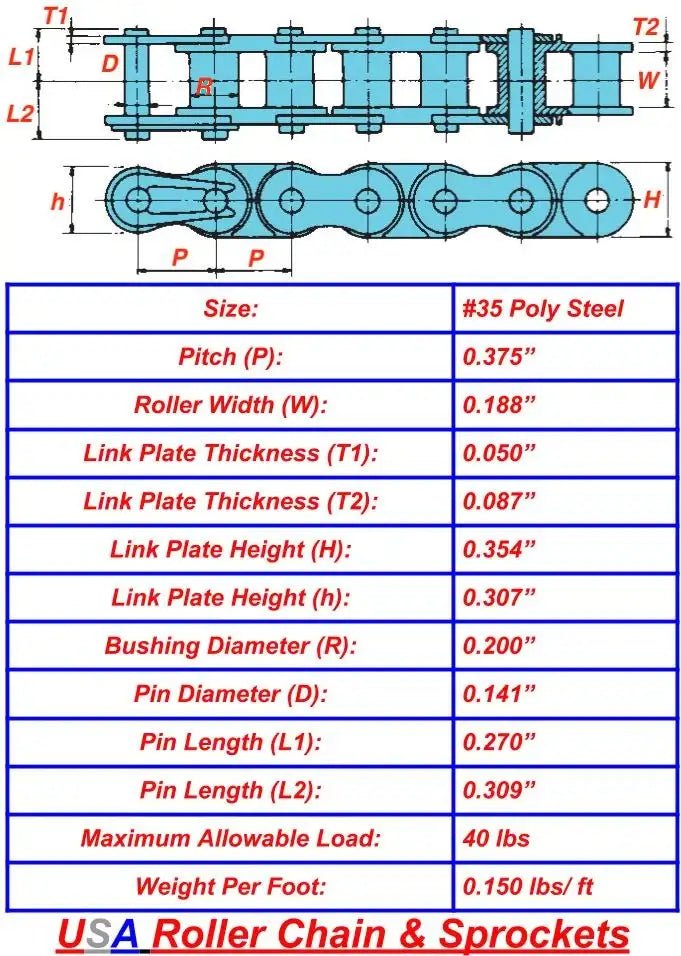

35 Poly Steel Chain Dimensions
- Chain Size: 35PS
- Pitch (P): 0.375"
- Inside Width (J): 0.188"
- Overall Width (W): 0.579"
- Bushing Diameter (O): 0.200"
- Pin Diameter (D): 0.141"
- Inner Plate Thickness (t): 0.087"
- Outer Plate Thickness (T): 0.050"
- Block Link Height (H): 0.354"
- Pin Link Height (U): 0.307"
- Maximum Working Load: 40 LBS
- Weight: 0.150 LBS/ FT
- Chain Size: 35PS
- Pitch (P): 0.375"
- Inside Width (J): 0.188"
- Overall Width (W): 0.579"
- Bushing Diameter (O): 0.200"
- Pin Diameter (D): 0.141"
- Inner Plate Thickness (t): 0.087"
- Outer Plate Thickness (T): 0.050"
- Block Link Height (H): 0.354"
- Pin Link Height (U): 0.307"
- Maximum Working Load: 40 LBS
- Weight: 0.150 LBS/ FT
