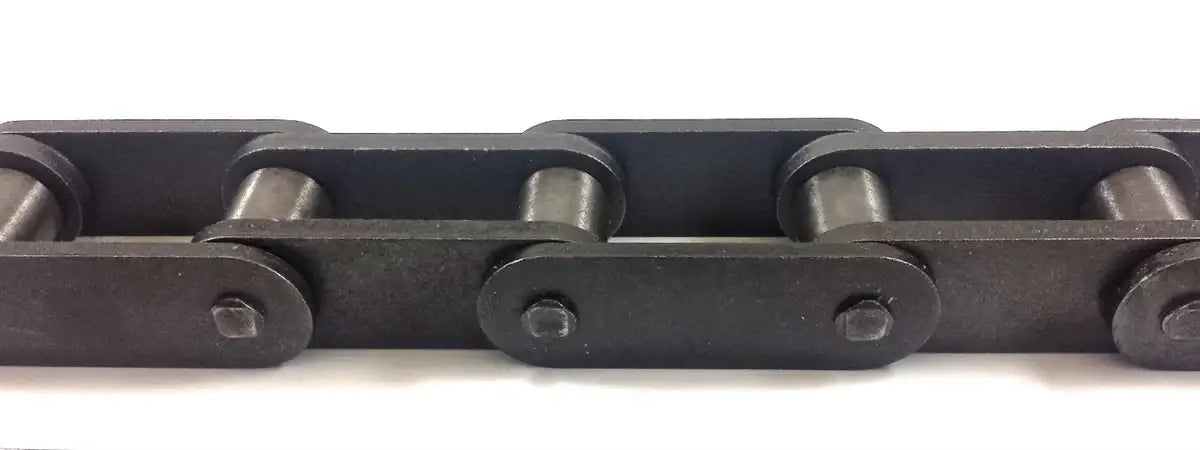

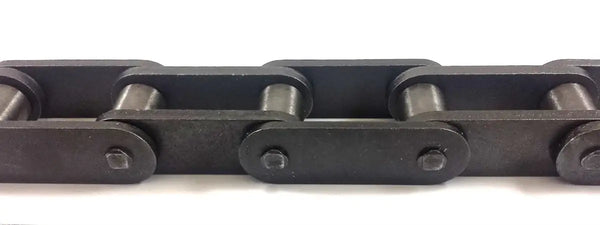

344SXX Chain

Specialty Chain > Engineering Class Chains > Straight Sidebar Drive Chains > 344SXX Drive Chain

344SXX Chain

Note: Custom Cut to Length Chain Also Available
SKU: 344SXX-CHAIN
Item is in stockOnly 0 left in stockItem is out of stock Item is unavailable

Login to Request a Quote

<p>Don’t see what you need?</p>

Don’t see what you need?

Call us

Buy it With:

 [{"variant_id":"51714502001007" , "metafield_value":""}]
344SXX Chain Features
344SXX Chain Specifications
This 344SXX chain is a straight sidebar drive chain that is manufactured to be high strength, durable, and have great performance. We offer some of the best pricing in the industry on 344SXX chain! 344SXX chain is found in some of the most sever applications on earth including power drives, constructing machinery, and heavy duty conveyors. 344SXX can even operate in these harsh applications at moderately high speeds. This chain has been manufactured using select grades of alloy steel for high strength and durability, along with press fitted pins to prevent pin rotation. Additionally we offer a full line of high quality 344SXX chain sprockets that range in, construction, tooth count, bore, and hub configurations. For pricing and availability on 344SXX straight sidebar drive chain or sprockets please contact us.

Dimensions:
344SXX Chain
  • Chain #: 344SXX
  • Pitch: 3.000"
  • Pin Length (F): 5.130"
  • Inside Width (E): 1.940"
  • Pin Diameter (G): 0.940"
  • Pin Style: K / Fully Round
  • Pin Material: Heat Treated & Induction Hardened Alloy Steel
  • Roller Diameter (D): 1.700"
  • Roller Material: Heat Treated Alloy Steel
  • Sidebar Height (H): 2.380"
  • Sidebar Thickness (T): 0.560"
  • Sidebar Material: Heat Treated Alloy Steel
  • Bushing Diameter: 1.310"
  • Bushing Material: Case Hardened Alloy Steel
  • Average Ultimate Strength: 170,000 LBS
  • Maximum Working Load: 10,050 LBS
  • Weight Per Foot: 22.0 LBS

Phone: (407) 347-3519
Email: sales@usarollerchain.com
  • Chain #: 344SXX
  • Pitch: 3.000"
  • Pin Length (F): 5.130"
  • Inside Width (E): 1.940"
  • Pin Diameter (G): 0.940"
  • Pin Style: K / Fully Round
  • Pin Material: Heat Treated & Induction Hardened Alloy Steel
  • Roller Diameter (D): 1.700"
  • Roller Material: Heat Treated Alloy Steel
  • Sidebar Height (H): 2.380"
  • Sidebar Thickness (T): 0.560"
  • Sidebar Material: Heat Treated Alloy Steel
  • Bushing Diameter: 1.310"
  • Bushing Material: Case Hardened Alloy Steel
  • Average Ultimate Strength: 170,000 LBS
  • Maximum Working Load: 10,050 LBS
  • Weight Per Foot: 22.0 LBS
