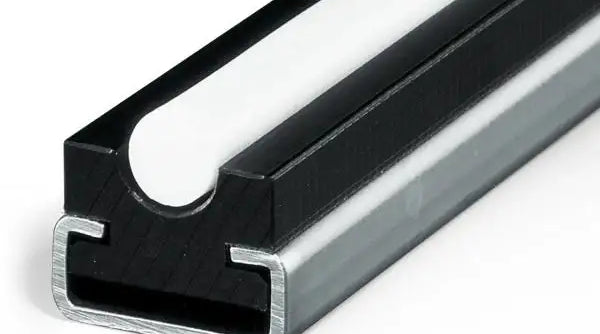

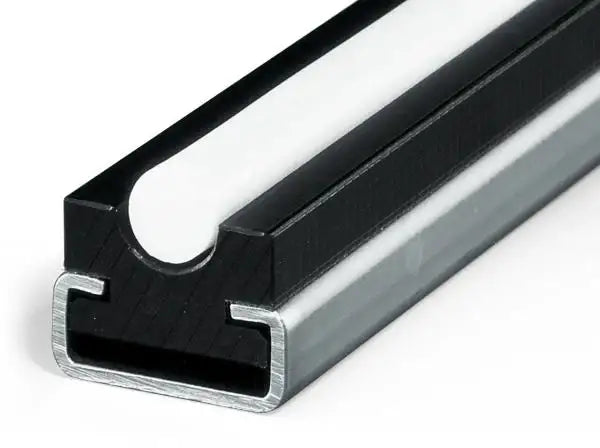

9.5mm Round Belt Guide | Type RRC Galvanized Mounted Guide
Note:
Custom Cut to Length Chain Also Available
SKU: 3432-231110038-BELT-GUIDE
Item is in stockOnly 0 left in stockItem is out of stock
Item is unavailable
Login to Request a Quote
9.5mm Round Belt Guide | Type RRC Galvanized Mounted Guide Features
9.5mm Round Belt Guide | Type RRC Galvanized Mounted Guide Specifications
The 231110035 type RRC mounted 4.8mm round belt guide is manufactured to European DIN 2768 Specifications and is made from high-quality black anti-static UHMW. The guide can be supplied with the standard-sized galvanized steel mounting channel or just as the plastic guide insert itself. Plastic round belt guides reduce friction, energy consumption and increase the wear life of belts when replacing out their steel counterpart guides. Standardly, mounted 4.8mm round belt guides are supplied in lengths of 2000mm, but alternate lengths can be supplied upon request. We also stock a wide array of round belts as well as other power transmission components. For additional information or to get a quote on mounted 4.8mm round belt guides, contact our customer support team, and we will be happy to assist you!
Mounted 4.8mm Round Belt Guide Dimensions
- Part #: 231110038
- Length: 2,000mm
- Mounting Channel Profile: C5
- Channel Material: Galvanized
- Belt Diameter: 9.5mm
- Dimension (B1): 25mm
- Dimension (B2): 28mm
- Dimension (H): 15mm
- Dimension (Hc): 20mm
- Dimension (h): 6mm
- Dimension (r): 6mm
- Part #: 231110038
- Length: 2,000mm
- Mounting Channel Profile: C5
- Channel Material: Galvanized
- Belt Diameter: 9.5mm
- Dimension (B1): 25mm
- Dimension (B2): 28mm
- Dimension (H): 15mm
- Dimension (Hc): 20mm
- Dimension (h): 6mm
- Dimension (r): 6mm
