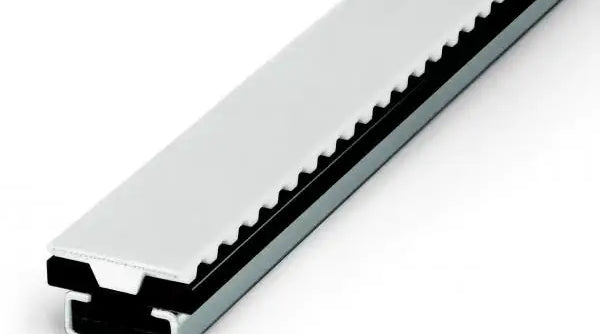

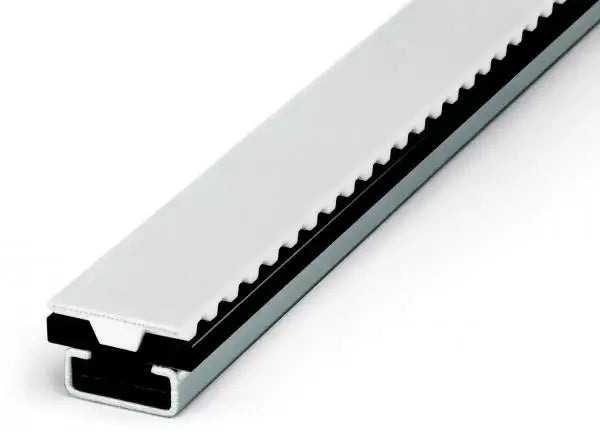

50/TK10 Timing Belt Guide | Type FKC Stainless Mounted Guide

The 231010014 type FKC stainless steel mounted 25/TK5 flat belt guide is manufactured to European DIN 2768 Specifications and is made from high-quality black anti-static UHMW. Plastic flat belt guides reduce friction, energy consumption and increase the wear life of belts when replacing out their steel counterpart guides. A mounted belt guide means a channel guide that the UHMW guide slides into; this creates an easy guide mounting mechanism for mounting a complete guide in a system and supporting lengths un unsupported sections in a system. Standardly, 25/TK5 flat belt guides are supplied in lengths of 2000mm, but alternate lengths can be supplied upon request. We can also supply the stainless steel mounting channel itself or the UHMW guide insert. We also stock a wide array of flat belts as well as other power transmission components. For additional information or to get a quote on the 25/TK5 flat belt guides, contact our customer support team, and we will be happy to assist you!

Mounted 25/TK5 Flat Belt Guide Dimensions

• Part #: 231110032-S
• Length: 2,000mm
• Mounting Channel Profile: C4
• Mounting Channel Material: Stainless Steel
• Belt Type: 50/TK10
• Dimension (B1): 55mm
• Dimension (B2): 50mm
• Dimension (H): 15mm
• Dimension (Hc): 18mm
• Dimension (b): 9.5mm
• Dimension (h): 4mm
