25/T5 Flat Belt Guide | Type FR Flat Belt Guide
Note:
Custom Cut to Length Chain Also Available
SKU: 3432-231010014-BELT-GUIDE
Item is in stockOnly 0 left in stockItem is out of stock
Item is unavailable
Login to Request a Quote
25/T5 Flat Belt Guide | Type FR Flat Belt Guide Features
25/T5 Flat Belt Guide | Type FR Flat Belt Guide Specifications

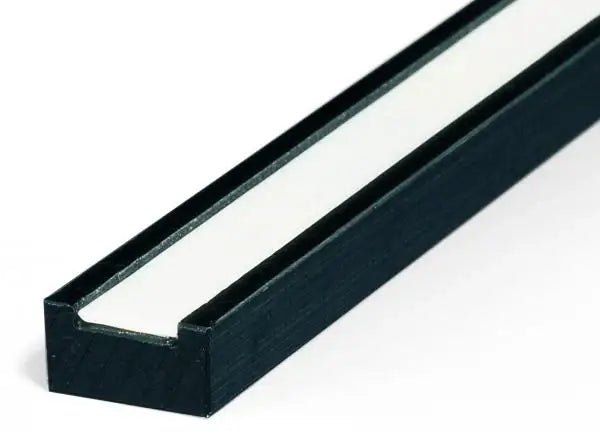

The 231010014 type FR 25/T5 flat belt guide is manufactured to European DIN 2768 Specifications and is made from high-quality black anti-static UHMW. Plastic flat belt guides reduce friction, energy consumption and increase the wear life of belts when replacing out their steel counterpart guides. Standardly, 25/T5 flat belt guides are supplied in lengths of 2000mm, but alternate lengths can be supplied upon request. We also stock a wide array of flat belts as well as other power transmission components. For additional information or to get a quote on the 25/T5 flat belt guides, contact our customer support team, and we will be happy to assist you!
25/T5 Flat Belt Guide Dimensions
- Part #: 231010014
- Length: 2,000mm
- Belt Type: 25/T5
- Dimension (B): 35mm
- Dimension (H): 10mm
- Dimension (b): 26mm
- Dimension (h): 1.8mm
- Part #: 231010014
- Length: 2,000mm
- Belt Type: 25/T5
- Dimension (B): 35mm
- Dimension (H): 10mm
- Dimension (b): 26mm
- Dimension (h): 1.8mm
