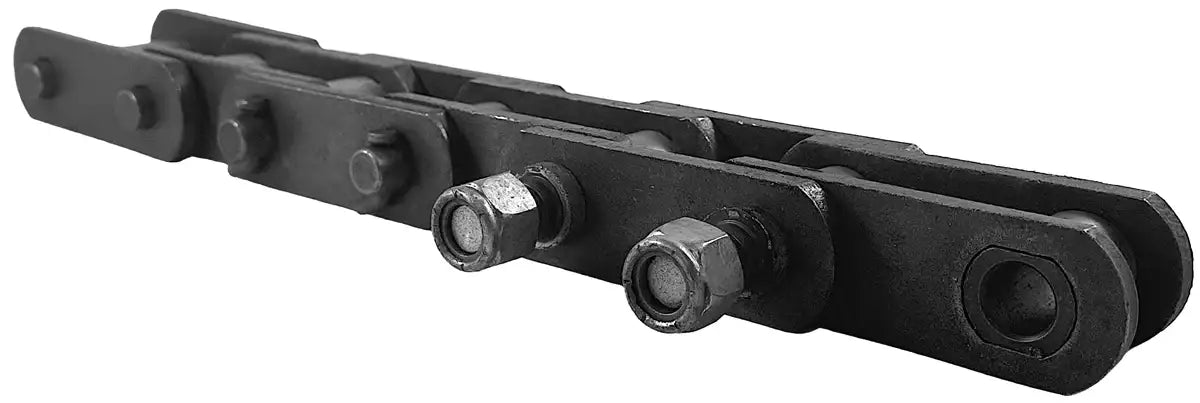

3075WB Wash Box Chain | 3075WB Chain

3075WB wash box chain is utilized in many mining operations, especially coal mining. Our 3075WB chain is made from high-grade steel alloys, features precision components, and implements specific heat treatments for improved wear life and performance. Wash box chains are used in wet coal washers; the highly abrasive environment is demanding and considered one of the harshest chain applications on earth. Our 3075WB chain has been designed and manufactured for the optimal lifespan in wash box applications; additionally, our chain interchanges with other manufacturers! For more information or to get a quote on our 3075WB wash box chain or sprockets, contact our customer support team, and we will be happy to assist you!

3075WB Chain Dimensions

• Chain Size: 3075WB
• Pitch (P): 3.075"
• Extended Pin Spacing: SPEIFY
• Dimension (W): 4.00"
• Dimension (L): 1.31"
• Dimension (N): 0.75"
• Pin Material: Alloy, Case-Hardened
• Dimension (D): 1.25"
• Bushing Material: Carbon, Case-Hardened
• Dimension (T): 0.38"
• Dimension (H): 1.75"
• Sidebar Material: Carbon, Heat-Treated
• Dimension (K): 0.75"
• Dimension (F): 1.25"
• Weight: VARYS LBS/ FT
