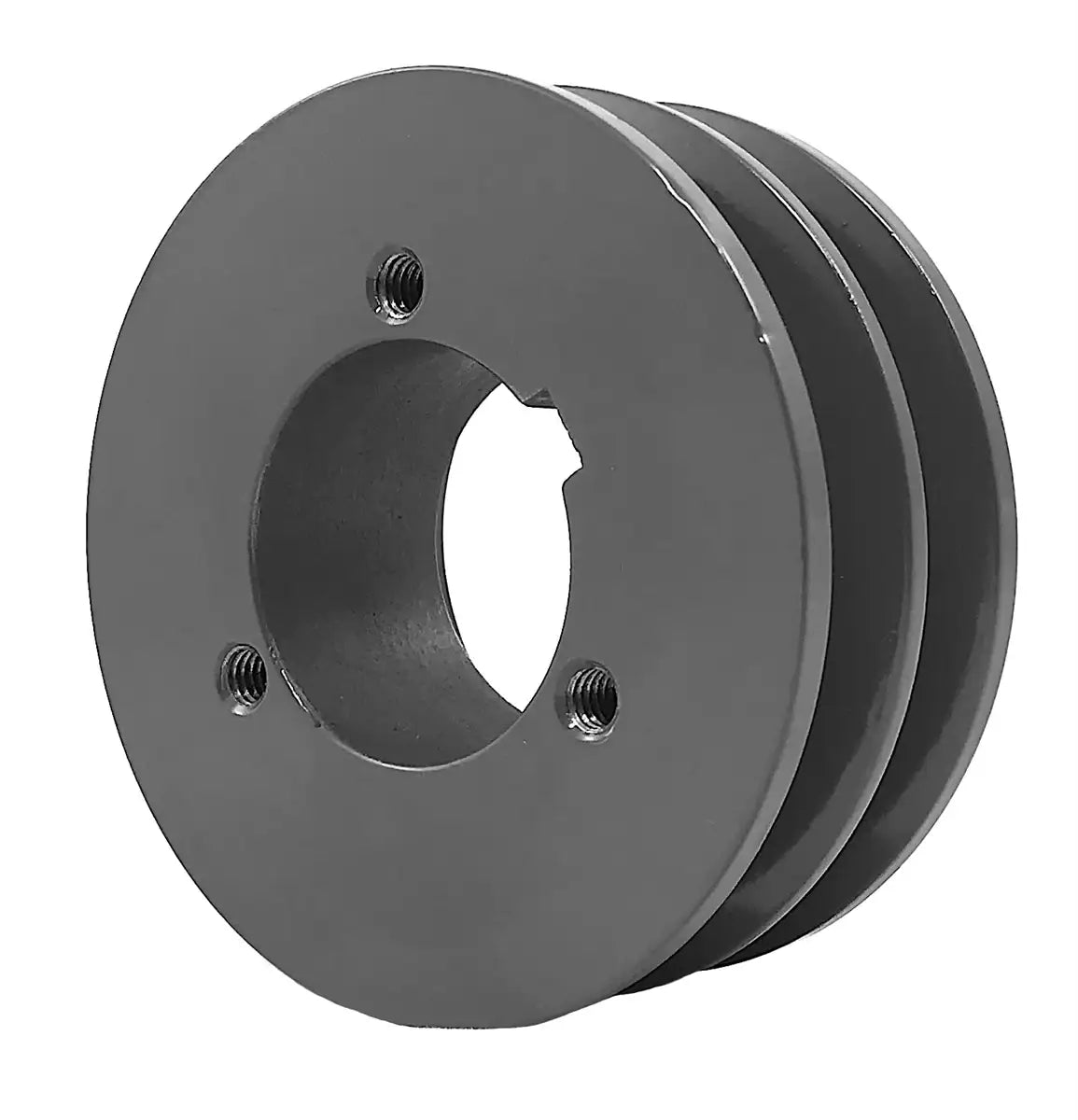

2TB38 Sheave two-groove 4.15" OD

This 2TB38 Pulley uses a P1-Series Bushing, is directly interchangeable with other manufacturers, is 4.15" in diameter, and is manufactured in accordance with ARPM Standard for safe operation. With B-series TB pulleys you can use A, 4L, B, 5L, AX, BX, AA, and BB belts. What separates this 2TB38 pulley from the others is that it is made using a high grade-35 cast iron, is phosphate coated, painted, and balanced at the factory. Using the grade 35 cast iron offers a higher tensile strength and is more wear resistant than the more commonly used grade 25. While the phosphate coated and then painted finish adds corrosion resistance to the 2TB38 pulley. Then, because this pulley is dynamically balanced it runs smoother which gives bearings and other components of the equipment a longer working life. Additionally, we stock a full line of premium A, 4L, B, 5L, AX, BX, AA, and BB belts, P1-bushings, shafting, key-stock, motors, gearboxes, bearings, and much more!

2TB38 Pulley Dimensions

• Size: 2TB38
• Bushing Type Needed: P1
• Pitch Diameter (A/ 4L): 3.4"
• Pitch Diameter (B/ 5L): 3.8"
• Outside Diameter: 4.15"
• Type: 5
• Overall Width (O.L.): 2-5/8"
• Dimension (L): 1-15/16"
• Dimension (P): 5/8"
• Dimension (C): 7/16"
• Dimension (H): 3"
• Dimension (F): 1"
• Dimension (X): 1-5/16"
• Dimension (E): 1/4"
• Sheave Weight: 3.0 LBS

USA Roller Chain and Sprockets is easy to work with and we offer an extensive inventory, high-quality products at competitive prices, and fast response times. We sell to end users, distributors, as well as OEMs all around the world. For more information on a double groove 2TB38 pulley, or to get pricing and availability on the accompanying belts/ P1-bushings, please contact us and we will be happy to assist you.
