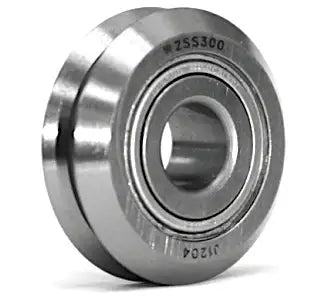

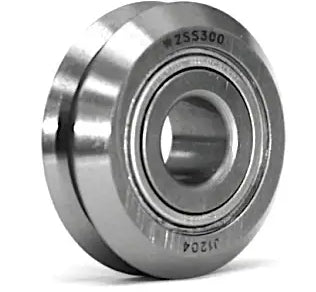

W2SS300 Bearing | Low-Temp V-Guide Wheel Roller Bearing

The W2SS300 v-guide wheel roller bearing is a modern low-temp grade engineering miracle for effective long-term linear motion requirements. V-guide wheel bearings offer the ultimate design flexibility for virtually any guided motion application. With a 90-degree angle, the v-bearing creates a natural wiping action while also clearing debris from the system. W2SS300 bearings are made from premium 440C stainless steel and are found in aerospace, refrigeration, flash-freezing, and corrosive subzero applications. The W2SS300 bearing features special stainless steel shields for protection, keeping the internal lubricant in while unwanted debris is out; this bearing is fantastic for any low-temperature and corrosive environment applications. For more information or a quote on W2SS300 bearings and accessories, please get in touch with our customer support team, and we will be happy to assist you!

W2SS300 V-Guide Bearing Dimensions

• Part #: W2SS300
• Protection: Shield
• Wheel Material: 440C Stainless
• Ball Retainer Material: 304 Stainless
• Shield Material: 300 Stainless Steel
• Grease Type: Kluber Isoflex PDL 300A
• Temperature Range (�F): -94 to +230
• Outside Diameter (D): 1.210"
• Width (W): 0.438"
• Bore Size (B): 0.3750" +0.0000/ - 0.0003"
• Vee Radius Inside (VRI): 0.500"
• Vee Radius Outside (VRO): 0.719"
• Weight (g): 39.0
