TL3LPA Track Lubricator
Note:
Custom Cut to Length Chain Also Available
SKU: 2924-TL3LPA
Item is in stockOnly 0 left in stockItem is out of stock
Item is unavailable
Login to Request a Quote
Buy it With:
TL3LPA Track Lubricator Features
TL3LPA Track Lubricator Specifications

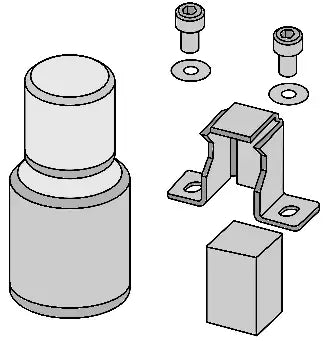

TL3LPA track lubricator is made for size 3 SWA studded wheels with low profile bushings and standard journals; it utilizes a premium white wool felt tip for optimal lubrication dispensing. It is recommended to use a lightweight synthetic oil for track lubricating. The felt holder and mounting hardware are made from AISI 300 stainless steel to provide long-term operation in various environments. For more information or to get a quote on TL3LPA track lubricators, contact us, and we will be happy to assist you!
TL3LPA Track Lubricator Dimensions
- Part #: TL3LPA
- Size: 3
- Mounting Compatibility: Bushings Low SWA Series
- Overall Height (A): 0.840"
- Overall Length (B): 1.839"
- Overall Width (C): 0.740"
- Holder Length (D): 0.839"
- Slot Diameter (E): 0.170"
- Slot Span (F): 1.339"
- Slot Center (G): 0.290"
- Mounting Surface To Track Vee Min: 0.450"
- Mounting Surface To Track Vee Max: 0.520"
- Mounting Screws: M3 X 0.5 X 6mm
- Mounting Washers: M3
- Part #: TL3LPA
- Size: 3
- Mounting Compatibility: Bushings Low SWA Series
- Overall Height (A): 0.840"
- Overall Length (B): 1.839"
- Overall Width (C): 0.740"
- Holder Length (D): 0.839"
- Slot Diameter (E): 0.170"
- Slot Span (F): 1.339"
- Slot Center (G): 0.290"
- Mounting Surface To Track Vee Min: 0.450"
- Mounting Surface To Track Vee Max: 0.520"
- Mounting Screws: M3 X 0.5 X 6mm
- Mounting Washers: M3
