Guide Track For Size 3 V-Guide Bearing Wheels

Power Transmission > Bearings > V-Guide Wheel Roller Bearings

Guide Track For Size 3 V-Guide Bearing Wheels

Note: Custom Cut to Length Chain Also Available
SKU: 2924-SIZE-3-TRACK
Item is in stockOnly 0 left in stockItem is out of stock Item is unavailable

Login to Request a Quote

<p>Don’t see what you need?</p>

Don’t see what you need?

Call us
[{"variant_id":"51714453930351" , "metafield_value":""}]
Guide Track For Size 3 V-Guide Bearing Wheels Features
Guide Track For Size 3 V-Guide Bearing Wheels Specifications
Guide track for size 3 v-guide bearings are manufactured from carbon steel or stainless steel and are precision made for optimal performance and longevity. Size 3 guide tracks are available in a variety of lengths with standard hole spacings. Tracks can also be supplied as soft or induction hardened upon request. For additional information or to get a quote, please contact us, and we will be happy to assist you!

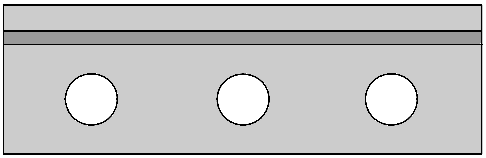

Size 3 Guide Track Dimensions

Guide Track For Size 3 V-Guide Bearing Wheels

  • Track Size: 3
  • Overall Width (A): 0.875"
  • Overall Height (B): 0.343"
  • Undercut Depth (C): 0.109"
  • Undercut To Vee (D): 0.062"
  • Shoulder To Vee Apex (E): 0.250"
  • Hole Diameter (F): 0.281"
  • Shoulder To Hole (G): 0.313"
  • Hole Spacing (H): 3.000"
  • Hole End Spacing 1 (J): 0.375"
  • Hole End Spacing 2 (K): 0.375"
  • Standard Length and # Of Holes: 12.75" (5-Holes)
  • Standard Length and # Of Holes: 24.75" (9-Holes)
  • Standard Length and # Of Holes: 36.75" (13-Holes)
  • Standard Length and # Of Holes: 48.75" (17-Holes)
  • Standard Length and # Of Holes: 60.75" (21-Holes)
  • Standard Length and # Of Holes: 72.75" (25-Holes)
  • Track Size: 3
  • Overall Width (A): 0.875"
  • Overall Height (B): 0.343"
  • Undercut Depth (C): 0.109"
  • Undercut To Vee (D): 0.062"
  • Shoulder To Vee Apex (E): 0.250"
  • Hole Diameter (F): 0.281"
  • Shoulder To Hole (G): 0.313"
  • Hole Spacing (H): 3.000"
  • Hole End Spacing 1 (J): 0.375"
  • Hole End Spacing 2 (K): 0.375"
  • Standard Length and # Of Holes: 12.75" (5-Holes)
  • Standard Length and # Of Holes: 24.75" (9-Holes)
  • Standard Length and # Of Holes: 36.75" (13-Holes)
  • Standard Length and # Of Holes: 48.75" (17-Holes)
  • Standard Length and # Of Holes: 60.75" (21-Holes)
  • Standard Length and # Of Holes: 72.75" (25-Holes)
