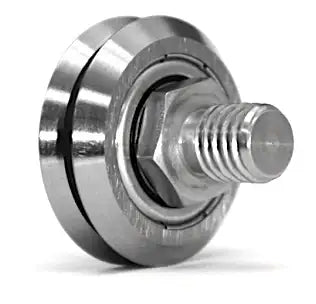

Eccentric SWAE2SSX Studded V-Guide Bearing - Thru-Hole Style

The size 2 eccentric thru-hole style SWAE2SSX studded v-guide wheel roller bearing is a modern engineering miracle for effective long-term linear motion requirements. V-guide wheel bearings offer the ultimate design flexibility for virtually any guided motion application. Having a 90-degree angle, the v-bearing creates a natural wiping action while also clearing debris from the system. SWAE2SSX bearings are made from high-quality 440C stainless steel and are utilized in corrosive conditions, including; medical, laboratory, food, and beverage. The SWAE2SSX bearing features NBR seals for protection, keeping the internal lubricant in while unwanted debris is out; this bearing is fantastic for any environment with corrosive conditions. For more information or a quote on SWAE2SSX stainless steel bearings and accessories, please get in touch with our customer support team, and we will be happy to assist you!

SWAE2SSX Studded V-Guide Bearing Dimensions

• Part #: SWAE2SSX
• Wheel Size: 2
• Adjustability: Eccentric
• Eccentric Offset (A): 0.038"
• Overall Length (B): 1.54"
• Wheel Diameter (C): 1.210"
• Journal Diameter (D1): 0.3926"
• Journal Length (E): 0.98"
• Thread Length (F): 0.59"
• Thread (G): M10 X 1.5
• Hex Thickness (H2): 0.104"
• Vee Height (J): 0.323"
• Hex Size (K): 0.551"
• Protection: Seal/ Shield
• Wheel Material: 440C Stainless
• Ball Retainer Material: Nylon 6,6
• Grease: Shell Alvania EP2
• Temperature Range (�F): -22 to +212
• Shield Material: 300 Series Stainless
• Seal Material: NBR
