Guide Track For Size 4 V-Guide Bearing Wheels

Power Transmission > Bearings > V-Guide Wheel Roller Bearings

Guide Track For Size 4 V-Guide Bearing Wheels

Note: Custom Cut to Length Chain Also Available
SKU: 2924-SIZE-4-TRACK
Item is in stockOnly 0 left in stockItem is out of stock Item is unavailable

Login to Request a Quote

<p>Don’t see what you need?</p>

Don’t see what you need?

Call us
[{"variant_id":"51714454192495" , "metafield_value":""}]
Guide Track For Size 4 V-Guide Bearing Wheels Features
Guide Track For Size 4 V-Guide Bearing Wheels Specifications
Guide track for size 4 v-guide bearings are manufactured from carbon steel or stainless steel and are precision made for optimal performance and longevity. Size 4 guide tracks are available in a variety of lengths with standard hole spacings. Tracks can also be supplied as soft or induction hardened upon request. For additional information or to get a quote, please contact us, and we will be happy to assist you!

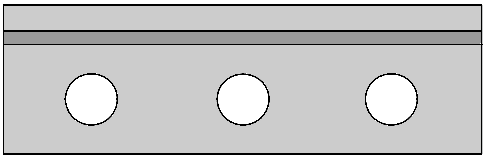

Size 4 Guide Track Dimensions

Guide Track For Size 4 V-Guide Bearing Wheels

  • Track Size: 4
  • Overall Width (A): 1.062"
  • Overall Height (B): 0.437"
  • Undercut Depth (C): 0.125"
  • Undercut To Vee (D): 0.093"
  • Shoulder To Vee Apex (E): 0.312"
  • Hole Diameter (F): 0.344"
  • Shoulder To Hole (G): 0.375"
  • Hole Spacing (H): 4.000"
  • Hole End Spacing 1 (J): 0.500"
  • Hole End Spacing 2 (K): 0.500"
  • Standard Length and # Of Holes: 13.00" (4-Holes)
  • Standard Length and # Of Holes: 25.00" (7-Holes)
  • Standard Length and # Of Holes: 37.00" (10-Holes)
  • Standard Length and # Of Holes: 49.00" (13-Holes)
  • Standard Length and # Of Holes: 61.00" (16-Holes)
  • Standard Length and # Of Holes: 73.00" (19-Holes)
  • Track Size: 4
  • Overall Width (A): 1.062"
  • Overall Height (B): 0.437"
  • Undercut Depth (C): 0.125"
  • Undercut To Vee (D): 0.093"
  • Shoulder To Vee Apex (E): 0.312"
  • Hole Diameter (F): 0.344"
  • Shoulder To Hole (G): 0.375"
  • Hole Spacing (H): 4.000"
  • Hole End Spacing 1 (J): 0.500"
  • Hole End Spacing 2 (K): 0.500"
  • Standard Length and # Of Holes: 13.00" (4-Holes)
  • Standard Length and # Of Holes: 25.00" (7-Holes)
  • Standard Length and # Of Holes: 37.00" (10-Holes)
  • Standard Length and # Of Holes: 49.00" (13-Holes)
  • Standard Length and # Of Holes: 61.00" (16-Holes)
  • Standard Length and # Of Holes: 73.00" (19-Holes)
