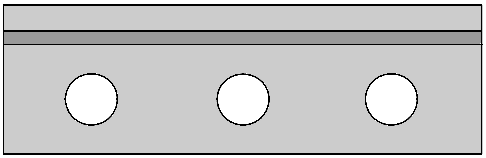

Guide track for size 2 v-guide bearings are manufactured from carbon steel or stainless steel and are precision made for optimal performance and longevity. Size 2 guide tracks are available in a variety of lengths with standard hole spacings. Tracks can also be supplied as soft or induction hardened upon request. For additional information or to get a quote, please contact us, and we will be happy to assist you!
Size 2 Guide Track Dimensions
- Track Size: 2
- Overall Width (A): 0.625"
- Overall Height (B): 0.250"
- Undercut Depth (C): 0.094"
- Undercut To Vee (D): 0.031"
- Shoulder To Vee Apex (E): 0.187"
- Hole Diameter (F): 0.203"
- Shoulder To Hole (G): 0.219"
- Hole Spacing (H): 3.000"
- Hole End Spacing 1 (J): 0.315"
- Hole End Spacing 2 (K): 0.315"
- Standard Length and # Of Holes: 12.65" (5-Holes)
- Standard Length and # Of Holes: 24.63" (9-Holes)
- Standard Length and # Of Holes: 36.63" (13-Holes)
- Standard Length and # Of Holes: 48.63" (17-Holes)
- Standard Length and # Of Holes: 60.63" (21-Holes)
- Standard Length and # Of Holes: 72.63" (25-Holes)
Feature
- Swiss Made For Optimal Quality
- Single Edge Track
- Polished and Oiled Track Finish
- Machined To Precision Tolerances
- Highly Versatile Design
- Track Size: 2
- Overall Width (A): 0.625"
- Overall Height (B): 0.250"
- Undercut Depth (C): 0.094"
- Undercut To Vee (D): 0.031"
- Shoulder To Vee Apex (E): 0.187"
- Hole Diameter (F): 0.203"
- Shoulder To Hole (G): 0.219"
- Hole Spacing (H): 3.000"
- Hole End Spacing 1 (J): 0.315"
- Hole End Spacing 2 (K): 0.315"
- Standard Length and # Of Holes: 12.65" (5-Holes)
- Standard Length and # Of Holes: 24.63" (9-Holes)
- Standard Length and # Of Holes: 36.63" (13-Holes)
- Standard Length and # Of Holes: 48.63" (17-Holes)
- Standard Length and # Of Holes: 60.63" (21-Holes)
- Standard Length and # Of Holes: 72.63" (25-Holes)
