Power Transmission > Bearings > V-Guide Wheel Roller Bearings
MV0WPA-SS227 MinVee Wheel Plate
Note:
Custom Cut to Length Chain Also Available
SKU: 2924-MV0WPA-SS227
Item is in stockOnly 0 left in stockItem is out of stock
Item is unavailable
Login to Request a Quote
MV0WPA-SS227 MinVee Wheel Plate Features
MV0WPA-SS227 MinVee Wheel Plate Specifications

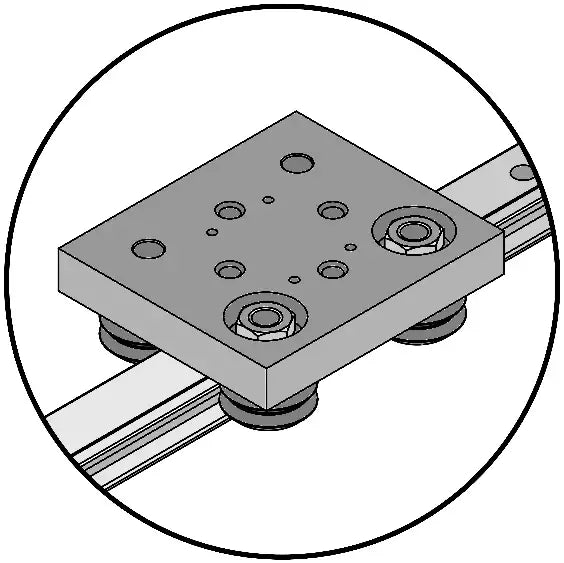

The Minvee MV0WPA-SS227 wheel plate is made for space restrained linear motion applications and utilizes two size 0 concentric and eccentric dual-v guide wheel bearings. The MV0WPA-SS227 features AISI 440C stainless steel guide bearings with a unique high temperature stainless steel shields for protecting the bearings. The wheel plate is made from 6061-T6 clear anodized aluminium and has a stainless steel lubricator housing with felt lubrication pads. For additional information or to get a quote on MV0WPA-SS227 wheel plates, contact our customer service team, and we will be happy to assist you!
MV0WPASS227 Wheel Plate Dimensions
- Part #: MV0WPA-SS227
- Wheel Version: AISI 440C Stainless Steel, High Temperature, Shielded
- Temperature Range (�F): -22 To +500
- Maximum Speed: 5 m/s
- Maximum Acceleration: 5 g
- Pitch Moment (Mp): 6.5 Nm
- YAW Moment (My): 7.1 Nm
- Roll Moment (Mr): 5.1 Nm
- Working Axial Load Capacity (LA): 444 N
- Working Radial Load Capacity (LR): 408 N
- Weight: 84 Grams
- Part #: MV0WPA-SS227
- Wheel Version: AISI 440C Stainless Steel, High Temperature, Shielded
- Temperature Range (�F): -22 To +500
- Maximum Speed: 5 m/s
- Maximum Acceleration: 5 g
- Pitch Moment (Mp): 6.5 Nm
- YAW Moment (My): 7.1 Nm
- Roll Moment (Mr): 5.1 Nm
- Working Axial Load Capacity (LA): 444 N
- Working Radial Load Capacity (LR): 408 N
- Weight: 84 Grams
