Concentric MJC4XLA Journal For Size 4XL Guide Wheel
Note:
Custom Cut to Length Chain Also Available
SKU: 2924-MJC4XLA
Item is in stockOnly 0 left in stockItem is out of stock
Item is unavailable
Login to Request a Quote
Buy it With:
Concentric MJC4XLA Journal For Size 4XL Guide Wheel Features
Concentric MJC4XLA Journal For Size 4XL Guide Wheel Specifications

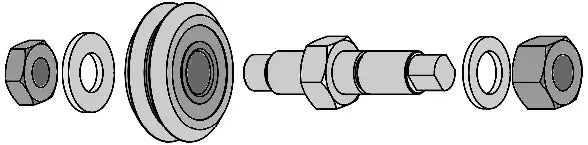

The concentric MJC4XLA journal is manufactured for size 4XL dual-v guide wheel bearings and is a component for mounting purposes. This MJC4XLA journal utilizes precision mounting diameter tolerances of +0.000"/ -0.002" and is supplied with mounting nuts and washers. The journal material its self is 303 stainless along with the washers, and the nuts are Nylon locking zinc plated carbon steel for long term durability in any application. Contact our customer support team for additional information or to get a quote on concentric MJC4XLA journals, and we will be happy to assist you!
MJC4XLA Journal Dimensions
- Part #: MJC4XLA
- For Wheel size: 4XL
- Adjustability: Concentric
- Overall Length (B): 4.070"
- Wheel Mounting Diameter (C): 0.8657"
- Journal Mounting Diameter (D): 0.750"
- Journal Length (E): 2.045"
- Wheel Mount Thread (F): 3/4-16
- Wheel Mount Thread (G): 3/4-16
- Hex Thickness (H): 0.565"
- Vee Height (J): 0.940"
- Hex Size (K): 1.250"
- Wrench Flats (L): 0.437"
- Min. Mounting Plate Thickness: 0.750"
- Max. Mounting Plate Thickness: 1.125"
- Part #: MJC4XLA
- For Wheel size: 4XL
- Adjustability: Concentric
- Overall Length (B): 4.070"
- Wheel Mounting Diameter (C): 0.8657"
- Journal Mounting Diameter (D): 0.750"
- Journal Length (E): 2.045"
- Wheel Mount Thread (F): 3/4-16
- Wheel Mount Thread (G): 3/4-16
- Hex Thickness (H): 0.565"
- Vee Height (J): 0.940"
- Hex Size (K): 1.250"
- Wrench Flats (L): 0.437"
- Min. Mounting Plate Thickness: 0.750"
- Max. Mounting Plate Thickness: 1.125"
