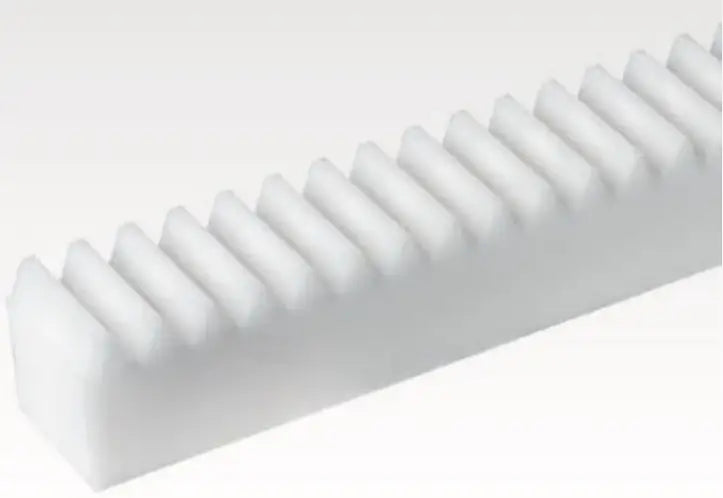

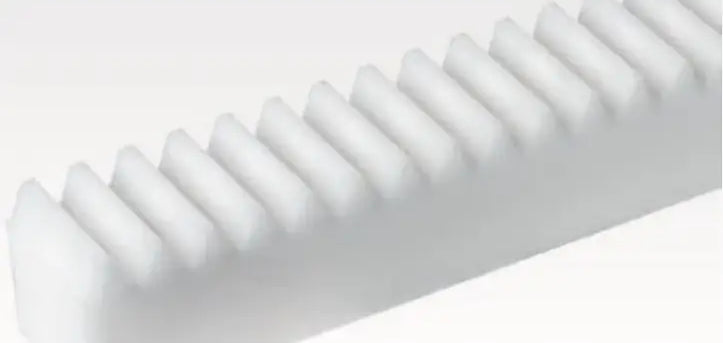

Module 3 Plastic Gear Rack (19.4X15X12) - Polyacetal 250mm
Note:
Custom Cut to Length Chain Also Available
SKU: 28860100-RACK
Item is in stockOnly 0 left in stockItem is out of stock
Item is unavailable
Login to Request a Quote
Module 3 Plastic Gear Rack (19.4X15X12) - Polyacetal 250mm Features
Module 3 Plastic Gear Rack (19.4X15X12) - Polyacetal 250mm Specifications
ur module 3 plastic gear rack is dimensionally manufactured per DIN 867/ DIN 3972 standards 19.4mm X 15mm X 12mm, is made from high-quality polyacetal material, and has a nominal length of 250mm. These gear racks are easily mounted in continuous lengths, especially with the use of our gear rack mounting aid! Polyacetal is a natural white plastic that offers a high hardness and resistance to corrosion; the material can also be used in food-grade or medical applications. Module 3 metric plastic gear racks feature a 20-degree pressure angle straight tooth design; we also supply the accompanying plastic spur gears! For additional information or to get a quote on our plastic gear racks or gears, contact our customer service team, and we will be happy to assist you!
Module 3 Polyacetal Gear Rack Dimensions
- Part #: 28860100
- Module:3
- Dimension (b): 19.4mm
- Dimension (H): 15mm
- Dimension (h): 12mm
- Length (L): 250mm
- Weight: 75.8 Grams
- Part #: 28860100
- Module:3
- Dimension (b): 19.4mm
- Dimension (H): 15mm
- Dimension (h): 12mm
- Length (L): 250mm
- Weight: 75.8 Grams
