SAF513 Housing | SAF 513 Split Pillow Block Housing

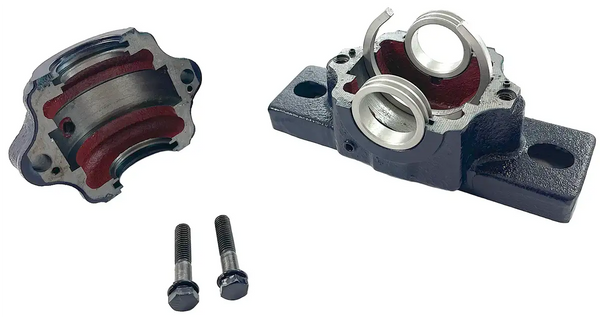

SAF 513 housings are designed for some extreme industrial applications; this housing is a split pillow block housing made from cast iron for spherical roller bearings. The split design of a SAF513 housing allows for easy mounting and maintenance, while the heavy-duty construction permits this bearing to operate in higher-load applications compared to other types. Our SAF513 bearing is cast from a high-grade cast and is designed with a reinforced webbed base for better heat distribution and prevention of over-tightening. Additionally, the housing features two threaded plugged holes on top for a grease fitting and various testing equipment, while the bottom faces of the housing have a drain plug on each side. SAF513 housings are commonly found in applications such as; steel mills, queries, and large drive or conveying applications. For additional information or to get a quote on our SAF 513 housing, contact our customer support team, and we will be happy to assist you!

SAF 513 Housing Dimensions

• Housing #: SAF513
• Dimension (D): 120mm
• Dimension (a): 11"
• Dimension (b): 3-1/8"
• Dimension (c): 1"
• Dimension (h): 3"
• Dimension (W): 5-15/16"
• Dimension (M - max.): 9-1/2"
• Dimension (M - min.): 8-1/8"
• Dimension (n): 2"
• Dimension (S): 5/8"
• Cap Bolt Size: 1/2" - 13
• Style: 1

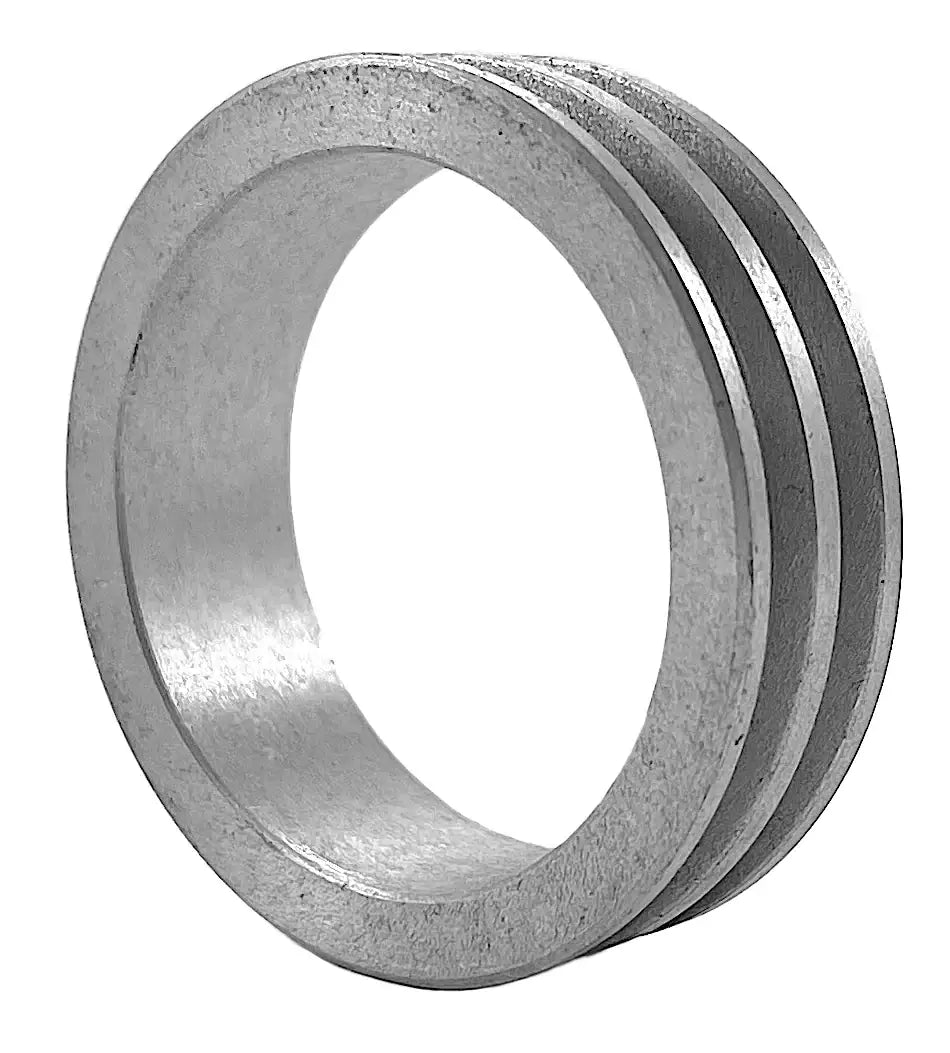

• Labyrinth Seal Ring: LER29
• Stabilizing Ring: SR13-0
• Weight (LBS): 18.30
