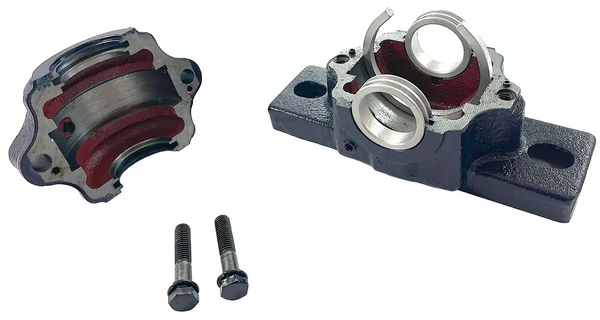

SAF530 Housing | SAF 530 Split Pillow Block Housing

SAF 530 housings are designed for some extreme industrial applications; this housing is a split pillow block housing made from cast iron for spherical roller bearings. The split design of a SAF530 housing allows for easy mounting and maintenance, while the heavy-duty construction permits this bearing to operate in higher-load applications compared to other types. Our SAF530 bearing is cast from a high-grade cast and is designed with a reinforced webbed base for better heat distribution and prevention of over-tightening. Additionally, the housing features two threaded plugged holes on top for a grease fitting and various testing equipment, while the bottom faces of the housing have a drain plug on each side. SAF530 housings are commonly found in applications such as; steel mills, queries, and large drive or conveying applications. For additional information or to get a quote on our SAF 530 housing, contact our customer support team, and we will be happy to assist you!

SAF 530 Housing Dimensions

• Housing #: SAF530
• Dimension (D): 270mm
• Dimension (a): 21-1/4"
• Dimension (b): 6-1/4"
• Dimension (c): 2-1/2"
• Dimension (h): 6-5/16"
• Dimension (W): 12-1/2"
• Dimension (M - max.): 18-1/4"
• Dimension (M - min.): 17"
• Dimension (n): 3-3/4"
• Dimension (S): 1"
• Cap Bolt Size: 3/4-10
• Style: 3

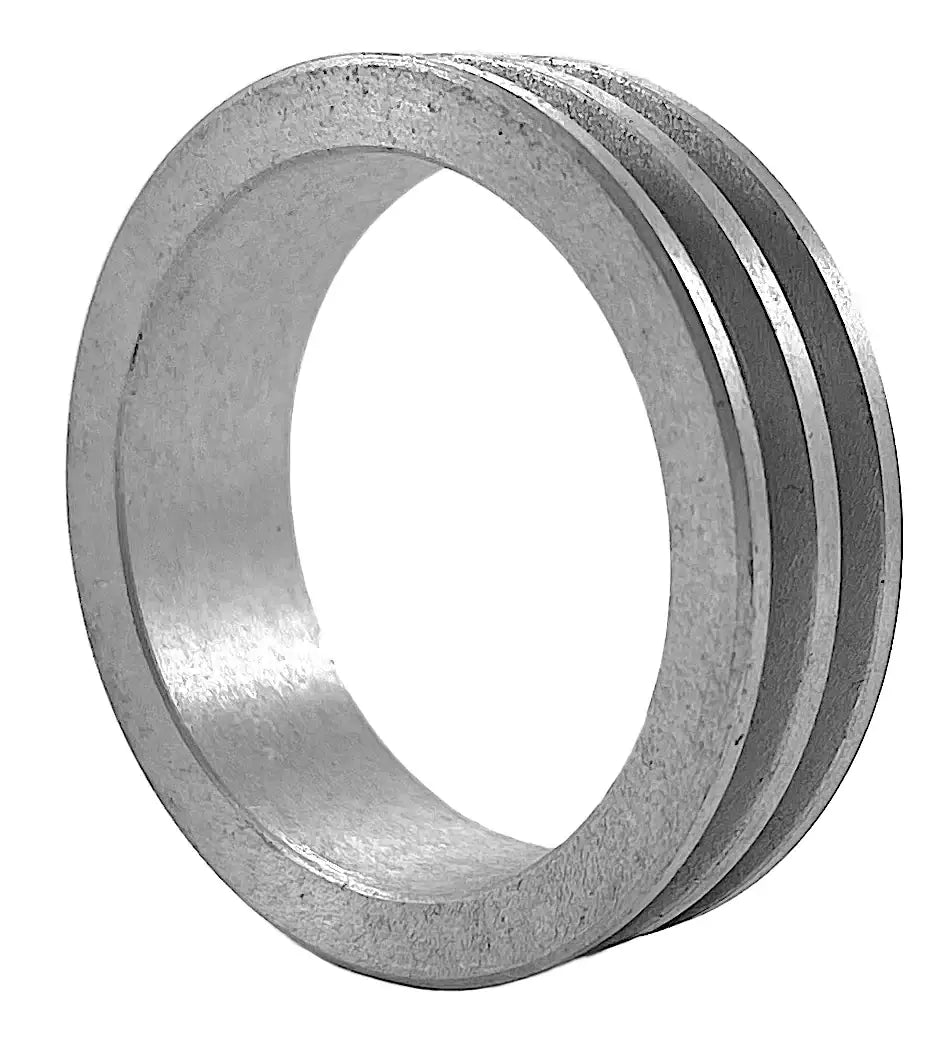

• Labyrinth Seal Ring: LER125
• Stabilizing Ring: SR30-0
• Weight (LBS): 140.00
