SAF515 Housing | SAF 515 Split Pillow Block Housing

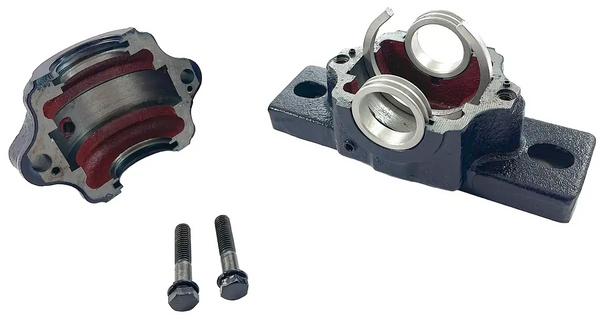

SAF 515 housings are designed for some extreme industrial applications; this housing is a split pillow block housing made from cast iron for spherical roller bearings. The split design of a SAF515 housing allows for easy mounting and maintenance, while the heavy-duty construction permits this bearing to operate in higher-load applications compared to other types. Our SAF515 bearing is cast from a high-grade cast and is designed with a reinforced webbed base for better heat distribution and prevention of over-tightening. Additionally, the housing features two threaded plugged holes on top for a grease fitting and various testing equipment, while the bottom faces of the housing have a drain plug on each side. SAF515 housings are commonly found in applications such as; steel mills, queries, and large drive or conveying applications. For additional information or to get a quote on our SAF 515 housing, contact our customer support team, and we will be happy to assist you!

SAF 515 Housing Dimensions

• Housing #: SAF515
• Dimension (D): 130mm
• Dimension (a): 11-1/4"
• Dimension (b): 3-1/8"
• Dimension (c): 1-1/8"
• Dimension (h): 3-1/4"
• Dimension (W): 6-3/8"
• Dimension (M - max.): 9-5/8"
• Dimension (M - min.): 8-5/8"
• Dimension (n): 1-7/8"
• Dimension (S): 5/8"
• Cap Bolt Size: 1/2" - 13
• Style: 1

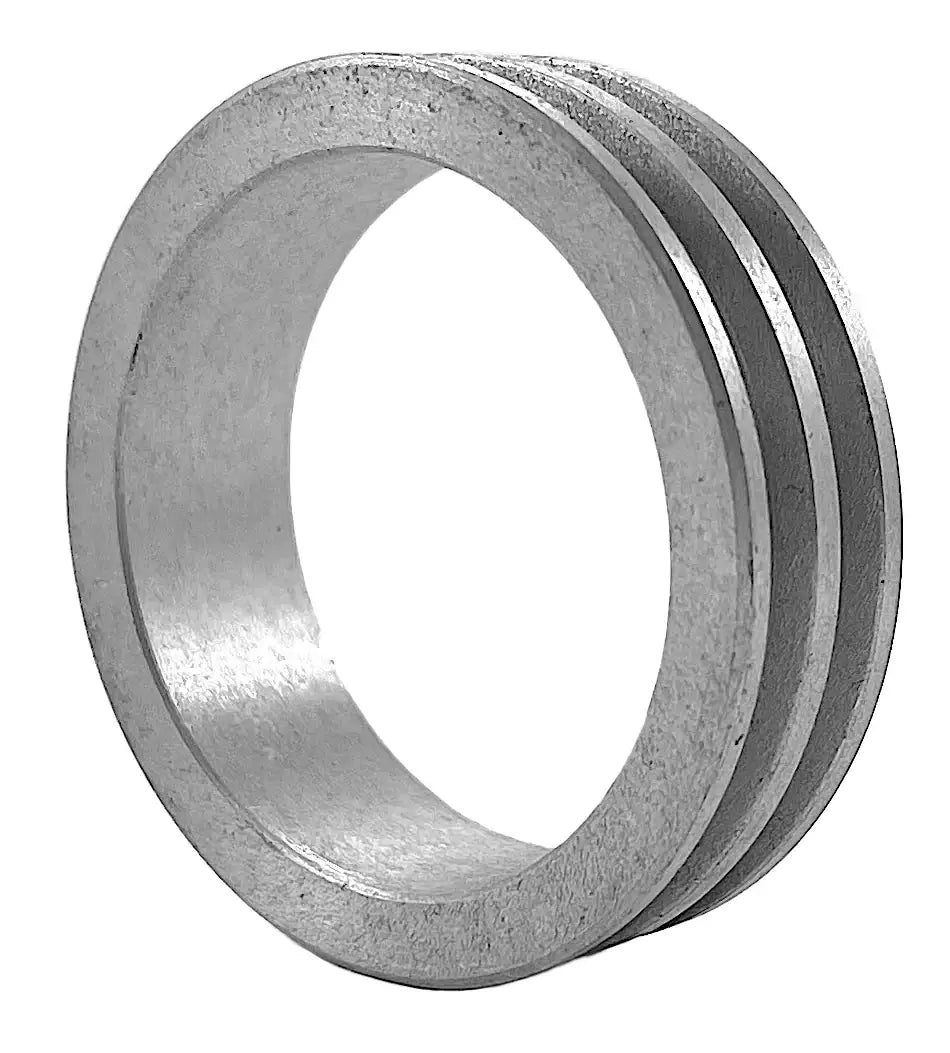

• Labyrinth Seal Ring: LER37
• Stabilizing Ring: SR15-0
• Weight (LBS): 18.30
