SAF511 Housing | SAF 511 Split Pillow Block Housing

SAF 511 housings are designed for some extreme industrial applications; this housing is a split pillow block housing made from cast iron for spherical roller bearings. The split design of a SAF511 housing allows for easy mounting and maintenance, while the heavy-duty construction permits this bearing to operate in higher-load applications compared to other types. Our SAF511 bearing is cast from a high-grade cast and is designed with a reinforced webbed base for better heat distribution and prevention of over-tightening. Additionally, the housing features two threaded plugged holes on top for a grease fitting and various testing equipment, while the bottom faces of the housing have a drain plug on each side. SAF511 housings are commonly found in applications such as; steel mills, queries, and large drive or conveying applications. For additional information or to get a quote on our SAF 511 housing, contact our customer support team, and we will be happy to assist you!

SAF 511 Housing Dimensions

• Housing #: SAF511
• Dimension (D): 100mm
• Dimension (a): 9-5/8"
• Dimension (b): 2-3/4"
• Dimension (c): 15/16"
• Dimension (h): 2-3/4"
• Dimension (W): 5-1/4"
• Dimension (M - max.): 7-7/8"
• Dimension (M - min.): 7-3/8"
• Dimension (S): 5/8"
• Cap Bolt Size: 1/2" - 13
• Style: 1

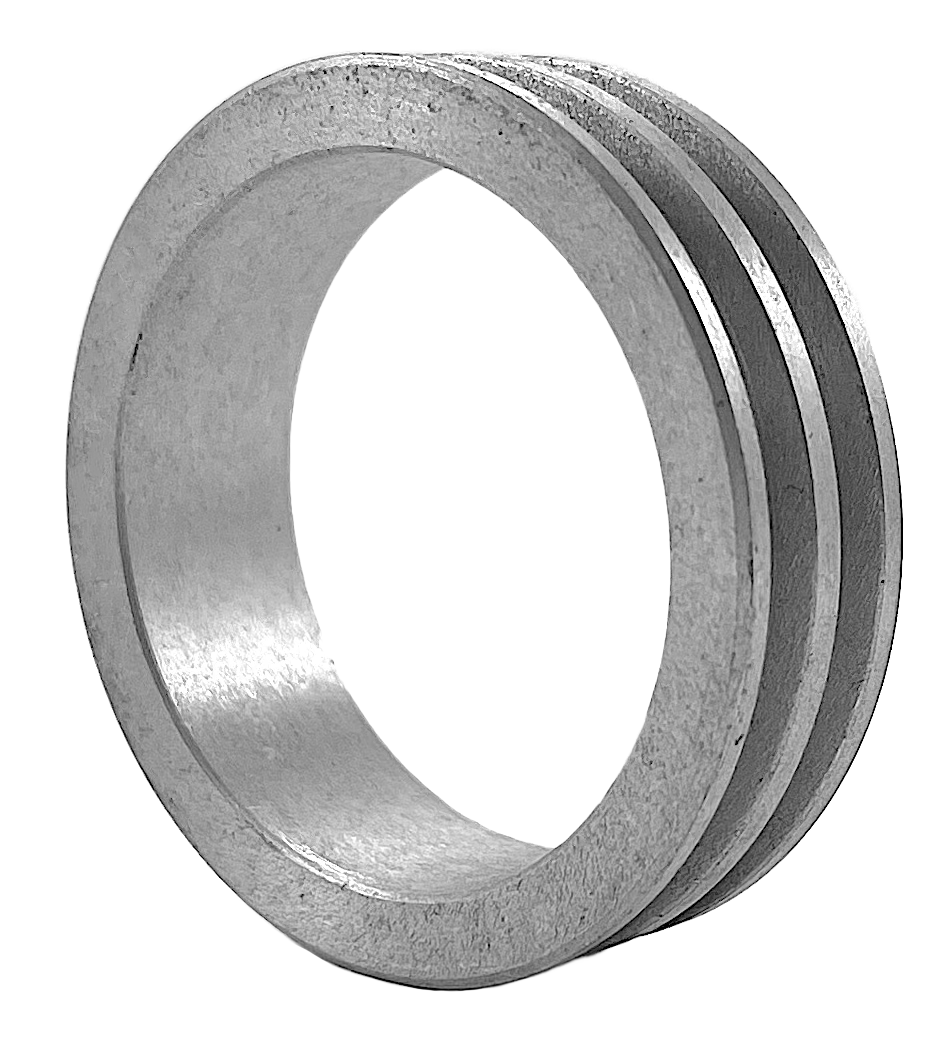

• Labyrinth Seal Ring: LER24
• Stabilizing Ring: SR11-0
• Weight (LBS): 13.70
