SAF510 Housing | SAF 510 Split Pillow Block Housing

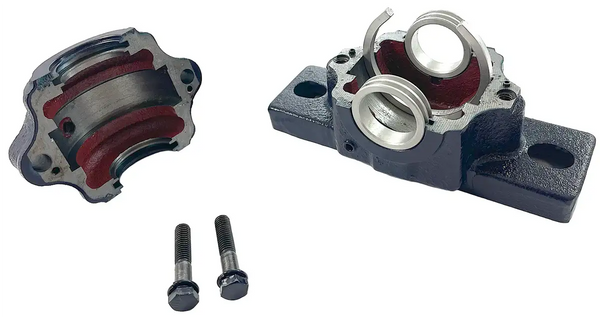

SAF 510 housings are designed for some extreme industrial applications; this housing is a split pillow block housing made from cast iron for spherical roller bearings. The split design of a SAF510 housing allows for easy mounting and maintenance, while the heavy-duty construction permits this bearing to operate in higher-load applications compared to other types. Our SAF510 bearing is cast from a high-grade cast and is designed with a reinforced webbed base for better heat distribution and prevention of over-tightening. Additionally, the housing features two threaded plugged holes on top for a grease fitting and various testing equipment, while the bottom faces of the housing have a drain plug on each side. SAF510 housings are commonly found in applications such as; steel mills, queries, and large drive or conveying applications. For additional information or to get a quote on our SAF 510 housing, contact our customer support team, and we will be happy to assist you!

SAF 510 Housing Dimensions

• Housing #: SAF510
• Dimension (D): 90mm
• Dimension (a): 8-1/4"
• Dimension (b): 2-3/8"
• Dimension (c): 15/16"
• Dimension (h): 2-1/2"
• Dimension (W): 4-3/4"
• Dimension (M - max.): 7"
• Dimension (M - min.): 6-1/2"
• Dimension (S): 1/2"
• Cap Bolt Size: 7/16" - 14
• Style: 1

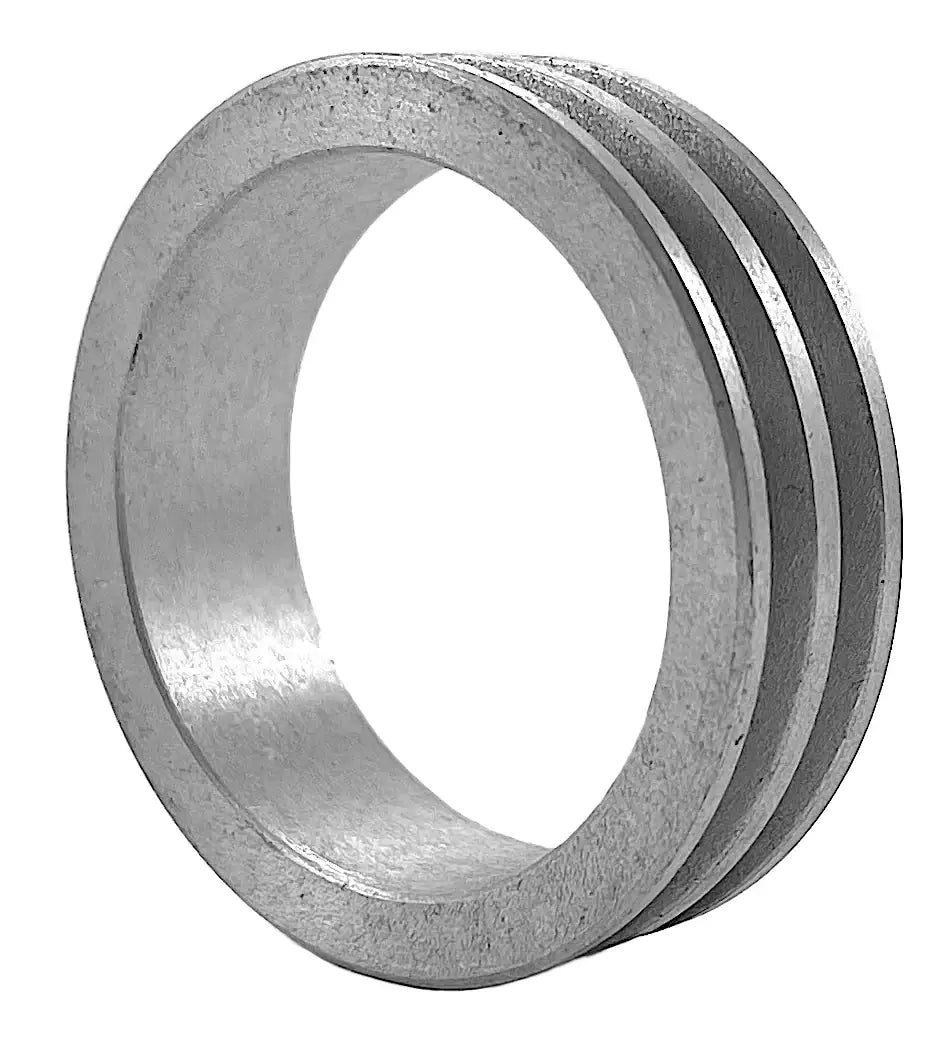

• Labyrinth Seal Ring: LER20
• Stabilizing Ring: SR10-0
• Weight (LBS): 10.40
