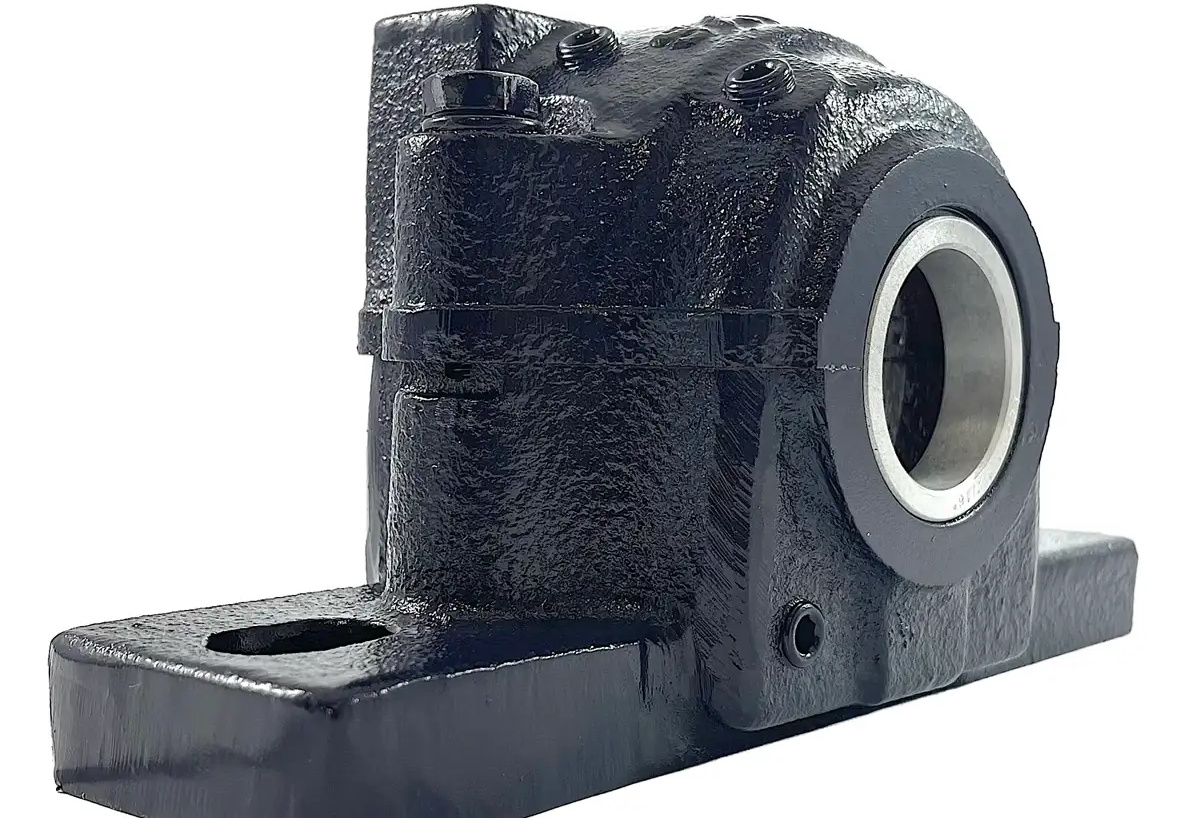

SAF509 Housing | SAF 509 Split Pillow Block Housing

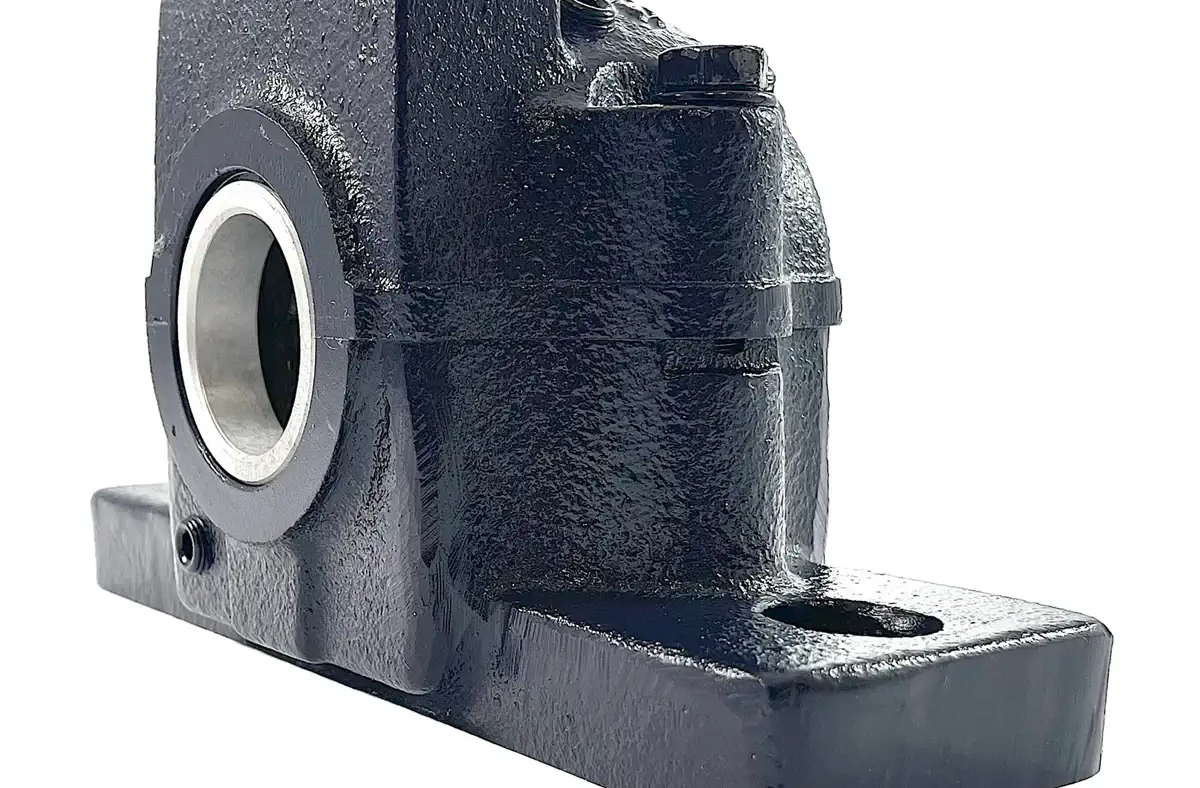

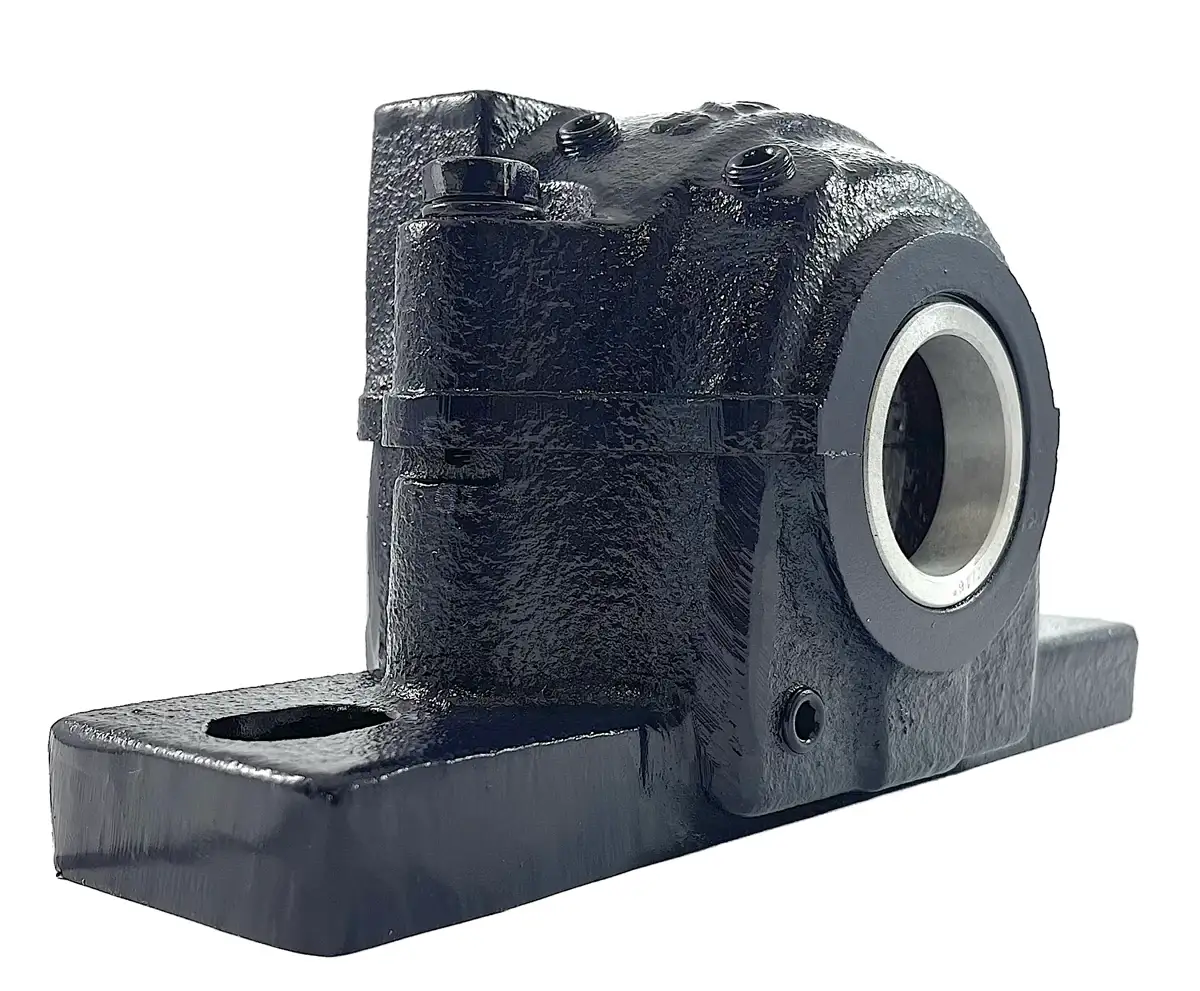

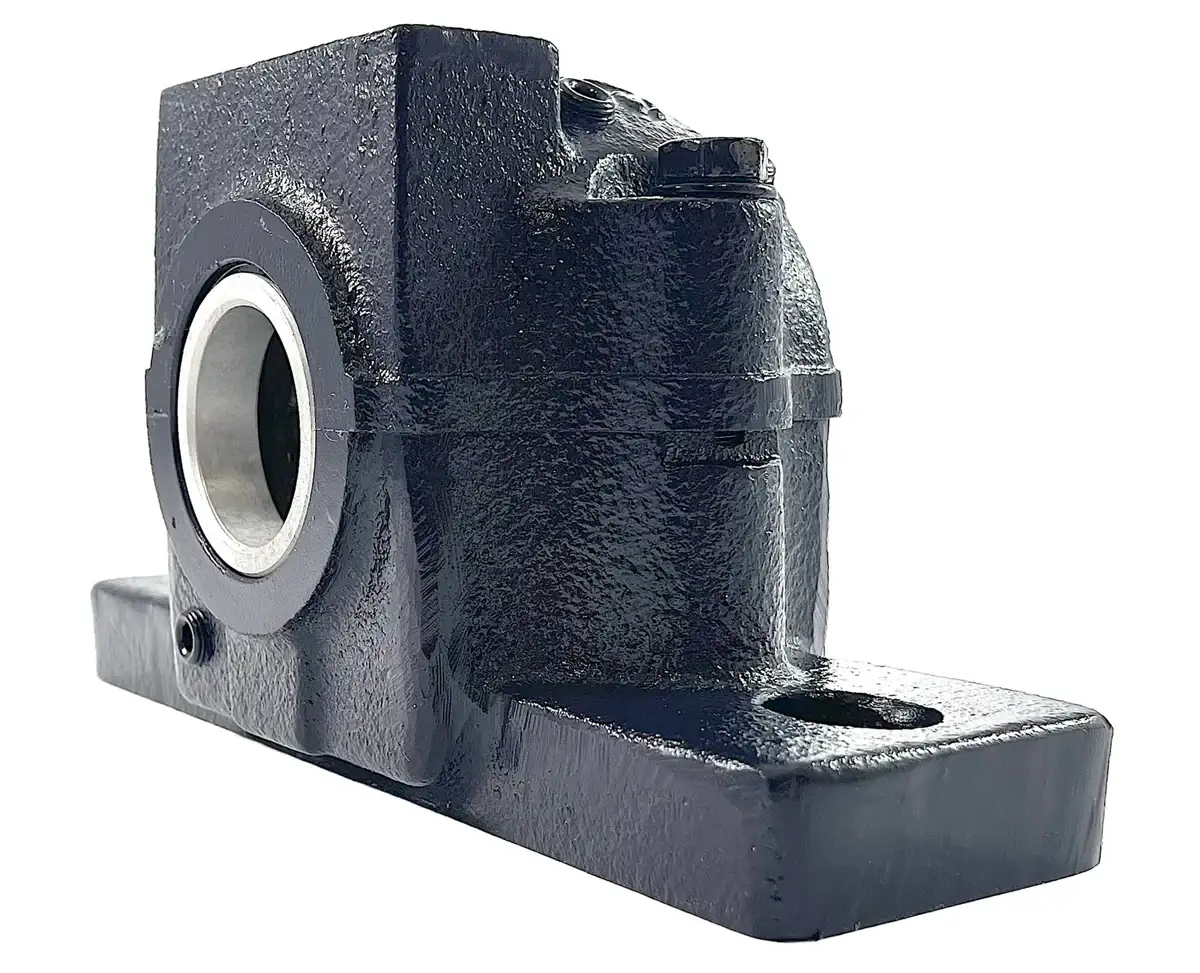

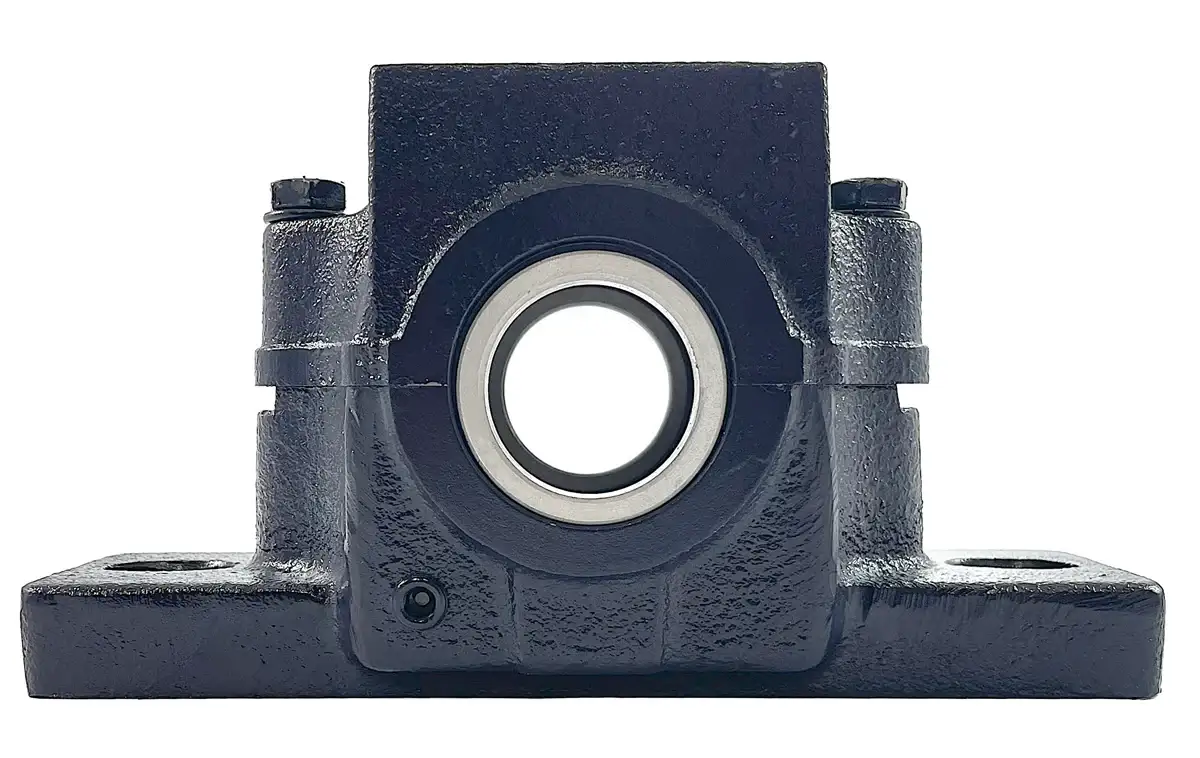

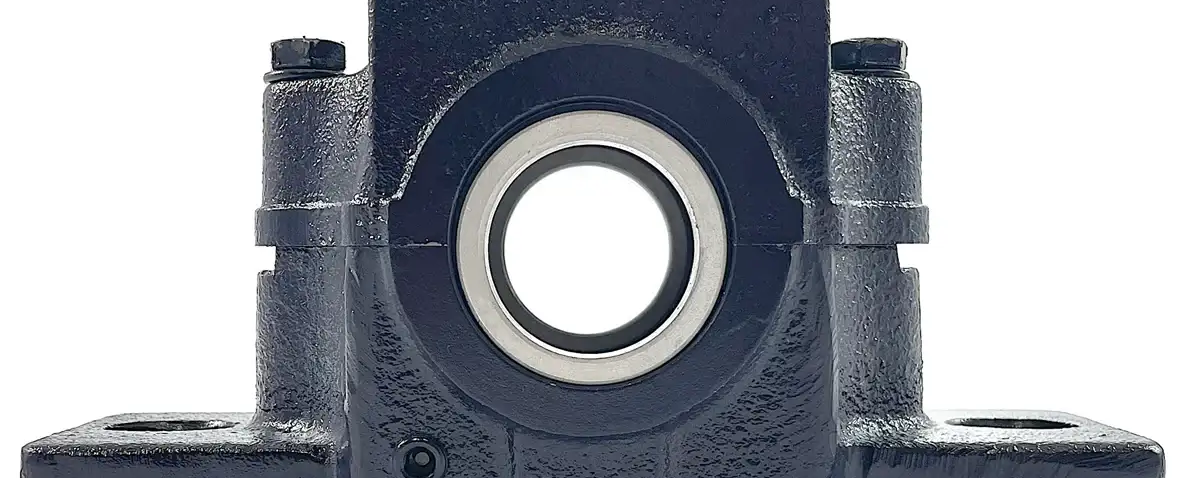

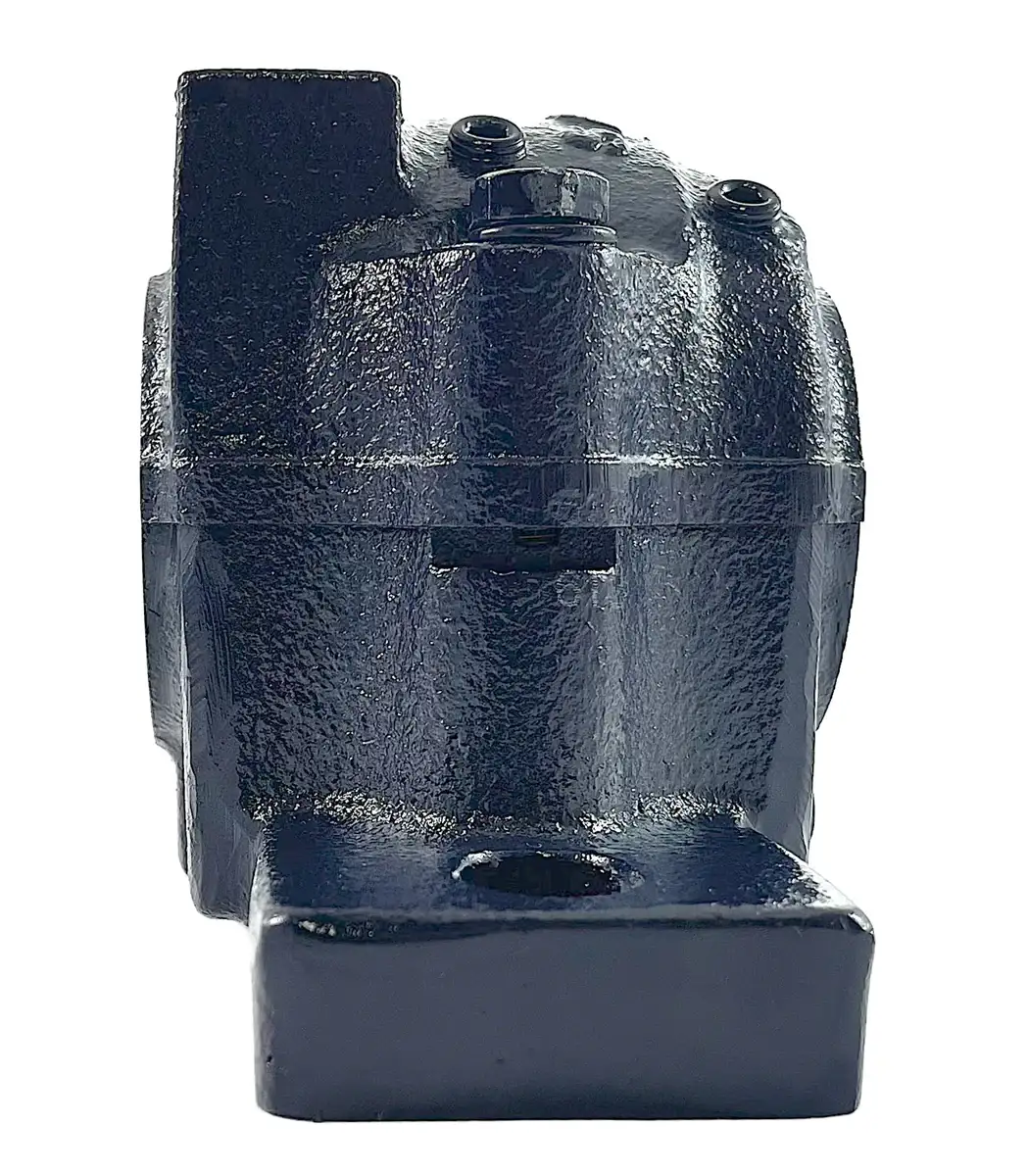

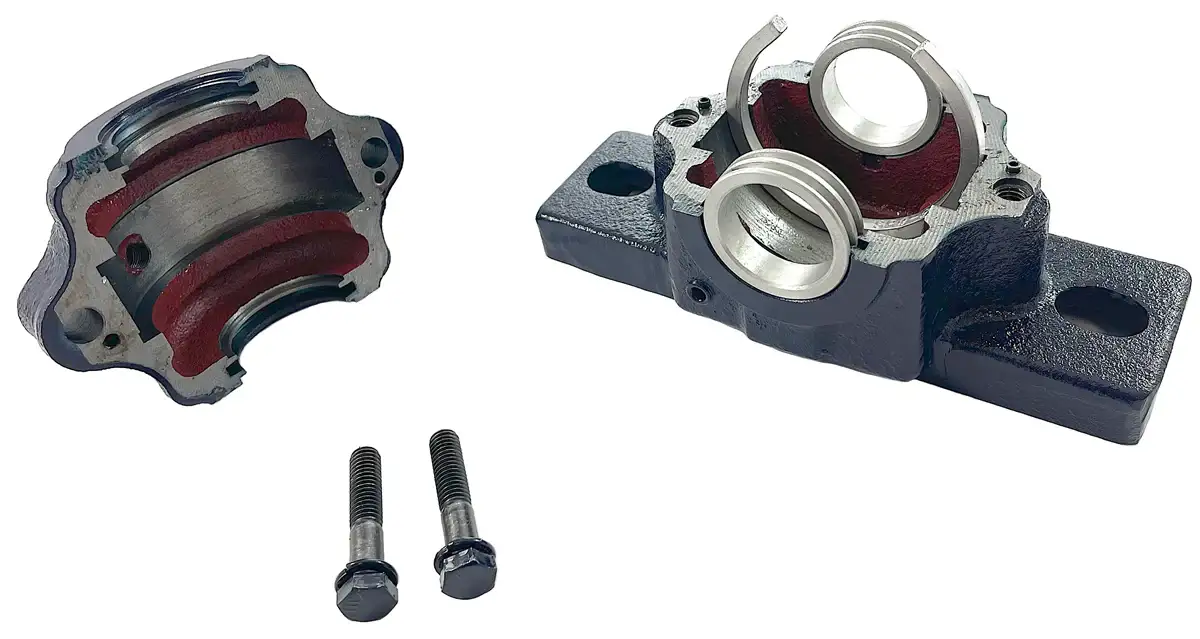

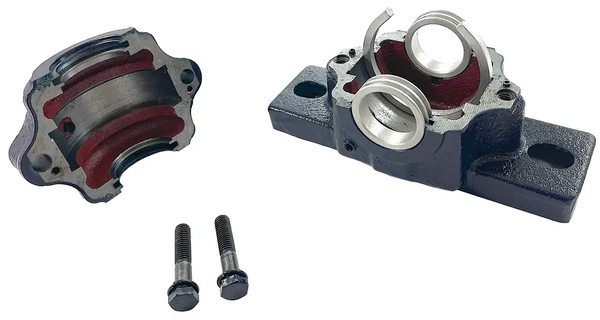

SAF 509 housings are designed for some extreme industrial applications; this housing is a split pillow block housing made from cast iron for spherical roller bearings. The split design of a SAF509 housing allows for easy mounting and maintenance, while the heavy-duty construction permits this bearing to operate in higher-load applications compared to other types. Our SAF509 bearing is cast from a high-grade cast and is designed with a reinforced webbed base for better heat distribution and prevention of over-tightening. Additionally, the housing features two threaded plugged holes on top for a grease fitting and various testing equipment, while the bottom faces of the housing have a drain plug on each side. SAF509 housings are commonly found in applications such as; steel mills, queries, and large drive or conveying applications. For additional information or to get a quote on our SAF 509 housing, contact our customer support team, and we will be happy to assist you!

SAF 509 Housing Dimensions

• Housing #: SAF509
• Dimension (D): 85mm
• Dimension (a): 8-1/4"
• Dimension (b): 2-3/8"
• Dimension (c): 13/16"
• Dimension (h): 2-1/4"
• Dimension (W): 4-3/8"
• Dimension (M - max.): 7"
• Dimension (M - min.): 6-1/4"
• Dimension (S): 1/2"
• Cap Bolt Size: 3/8" - 16
• Style: 1

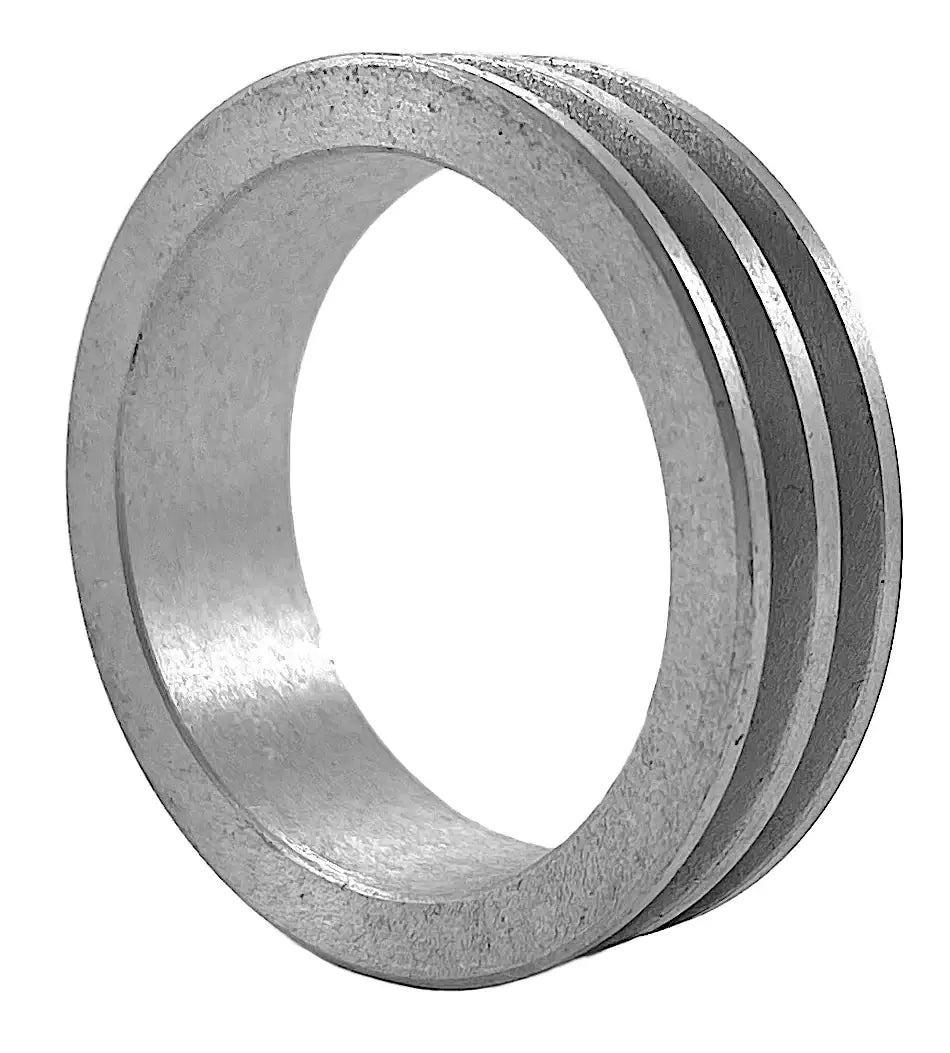

• Labyrinth Seal Ring: LER17

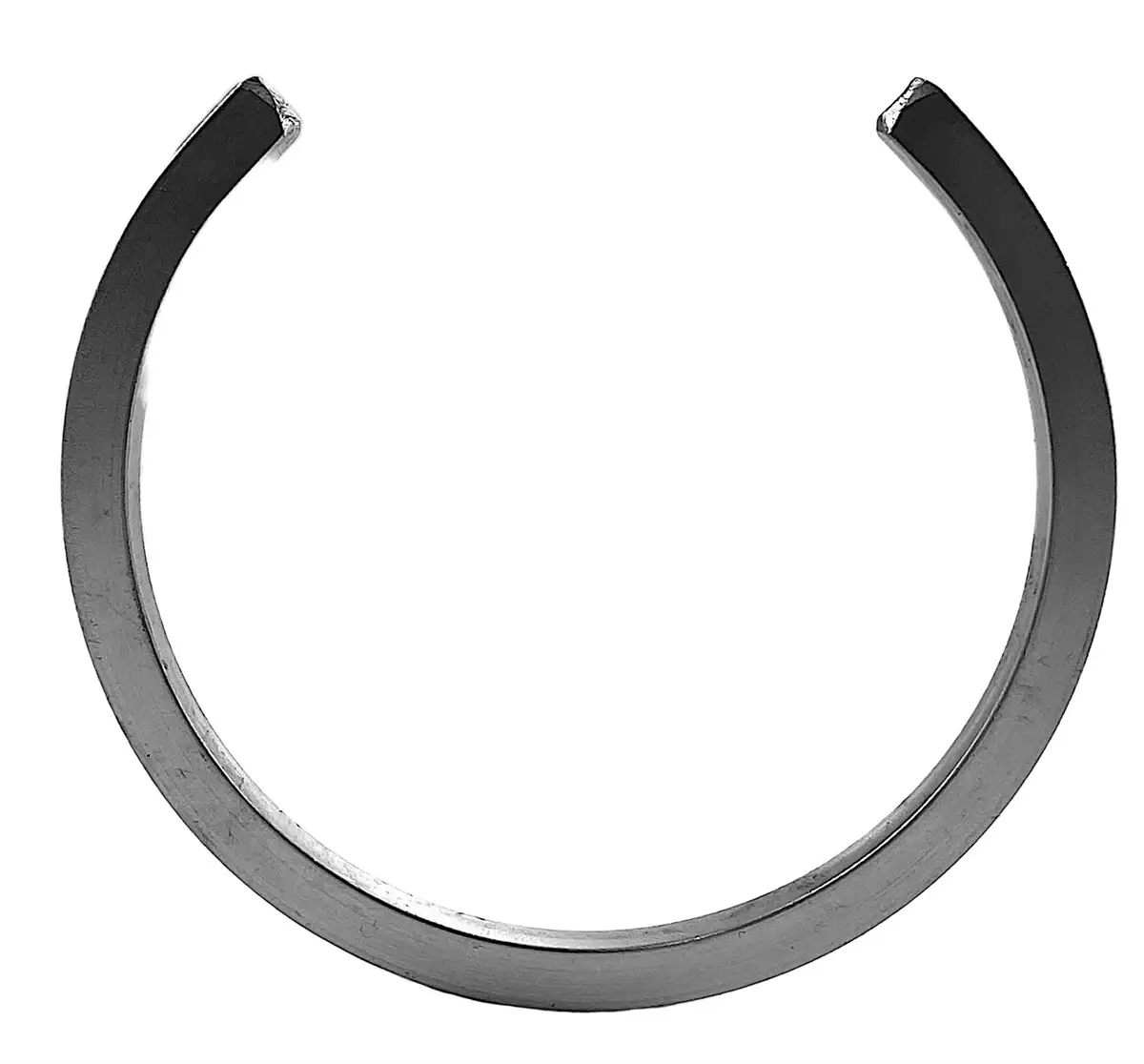

• Stabilizing Ring: SR9-9
• Weight (LBS): 8.80
