FSAF518 Housing | FSAF 518 Split Pillow Block Housing

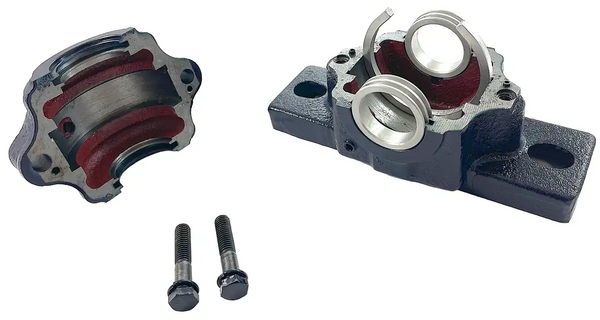

FSAF 518 housings are designed for some extreme industrial applications; this housing is a split pillow block housing made from cast iron for spherical roller bearings. The split design of a FSAF518 housing allows for easy mounting and maintenance, while the heavy-duty construction permits this bearing to operate in higher-load applications compared to other types. Our FSAF518 bearing is cast from a high-grade cast and is designed with a reinforced webbed base for better heat distribution and prevention of over-tightening. Additionally, the housing features two threaded plugged holes on top for a grease fitting and various testing equipment, while the bottom faces of the housing have a drain plug on each side. FSAF518 housings are commonly found in applications such as; steel mills, queries, and large drive or conveying applications. For additional information or to get a quote on our FSAF 518 housing, contact our customer support team, and we will be happy to assist you!

FSAF 518 Housing Dimensions

• Housing #: FSAF518
• Dimension (D): 160mm
• Dimension (a): 13-3/4"
• Dimension (b): 3-7/8"
• Dimension (c): 1-5/16"
• Dimension (h): 4"
• Dimension (W): 7-3/4"
• Dimension (M - max.): 11-5/8"
• Dimension (M - min.): 10-3/8"
• Dimension (n): 2 1/8"
• Dimension (S): 5/8"
• Cap Bolt Size: 5/8-11
• Style: 2
• Labyrinth Seal Ring: LER188
• Stabilizing Ring: SR18-15
• Weight (LBS): 38.00
