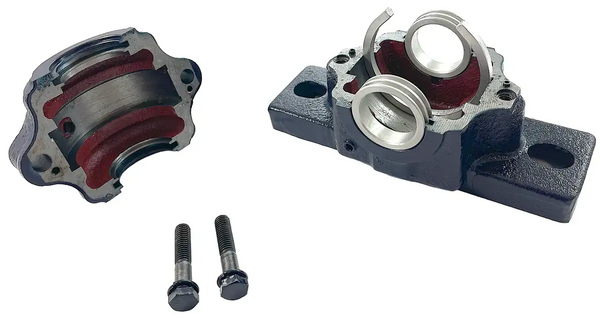

FSAF 513 housings are designed for some extreme industrial applications; this housing is a split pillow block housing made from cast iron for spherical roller bearings. The split design of a FSAF513 housing allows for easy mounting and maintenance, while the heavy-duty construction permits this bearing to operate in higher-load applications compared to other types. Our FSAF513 bearing is cast from a high-grade cast and is designed with a reinforced webbed base for better heat distribution and prevention of over-tightening. Additionally, the housing features two threaded plugged holes on top for a grease fitting and various testing equipment, while the bottom faces of the housing have a drain plug on each side. FSAF513 housings are commonly found in applications such as; steel mills, queries, and large drive or conveying applications. For additional information or to get a quote on our FSAF 513 housing, contact our customer support team, and we will be happy to assist you!
Housing #: FSAF513
FSAF 513 Housing Dimensions
Housing #: FSAF513
- Dimension (D): 120mm
- Dimension (a): 11"
- Dimension (b): 3-1/8"
- Dimension (c): 1"
- Dimension (h): 3"
- Dimension (W): 5-15/16"
- Dimension (M - max.): 9-1/2"
- Dimension (M - min.): 8-1/8"
- Dimension (n): 2"
- Dimension (S): 1/2"
- Cap Bolt Size: 1/2" - 13
- Style: 2
- Labyrinth Seal Ring: LER29
- Stabilizing Ring: SR13-0
- Weight (LBS): 18.30
Feature
- Premium Quality Split Housing
- Interchanges With Other Brands
- Features Heat Dissipating Webs
- Includes Two Seal Rings
- Includes Stabilizing Ring
- Reinforced Base
- Housing #: FSAF513
- Dimension (D): 120mm
- Dimension (a): 11"
- Dimension (b): 3-1/8"
- Dimension (c): 1"
- Dimension (h): 3"
- Dimension (W): 5-15/16"
- Dimension (M - max.): 9-1/2"
- Dimension (M - min.): 8-1/8"
- Dimension (n): 2"
- Dimension (S): 1/2"
- Cap Bolt Size: 1/2" - 13
- Style: 2
- Labyrinth Seal Ring: LER29
- Stabilizing Ring: SR13-0
- Weight (LBS): 18.30
