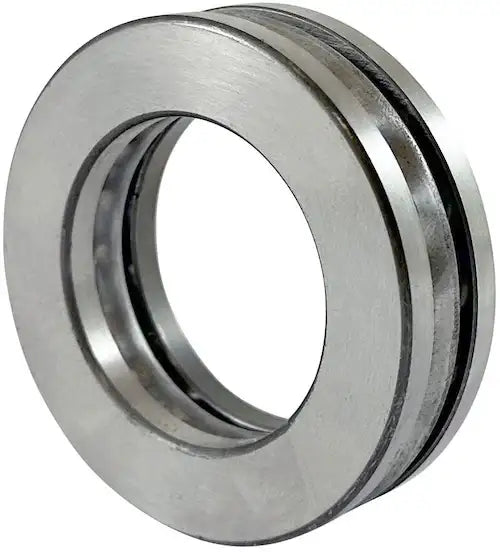

917 Thrust Ball Bearing | 917 Thrust Bearing - 85mm
SKU: 2783-917-BEARING
Only 0 left in stockItem is out of stock
Item is unavailable
917 Thrust Ball Bearing | 917 Thrust Bearing - 85mm Features
917 Thrust Ball Bearing | 917 Thrust Bearing - 85mm Specifications
The 917 thrust bearing is a single direction, thrust ball bearing with a 85mm bore and grooved races. What separates this bearing from some of the other 917 bearings on the market is its precision-made components, 52100 thru-hardened steel rings and balls, and high-quality, low-carbon steel band. This bearing is also supplied with light oil lubrication from the factory and features an oil hole in the band for relubricating. Thrust ball bearings are rotary bearings designed to support a predominately axial load. 917 bearings are composed of bearing balls that are supported in a ring and allow for use in applications with low thrust and little axial load. For additional information or to get a quote on 917 thrust ball bearings, contact our customer support team, and we will be happy to assist you!
917 Thrust Bearing Dimensions
- Bearing Part #: 917
- Dimension (A): 85mm
- Dimension (A): 3.3465"
- Dimension (A1): 3.354"
- Dimension (B): 125mm
- Dimension (B): 4.921"
- Dimension (H): 30.5mm
- Dimension (H): 1.201"
- Number of Balls: 18
- Ball Size: 0.625"
- Static Load Rating: 54400 LBS
- Dynamic Load Rating: 26800 LBS
- Speed Limit: 2375 RPM
- Weight: 2.60 LBS
- Bearing Part #: 917
- Dimension (A): 85mm
- Dimension (A): 3.3465"
- Dimension (A1): 3.354"
- Dimension (B): 125mm
- Dimension (B): 4.921"
- Dimension (H): 30.5mm
- Dimension (H): 1.201"
- Number of Balls: 18
- Ball Size: 0.625"
- Static Load Rating: 54400 LBS
- Dynamic Load Rating: 26800 LBS
- Speed Limit: 2375 RPM
- Weight: 2.60 LBS
