24BTB14H Sprocket
Note:
Custom Cut to Length Chain Also Available
SKU: 24BTB14H-SPROCKET
Item is in stockOnly 0 left in stockItem is out of stock
Item is unavailable
Login to Request a Quote
Buy it With:
24BTB14H Sprocket Features
24BTB14H Sprocket Specifications

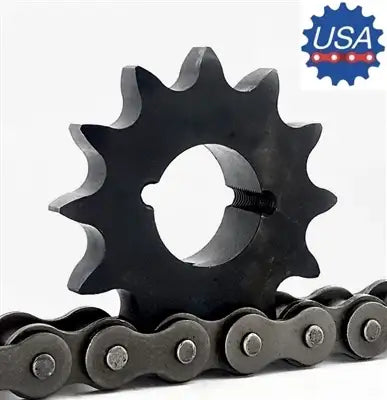

This 24BTB14H sprocket is a durable, high quality, and precision taper bushed sprocket with 14 teeth that is manufactured out of high-quality steel. It uses a 2517 taper bushing and is manufactured in accordance with ISO standards, which ensures proper contact between the 24B roller chain and sprocket thus preventing premature wear or breakage. The benefit of using a 24BTB14H taper bushed style sprocket is that a bushing has a broad range of bore sizes and are typically in-stock. For more information or to get a quote please contact us and we will be happy to assist you.
24BTB14H Sprocket Dimensions
- Size: 24BTB14H
- Tooth Count: 14
- Pitch Diameter: 171.22mm
- Bushing Size: 2517
- Maximum Bushing Bore: 63.50mm
- Dimension (L): 44.45mm
- Dimension (C): 107.90mm
- Sprocket Weight: 3.54 kg
- Size: 24BTB14H
- Tooth Count: 14
- Pitch Diameter: 171.22mm
- Bushing Size: 2517
- Maximum Bushing Bore: 63.50mm
- Dimension (L): 44.45mm
- Dimension (C): 107.90mm
- Sprocket Weight: 3.54 kg
