Module 6 Gear Rack Mounting Aid (60X60X241) C45K Material
Note:
Custom Cut to Length Chain Also Available
SKU: 246-600-00-AID
Item is in stockOnly 0 left in stockItem is out of stock
Item is unavailable
Login to Request a Quote
Module 6 Gear Rack Mounting Aid (60X60X241) C45K Material Features
Module 6 Gear Rack Mounting Aid (60X60X241) C45K Material Specifications

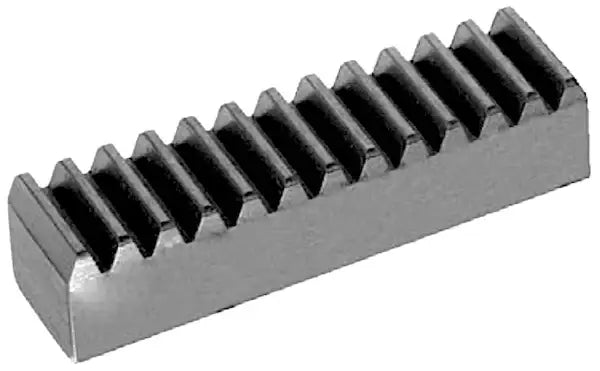

The module 6 gear rack mounting aid makes it easy to align and adequately space your gear racks! Our precision mounting tool is made from high-quality C45K carbon steel material with an 8d25 tooth quality and is a 13-tooth section for perfect form factor and ensure proper mounting. We also supply a full range of metric gear racks and metric spur gears! For additional information, contact our customer service team; we will gladly assist you.
Module 6 Gear Rack Mounting Aid Dimensions
- Part #: 24660000
- Module: 6
- Pitch: 18.85mm
- Dimension (b): 60mm
- Dimension (H): 60mm
- Dimension (h): 54.0mm
- Length (L): 241mm
- Material: C45K
- Weight: 6.14KG
- Part #: 24660000
- Module: 6
- Pitch: 18.85mm
- Dimension (b): 60mm
- Dimension (H): 60mm
- Dimension (h): 54.0mm
- Length (L): 241mm
- Material: C45K
- Weight: 6.14KG
