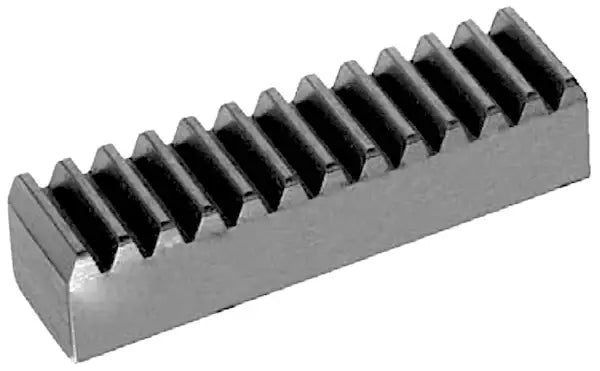

Module 3 Gear Rack Mounting Aid (25X25X120) 16MnCr5 Material
Note:
Custom Cut to Length Chain Also Available
SKU: 243-680-00-AID
Item is in stockOnly 0 left in stockItem is out of stock
Item is unavailable
Login to Request a Quote
Module 3 Gear Rack Mounting Aid (25X25X120) 16MnCr5 Material Features
Module 3 Gear Rack Mounting Aid (25X25X120) 16MnCr5 Material Specifications
The module 3 gear rack mounting aid makes it easy to align and adequately space your gear racks! Our precision mounting tool is made from high-quality 16MnCr5 steel material with a 7h25 tooth quality and is a 13-tooth section for perfect form factor and ensure proper mounting. We also supply a full range of metric gear racks and metric spur gears! For additional information, contact our customer service team; we will gladly assist you.
Module 3 Gear Rack Mounting Aid Dimensions
- Part #: 24368000
- Module: 3
- Pitch: 9.42mm
- Dimension (b): 25mm
- Dimension (H): 25mm
- Dimension (h): 22.0mm
- Length (L): 120mm
- Material: 16MnCr5
- Weight: 0.518KG
- Part #: 24368000
- Module: 3
- Pitch: 9.42mm
- Dimension (b): 25mm
- Dimension (H): 25mm
- Dimension (h): 22.0mm
- Length (L): 120mm
- Material: 16MnCr5
- Weight: 0.518KG
