Power Transmission > Gears and Gear Racks > Gear Rack Installation Mounting Aid
Module 3 Gear Rack Mounting Aid (25X30X120) C45K Material
Note:
Custom Cut to Length Chain Also Available
SKU: 243-600-00-AID
Item is in stockOnly 0 left in stockItem is out of stock
Item is unavailable
Login to Request a Quote
Module 3 Gear Rack Mounting Aid (25X30X120) C45K Material Features
Module 3 Gear Rack Mounting Aid (25X30X120) C45K Material Specifications

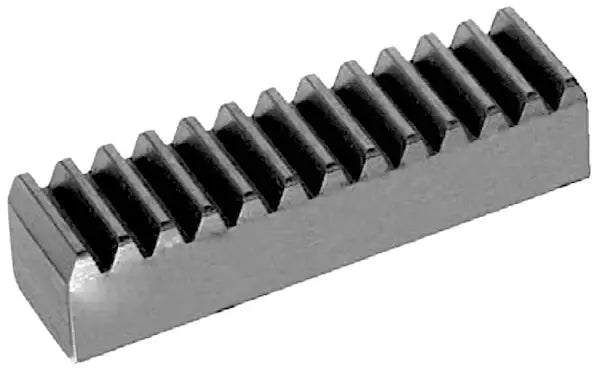

The module 3 gear rack mounting aid makes it easy to align and adequately space your gear racks! Our precision mounting tool is made from high-quality C45K carbon steel material with an 8d25 tooth quality and is a 13-tooth section for perfect form factor and ensure proper mounting. We also supply a full range of metric gear racks and metric spur gears! For additional information, contact our customer service team; we will gladly assist you.
Module 3 Gear Rack Mounting Aid Dimensions
- Part #: 24360000
- Module: 3
- Pitch: 9.42mm
- Dimension (b): 25mm
- Dimension (H): 30mm
- Dimension (h): 27.0mm
- Length (L): 120mm
- Material: C45K
- Weight: 0.637KG
- Part #: 24360000
- Module: 3
- Pitch: 9.42mm
- Dimension (b): 25mm
- Dimension (H): 30mm
- Dimension (h): 27.0mm
- Length (L): 120mm
- Material: C45K
- Weight: 0.637KG
